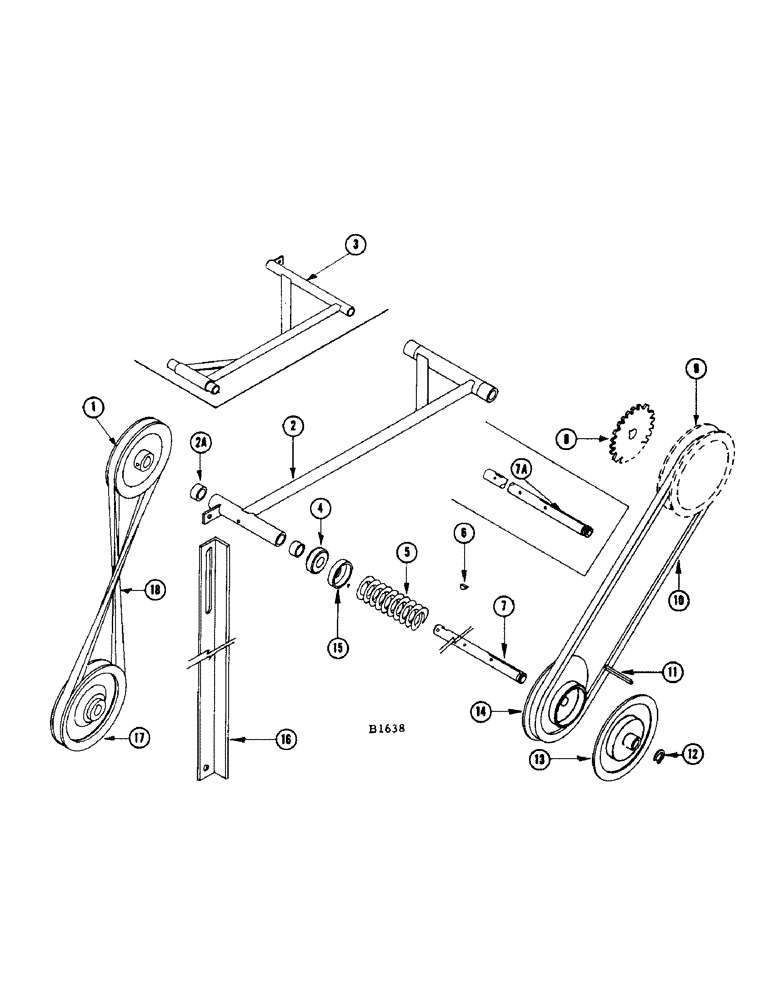

Запчасти Case IH 960 (028) - PICKUP DRIVE JACKSHAFT, 4 AND 5 BELT (58) - ATTACHMENTS/HEADERS

1

F77186

SHEAVE - rear roller drive

1шт.

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

2

F81886

SUPPORT - pickup jackshaft (10 ft. header)

1шт.

2a

A31082

BUSHING

4шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

2шт.

F81894

SUPPORT - pickup jackshaft (13 ft. header - includes ref. 2A)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

2шт.

F83199

SUPPORT - pickup jackshaft (14 ft. header - includes ref. 2A)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

2шт.

3

F84957

SUPPORT - pickup jackshaft (13 ft. and 14 ft. header - 5 belt) Includes ref. 2A

1шт.

4

O1664FH

COLLAR - jackshaft

1шт.

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

5

F9021

VALVE SPRING

SPRING - variable drive sheaves

1шт.

6

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 1 to jackshaft #A, 1/4" x 7/8", HT

1шт.

7

F17675

JACKSHAFT - 10 ft. header

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" str.

1шт.

F17686

JACKSHAFT - 13 ft. header

1шт.

2191

FUEL FILTER

FITTING - grease 1/8" str.

1шт.

F20066

JACKSHAFT - 14 ft. header

1шт.

2191

FUEL FILTER

FITTING - grease 1/8" str.

1шт.

7a

F22277

JACKSHAFT - 13 ft. and 14 ft. header - 5 belt

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

8

F81888

SPROCKET - (22T) on reel drive jackshaft, drives conveyor (Replaced by F82850 when stock is exhausted)

1шт.

F82850

DRIVEN SPROCKET

SPROCKET - (22T) reel drive jackshaft (Replaces F81888 when stocks are exh.) Before #8358001

1шт.

132-126

COTTER PIN,7/32" x 2"

Pin, Split (Cotter), 7/32" x 2"

1шт.

F92664

DRIVEN SPROCKET

SPROCKET - (22T) reel drive jackshaft, #8358001 and after

1шт.

9

F1313

SHEAVE

HALF - reel drive

1шт.

F1572

SHEAVE HALF - reel drive

1шт.

10

F16745

V-BELT

"V" BELT - jackshaft drive

1шт.

11

F8896

KEY - variable speed, Serial Range: sheaves-jackshaft

1шт.

12

A26949

RING, SNAP

SNAP RING - jackshaft

1шт.

13

F1313

SHEAVE

HALF - variable speed (Drives jackshaft) Driven

1шт.

14

F1572

SHEAVE HALF - variable speed (Drives jackshaft) Driven

1шт.

15

F16078

WASHER - cup, for ref. 5 spring

1шт.

16

F17678

BRACKET - tightener, jackshaft drive

1шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

1шт.

129-123

NUT,3/8"-24, G5

1шт.

195-104

WASHER,3/8"

- flat 3/8"

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

129-122

NUT,5/16"-24, G5

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

17

F81889

SHEAVE - (8" O.D.) rear roller drive, driven (L.H. end)

1шт.

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

135-360

PULLEY

PIN - Driv-Loc type "A" 1/4" x 1-3/4"

1шт.

18

F16744

V-BELT

"V" BELT - rear roller drive

1шт.
