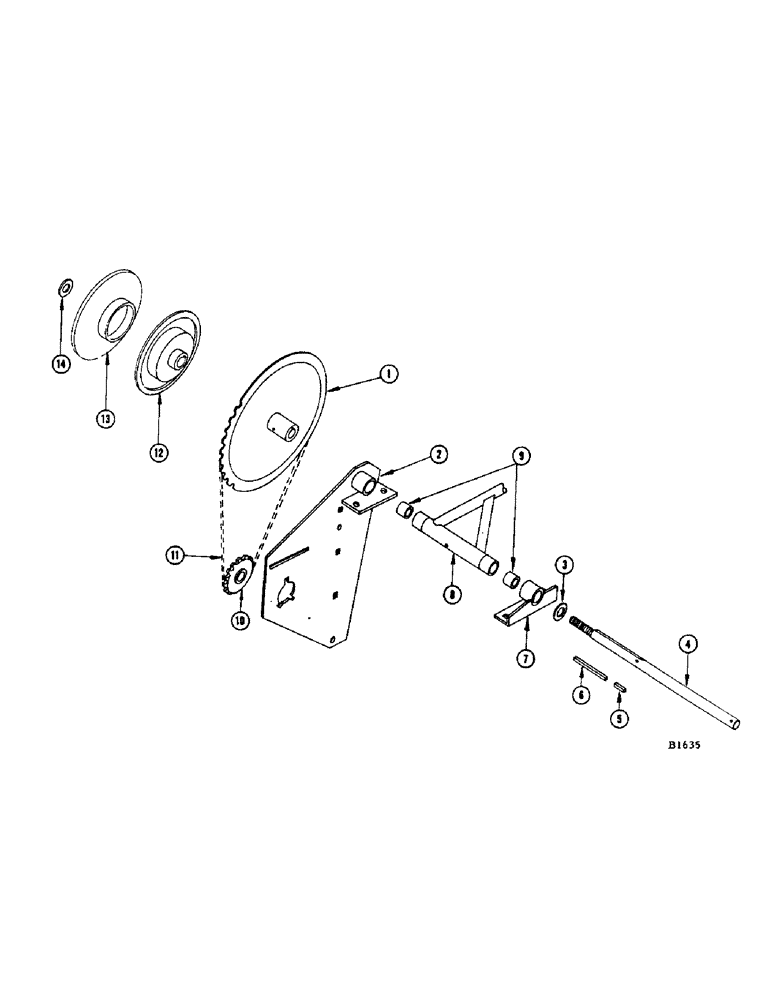

Запчасти Case IH 960 (018) - REEL DRIVE JACKSHAFT, GRAIN COMBINES (58) - ATTACHMENTS/HEADERS

1

F81760

SPROCKET - reel drive (60T) 19-31 RPM w/F82898 (15T) and 28-45 RPM w/F82850 (22T) sprockets

1шт.

F81832

SPROCKET - reel drive (86T) 13-21 RPM w/F82898 (15T) sprocket - slow reel speed attachment

1шт.

2

F91934

BRACKET - L.H. outer pivot (Replaces F83333 when exh.)

1шт.

F83333

BRACKET - L.H. outer pivot (Replaced by F91934)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-510) Nut (25-114) L.W. (92-4)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) Nut (25-116) L.W. (92-6)

1шт.

3

O906B

WASHER

- jackshaft

1шт.

4

F15845

JACKSHAFT - reel drive

1шт.

135-756

PIN - drive 7/32" x 1-1/2"

2шт.

129-128

NUT,3/4"-16, G5

- 3/4" - 16 F.H.N.F.

1шт.

5

O1045B

KEY

- reel driven, Serial Range: sprockets-jackshaft

1шт.

6

F8896

KEY - reel driven, Serial Range: sheaves-jackshaft

1шт.

7

F81277

BRACKET

- L.H. inner pivot (10 ft. header) (Exh. then use F89281)

1шт.

F89281

BRACKET

- L.H. inner, pivot (10 ft. header) (Replaces F81277 when exh.)

1шт.

F40563

SPACER - mounting angle

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) Nut (25-115) L.W. (92-5)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115) L.W. (92-5)

1шт.

F91935

BRACKET - L.H. inner pivot (13', 14' and 16' header)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) Nut (25-115) L.W. (92-5)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115) L.W. (92-5)

1шт.

8

F82527

ARM - reel support, L.H. (Before #8311400)

1шт.

F91772

ARM - reel support, L.H. (#8311400 and after)

1шт.

9

A31082

BUSHING

2шт.

FITTING - grease 1/4" - 28 thrd. (219-8) Ref. 8 arm

1шт.

10

F82850

DRIVEN SPROCKET

SPROCKET - (22T) reel drive (On main header drive jackshaft) Before #8358001

1шт.

F92664

DRIVEN SPROCKET

SPROCKET - (22T) reel drive (#8358001 and after) (Exh. then use F89318)

1шт.

F89318

SPROCKET ASSY.

SPROCKET - reel drive (#8358001 and after) (Replaces F92664 when exh.)

1шт.

F82898

SPROCKET ASSY.

SPROCKET - (15T) reel drive (On main header drive jackshaft) Before #8358001

1шт.

F92661

SPROCKET - (15T) reel drive (#8358001 and after) (Exh. then use F89317)

1шт.

F89317

SPROCKET - reel drive (#8358001 and after) (Replaces F92661 when exh.)

1шт.

11

F17456

X

CHAIN - drives reel jackshaft (NSS - see chain page)

1шт.

F17924

X

CHAIN - drives reel jackshaft (NSS - see chain page)

1шт.

F17514

X

CHAIN - short extension (NSS - see chain page)

1шт.

F17484

X

CHAIN - short extension, slow reel speed att. (See chain page)

1шт.

12

F1313

SHEAVE

HALF - reel drive

1шт.

13

F1572

SHEAVE HALF - reel drive

1шт.

FITTING - grease 1/8" str. (219-1)

1шт.

14

F20276

WASHER - L.H. end of jackshaft

1шт.
