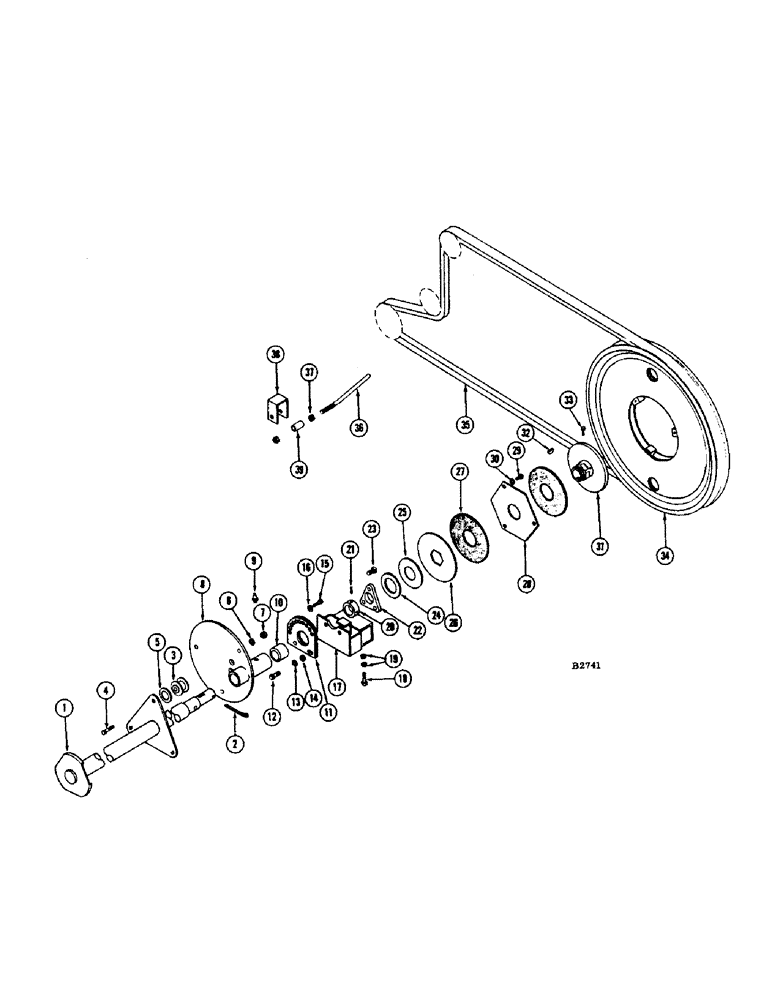

Запчасти Case IH 960 (017A) - HART-CARTER PICKUP REEL DRIVE (58) - ATTACHMENTS/HEADERS

1

F94169

SHAFT - drive end

1шт.

2

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

3

F53435

BEARING

ROLLER - bearing

6шт.

4

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

5

F53438

WASHER - roller bearing bolt

6шт.

6

92-6

LOCK WASHER,3/8"

6шт.

7

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

8

F94161

FRAME - eccentric roller

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

10

F53443

BEARING

2шт.

11

F94171

PLATE - eccentric adjusting

2шт.

12

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

4шт.

13

92-7

LOCK WASHER,7/16"

4шт.

14

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

4шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

F94170

BRACKET - eccentric adjusting

2шт.

18

85-820

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

SCREW - 1/2" x 1-1/4" N.C. sq. hd. set

2шт.

19

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NC hex

4шт.

20

F53439

COLLAR

2шт.

21

178-816

SCREW - 3/8" x 1/4" cup pt. socket hd. set

4шт.

22

F2187

NUT - adjusting

1шт.

23

85-816

SET SCREW,Sq Hd, 1/2"-13 x 1"

SCREW - 1/2" x 1" N.C. sq. hd. cup pt. set

3шт.

24

F53449

WASHER -

1шт.

25

F53446

WASHER - spring

5шт.

26

F53447

WASHER - split flat

1шт.

27

F53448

WASHER - friction

2шт.

28

F53445

WASHER - friction plate

1шт.

29

61-510

HEX SOC SCREW,5/16"-18 x 5/8"

SCREW - 5/16" x 5/8" N.C. socket hd. cap

3шт.

30

92-5

LOCK WASHER,5/16"

3шт.

31

F2188

HUB - slip clutch

1шт.

32

126-25

WOODRUFF KEY,#B, 5/16" x 1"

KEY - 5/16" x 1" Woodruff

1шт.

33

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - 5/16" x 3/8" N.C. socket hd. set

2шт.

34

F94177

SHEAVE - slip clutch

1шт.

35

O4402CS

V-BELT 170.00" L, Reel drive 170.00" L

1шт.

36

F53451

STRIPPER - reel drive belt

1шт.

37

131-168

LOCK NUT,1/2"-20, GA

LOCKNUT - 1/2" N.F. hex.

2шт.

38

F53450

BRACKET - stripper mounting

1шт.

39

O2585AB

SPACER - belt stripper (Not used with hydraulic reel lift arm)

1шт.
