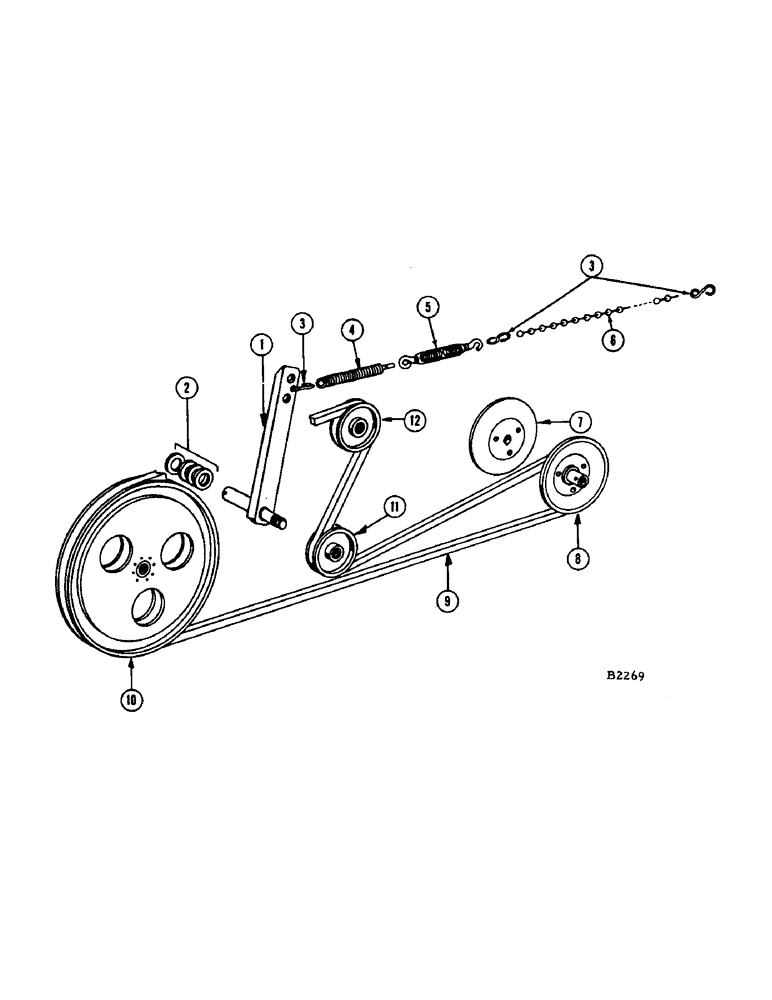

Запчасти Case IH 960 (016) - REEL DRIVE (58) - ATTACHMENTS/HEADERS

1

F83160

BRACKET - reel drive tightener

1шт.

NUT - 3/8" N.F. hex. (25-1110) L.W. (92-10)

1шт.

2

B18275

WASHER

- bracket

4шт.

3

O5481HT

"S" HOOK - tightener chain (Grain combine)

3шт.

F20641

"S" HOOK - tightener chain (960 special)

3шт.

4

O1158FS1

SPRING - reel belt tightener

1шт.

5

F10915

TURNBUCKLE - reel belt

1шт.

6

O3003CK

CHAIN - reel belt tightener (Grain combine)

1шт.

F20640

CHAIN - reel belt tightener (960 special)

1шт.

7

F1313

SHEAVE

HALF - reel drive (On jackshaft)

1шт.

8

F1572

SHEAVE HALF - reel drive (On jackshaft)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" str.

1шт.

9

F16633

BELT

Reel Drive

1шт.

O4402CS

V-BELT 170.00" L, Reel drive (960 special - fixed sheave reel drive) 170.00" L

1шт.

10

F82542

SHEAVE

- reel drive, driven

1шт.

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

113-114

BOLT - 5/8" x 2-1/2" N.F. hex.

1шт.

F82845

SHEAVE - reel drive, driven (960 special - fixed sheave reel drive)

1шт.

114-414

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

Hex, 1/2"-20 x 2 3/4", G5

1шт.

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

11

F13064

SCREW

SHEAVE - tightener, lower (Replaces F11626)

1шт.

F11626

BEARING

SHEAVE - replaced by F13064 when exhausted

1шт.

12

F6474

PULLEY

SHEAVE - tightener, upper

1шт.

141040

BOLT - 5/8" x 2-1/2" N.F. hex.

1шт.
