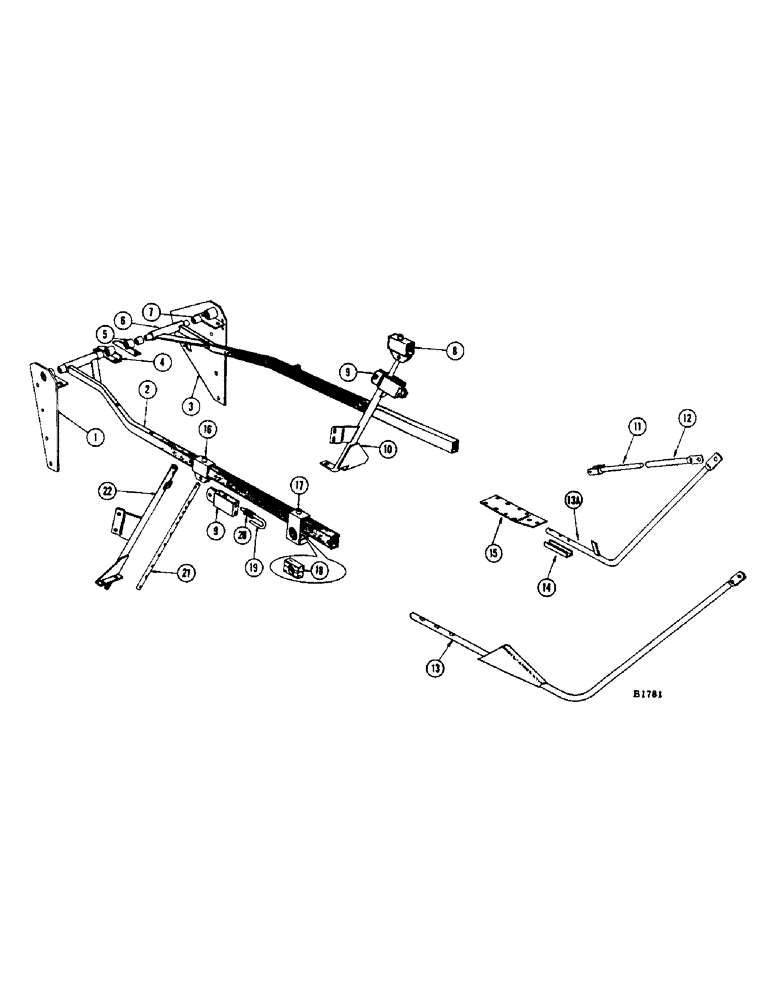

Запчасти Case IH 960 (012) - REEL SUPPORTS (58) - ATTACHMENTS/HEADERS

1

F82964

BRACKET - R.H. outer, pivot (Grain combine)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) Nut (25-114) L.W. (92-4)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) Nut (25-116) L.W. (92-6)

1шт.

F83022

BRACKET - R.H. outer, pivot (960 special)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) Nut (25-114) L.W. (92-4)

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) Nut (25-114) L.W. (92-4)

1шт.

BOLT - 1/4" x 7/8" N.F. hex. (14-414) Nut (25-114) L.W. (92-4)

1шт.

2

F82529

ARM - reel, R.H. (Before #8311400) std.

1шт.

F91774

ARM - reel, R.H. (#8311400 and after) std.

1шт.

F83768

ARM - reel, R.H. (54-7/8" long) Hydraulic reel lift

1шт.

F91770

ARM - reel, R.H. (58-7/8" long) Hydraulic reel lift

1шт.

3

F91934

BRACKET - L.H. outer (Grain) Replaces F83333 when exh.

1шт.

F83333

BRACKET - L.H. outer, pivot (Grain) Replaced by F91934

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) Nut (25-114) L.W. (92-4)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) Nut (25-116) L.W. (92-6)

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

1шт.

F83329

BRACKET - L.H. outer, pivot (960 special)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) Nut (25-114) L.W. (92-4)

1шт.

BOLT - 1/4" x 1" rhd. sq. nk. (11-416) Nut (25-104) L.W. (92-4)

1шт.

4

F81279

BRACKET - R.H. inner, (10' header)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) Nut (25-115) L.W. (92-5)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115) L.W. (92-5)

1шт.

F91933

BRACKET - R.H. inner, pivot (13', 14' and 16' header)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) Nut (25-115) L.W. (92-5)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115) L.W. (92-5)

1шт.

F83328

BRACKET - R.H. inner, pivot (960 special - 13 ft. & 16 ft.)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) Nut (25-115) L.W. (92-5)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115) L.W. (92-5)

1шт.

5

F81277

BRACKET

- L.H. inner, pivot (10 ft. header) (Exh. then use F89281)

1шт.

F89281

BRACKET

- L.H. inner, pivot (10 ft. header) (Replaces F81277 when exh.)

1шт.

F40563

SPACER - mounting angle

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) Nut (25-115) L.W. (92-5)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115) L.W. (92-5)

1шт.

F91935

BRACKET - L.H. inner, pivot (13', 14' and 16' header)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) Nut (25-115) L.W. (92-5)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115) L.W. (92-5)

1шт.

F83330

BRACKET - L.H. inner, pivot (960 special)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) Nut (25-115) L.W. (92-5)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115) L.W. (92-5)

1шт.

6

F82527

ARM - reel, L.H. variable speed (Before #8311400)

1шт.

F91772

ARM - reel, L.H. variable speed (#8311400 and after)

1шт.

F83766

ARM - reel, L.H. (54-7/8" long) variable speed - hydraulic reel lift

1шт.

F91768

ARM - reel, L.H. (58-7/8" long) variable speed - hydraulic reel lift

1шт.

7

A31082

BUSHING

- (Incl. w/F82527, F91772, F83766 and F91768)

2шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (Incl. w/F82527, F91772, F83766 and F91768) 1/4"-28 x .56" lg, Self-Tap

1шт.

6

F83777

ARM - reel, L.H. (960 special - fixed speed reel drive) Before #8311400

1шт.

F91778

ARM - reel, L.H. (960 special - fixed speed reel drive - #8311400 and after) or (960 special - fixed speed hydraulic reel lift - #8334601 and after)

1шт.

8

F82535

BRACKET - reel support, L.H.

1шт.

SCREW - 3/8" x 1" N.C. sq. hd. fl. pt. set (181-647)

1шт.

9

F82537

SUPPORT - reel latch pin

2шт.

10

F82532

SUPPORT - L.H., reel

1шт.

11

F83942

YOKE - with rod

2шт.

BOLT - 5/16" x 2-1/2" N.C. hex. (113-111) Locknut (131-4)

2шт.

12

F21001

PIPE

LINK - divider point extension

2шт.

BOLT - 5/16" x 1" N.C. hex. (113-103) Locknut (131-4)

2шт.

13

F92688

HOOP - divider, R.H. (960 special - hydraulic reel lift)

1шт.

F92689

HOOP - divider, L.H. (960 special - hydraulic reel lift)

1шт.

13a

F83944

EXTENSION - divider point (Grain combine)

2шт.

14

F21002

CLAMP - extension to reinforcement (Grain combine)

2шт.

BOLT - 5/16" x 1-1/2" rhd. sq. nk. (111-221) Nut (129-102)

6шт.

15

F20998

REINFORCEMENT - L.H. divider (Grain combine)

1шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (111-324) Nut (129-103)

2шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (111-319) Nut (129-103)

2шт.

BOLT - 3/8" x 1-1/2" rhd. sq. nk. (111-325) Nut (129-103)

2шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) L.W. (192-21)

2шт.

F20997

REINFORCEMENT - R.H. divider (Grain combine)

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) Nut (129-102)

4шт.

BOLT - 5/16" x 1" rhd. sq. nk. (111-203) Nut (129-102)

1шт.

BOLT - 5/16" x 1-1/4" rhd. sq. nk. (111-204) Nut (129-102)

2шт.

16

F82535

BRACKET - reel support, R.H.

1шт.

SCREW - 3/8" x 1" N.C. sq. nk. fl. pt. set (181-647)

1шт.

17

F82597

BRACKET - reel support bearing

2шт.

SCREW - 3/8" x 1" N.C. sq. hd. cup pt. set (85-616)

2шт.

18

F4342

BEARING - reel shaft (Replaced by F91895 when exhausted)

2шт.

F91895

BEARING - reel shaft assembly (Replaces F4342 when exhausted)

2шт.

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 65º, 1/8" NPT x 1.20" lg

1шт.

19

F18717

PIN - reel latch

2шт.

PIN - cotter 3/32" x 3/4" (132-26)

2шт.

WASHER - flat 5/16" (95-5)

2шт.

20

O2985AB1

SPRING

- latch pin

2шт.

21

F18715

SUPPORT - upper, R.H. & L.H.

2шт.

BOLT - 5/16" x 1-1/2" N.F. hex. (14-524) Loc nut (131-3)

2шт.

22

F82538

SUPPORT - R.H. reel

1шт.
