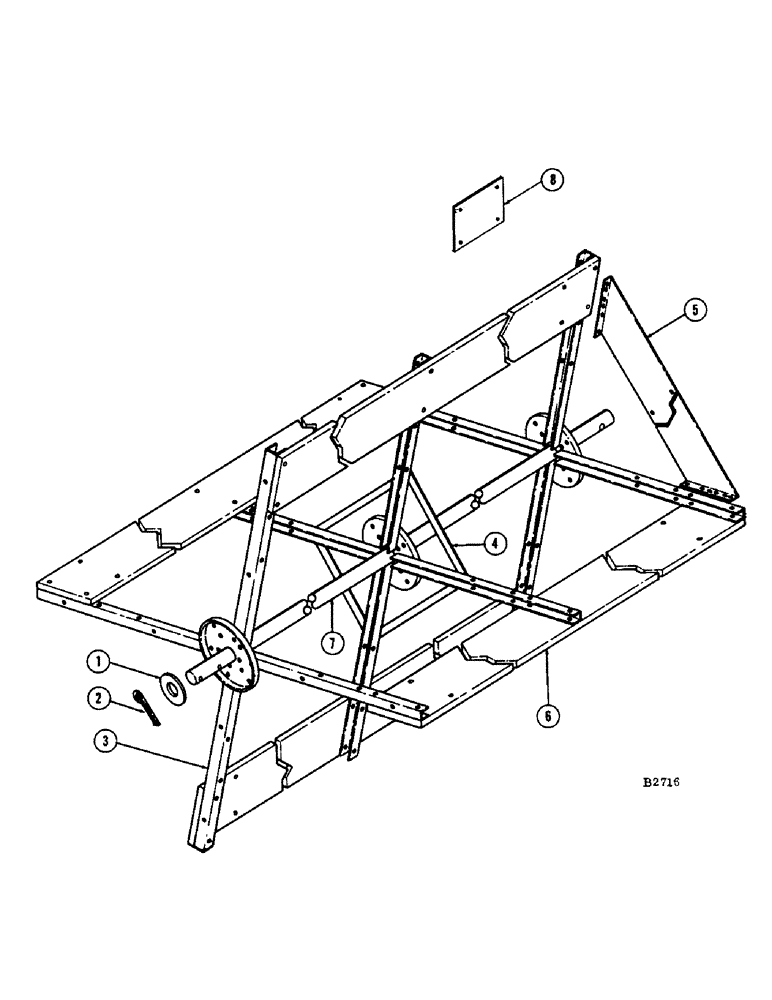

Запчасти Case IH 960 (008) - STANDARD REEL, 4 AND 6 BAT (58) - ATTACHMENTS/HEADERS

1

B18302

WASHER

- reel shaft

12шт.

2

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

3шт.

3

F9236

ARM

- reel, 10' and 13' headers (4 BAT)

12шт.

3

F9236

ARM

- reel, 10' and 13' headers (6 BAT)

18шт.

F9236

ARM

- reel, 14' and 16' headers (4 BAT)

16шт.

F9236

ARM

- reel, 14' and 16' headers (6 BAT)

24шт.

4

F9237

TIE STRAP - reel arm, 10' and 13' headers (4 BAT)

4шт.

F9237

TIE STRAP - reel arm, 14' and 16' headers (4 BAT)

8шт.

4

F9239

TIE STRAP - reel arm, 10' and 13' headers (6 BAT)

6шт.

F9239

TIE STRAP - reel arm, 14' and 16' headers (6 BAT)

12шт.

5

F9238

END SECTION (4 BAT)

8шт.

5

F8463

END SECTION (6 BAT)

12шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

6

F4327

BAT - reel, 10' header (4 BAT)

4шт.

6

F4327

BAT - reel, 10' header (6 BAT)

6шт.

F4335

BAT - reel, 13' header (4 BAT)

4шт.

F4335

BAT - reel, 13' header (6 BAT)

6шт.

F4343

BAT - reel, 14' header (4 BAT)

4шт.

F4343

BAT - reel, 14' header (6 BAT)

6шт.

F4354

BAT - reel, 16' header (4 BAT)

4шт.

F4354

BAT - reel, 16' header (6 BAT)

6шт.

111-111

CARRIAGE BOLT,Short NK, 1/4"-20 x 1", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 1", G2

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

7

F82589

SHAFT - reel, w/arm hubs - 10' header

1шт.

F82590

SHAFT - reel, w/arm hubs - 13' header

1шт.

F83126

SHAFT - reel, w/arm hubs - 14' header

1шт.

F91992

SHAFT - reel, w/arm hubs - 16' header

1шт.

8

F14906

REINFORCEMENT - reel bat (4 BAT)

8шт.

8

F14906

REINFORCEMENT - reel bat (6 BAT)

12шт.
