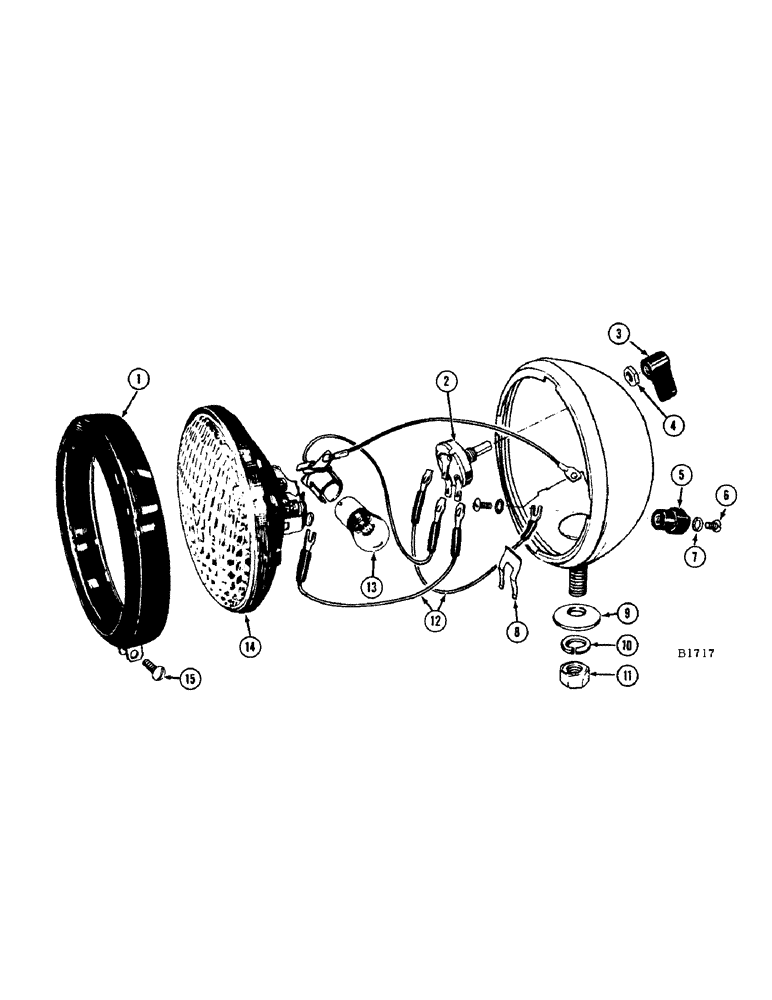

Запчасти Case IH 960 (268[1]) - A20965 FLOOD AND TAIL LAMP (55) - ELECTRICAL SYSTEMS

1

B50255

MOLDING

MOULDING

1шт.

2

B50275

SWITCH

1шт.

3

B50310

SWITCH

KNOB - switch assembly (Includes screw)

1шт.

4

B50224

SPECIAL NUT

- retaining, switch

1шт.

5

B50293

TERMINAL CONNECTOR

TERMINAL POST - complete

1шт.

6

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- terminal

2шт.

7

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, , Terminal screw Int Tooth, #8

2шт.

8

10927

SPRING

- terminal

1шт.

9

10923

WASHER

- bearing, mounting stud

1шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Mounting stud 1/2"

1шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

Mounting stud 1/2"-13, G5

1шт.

12

B50273

WIRE ASSEMBLY

2шт.

13

B50223

BULB

- 15 C.P., 12-16 volt (Mfg. #1003)

1шт.

14

A40855

LAMP BASE

SEALED UNIT

1шт.

15

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - moulding

1шт.
