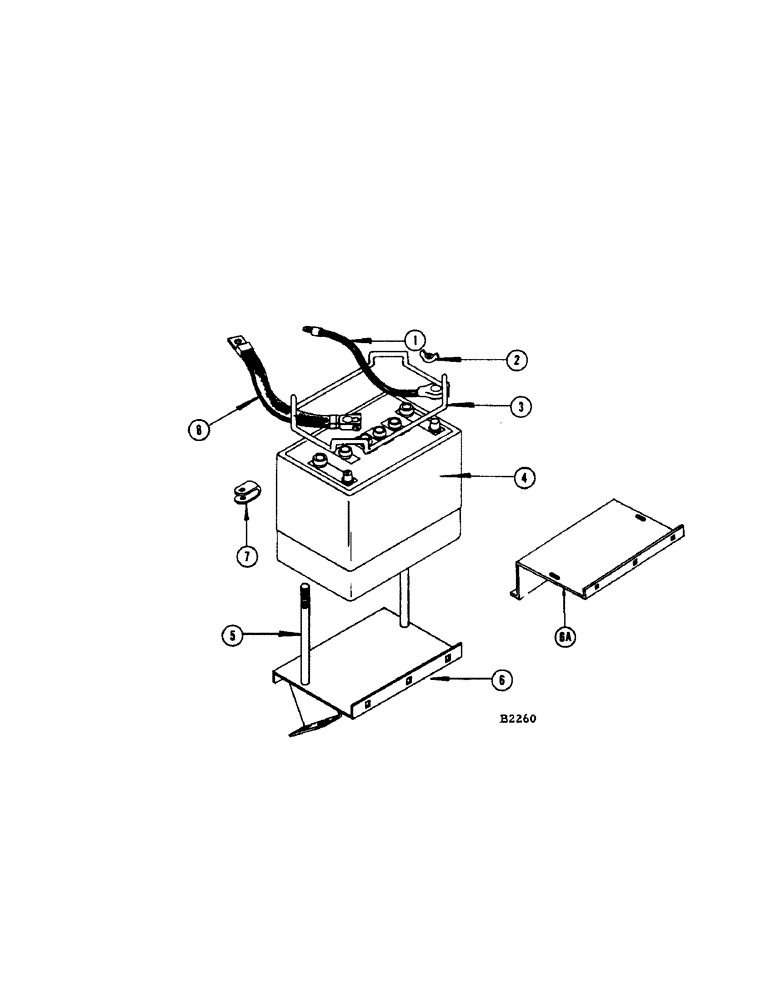

Запчасти Case IH 960 (266) - BATTERY TRAY (55) - ELECTRICAL SYSTEMS

1

F21246

CABLE -, Serial Range: battery-solenoid

1шт.

NUT - 5/16" N.F. hex. jam (129-162) L.W. (192-20)

1шт.

2

129-419

WING NUT,5/16"-18

- (5/16" N.C.) Tray bolts

2шт.

3

A35009

SECURING STRAP

WIRE - battery hold down

1шт.

4

D44176

BATTERY

- 12 volt

1шт.

5

11-5144

BOLT (MACHINE)

BOLT - 5/16" x 9" carriage (Battery tray)

2шт.

LOCKWASHER - 5/16" (92-5) Fl. wshr. (95-5)

2шт.

6

F84155

TRAY - battery (Exh. then use F23262)

1шт.

6a

F23262

TRAY - battery (Replaces F84155 when exh.)

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512)

3шт.

NUT - 5/16" (25-105) L.W. (92-5)

3шт.

7

A35010

CLIP

CLAMP - for A35009 wire

2шт.

8

F21247

CABLE - battery ground

1шт.

BOLT - 7/16" x 3/4" N.C. hex. (13-712) L.W. (92-7)

1шт.

A11066M

LAMP ATTACHMENT - warning

1шт.
