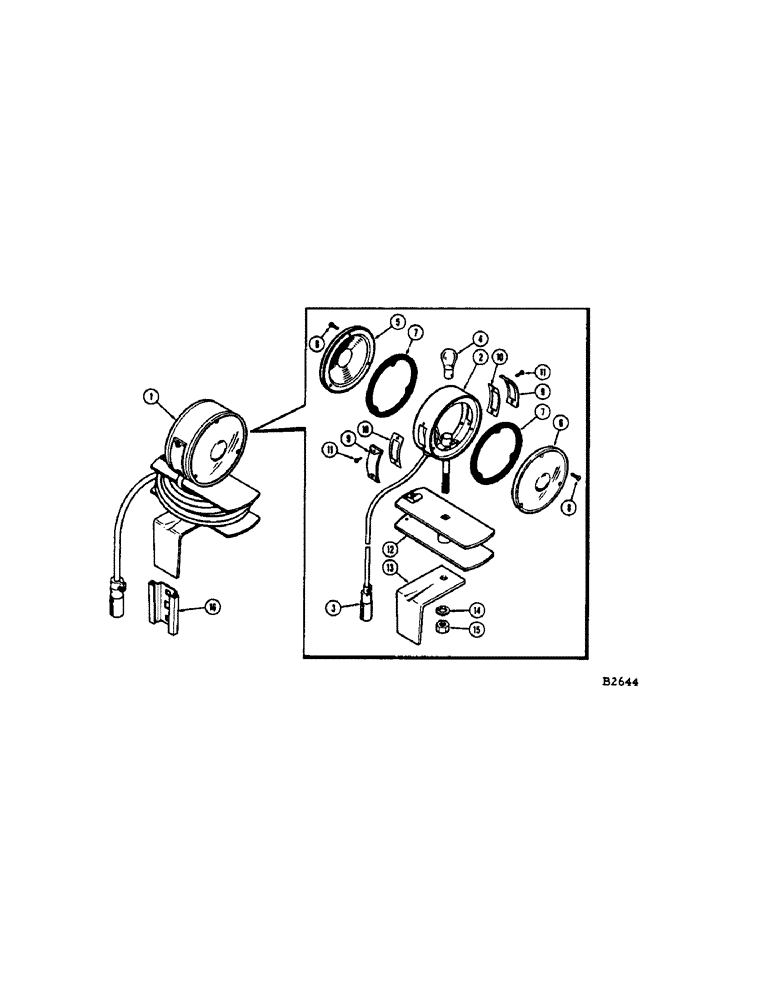

Запчасти Case IH 960 (266[1]) - WARNING LAMP ATTACHMENT (55) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

LAMP - assembly (Order A11066M)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - assembly with cord (Order A11066M)

1шт.

3

B50259

PLUG

- (To auxiliary socket)

1шт.

4

33686

BULB

- lamp (21 C.P.)

1шт.

5

B50337

LENS

- lamp (Amber)

1шт.

6

B53962

LENS

- lamp (Red)

1шт.

7

B50317

GASKET - lens

2шт.

8

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens #6 x 1/2" N.C. rhd.

6шт.

9

B50328

LENS - lamp, side (Clean)

2шт.

10

B50329

GASKET - side lens

2шт.

11

182-43

SCREW - side lens (#6 x 5/16" N.C. rhd.)

4шт.

12

B50330

SPOOL - lamp cord reel

1шт.

13

B50331

BRACKET - lamp, mounting

1шт.

14

92-7

LOCK WASHER,7/16"

1шт.

15

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

1шт.

16

A8179

SOCKET

- lamp

1шт.

A28673

CAP

CLIP - wire (1/4" D.)

1шт.

F8875

WIRE - light switch (Current side) to outlet socket

1шт.

A27039

CLIP - wire (11/32" D.)

4шт.

A27213

CONNECTOR - two wire line

2шт.
