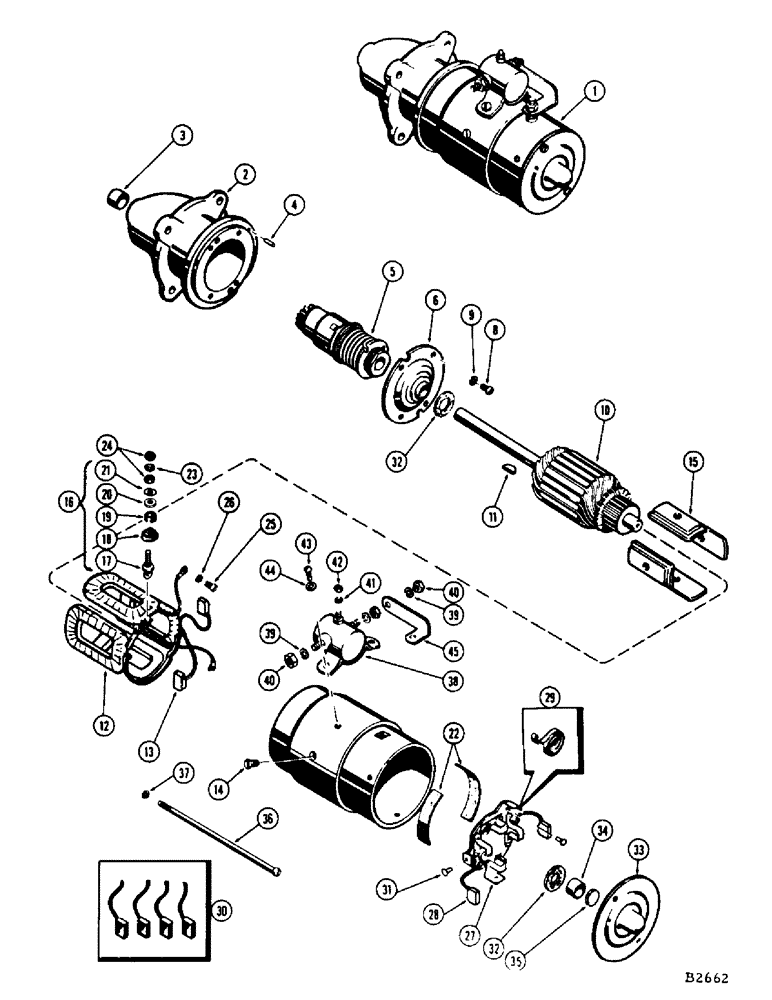

Запчасти Case IH 960 (263A) - STARTER MOTOR (55) - ELECTRICAL SYSTEMS

1

F82456

STARTER MOTOR - (Auto-Lite #MDT7015)

1шт.

2

A25778

HOUSING ASSEMBLY - drive end

1шт.

3

A25792

BEARING - armature shaft (5.8" x 3/4" x 3/4")

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - housing locating

1шт.

5

A25643

DRIVE ASSEMBLY - bendix

1шт.

6

25666

BEARING ASSEMBLY - intermediate

1шт.

8

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- intermediate bearing (#10-32 x 7/16" rhd.)

4шт.

9

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

10

A25756

ARMATURE

1шт.

11

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

12

A25722

COIL ASSEMBLY - field

1шт.

13

NSS

NOT SOLD SEPARAT

BRUSH - (Order A25603) See item 30

2шт.

14

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

15

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

16

A40278

KIT

TERMINAL KIT - field

1шт.

17

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - insulating, inner

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - insulating (In housing)

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - insulating, outer

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - plain, terminal stud

1шт.

22

NSS

NOT SOLD SEPARAT

INSULATION - field coil

2шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

192-102

WASHER

NUT - (5/16" N.C. hex.)

2шт.

25

173-24

SCREW - terminal stud (#8-32 x 5/16" rhd.)

1шт.

26

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

27

A25612

PLATE

ASSEMBLY - brush carrier

1шт.

28

NSS

NOT SOLD SEPARAT

BRUSH - (Order A25603) See item 30

2шт.

29

A40275

SPRING

SET - brush (Set of 4)

1шт.

30

A25603

BRUSH SET

- (Set of 4)

1шт.

31

NSS

NOT SOLD SEPARAT

RIVET - brush plate

3шт.

A40277

KIT

THRUST WASHER KIT - (not illustrated) Use thrust washers as required

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - inter. bearing and comm. end (1/32" thick)

4шт.

32

NSS

NOT SOLD SEPARAT

WASHER - comm. end (3/64" thick)

2шт.

32

NSS

NOT SOLD SEPARAT

WASHER - comm. end (5/16" thick)

2шт.

33

A25605

HEAD

ASSEMBLY - commutator end

1шт.

34

NSS

NOT SOLD SEPARAT

BUSHING - armature shaft

1шт.

35

NSS

NOT SOLD SEPARAT

FELT - oiler

1шт.

36

A25601

SCREW

- thru

2шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

38

A40795

SOLENOID

ASSEMBLY

1шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

40

129-122

NUT,5/16"-24, G5

3шт.

41

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

42

129-37

NUT,#10-32

WASHER - ( hex.) #10-32

1шт.

43

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

- solenoid (#10-32 x 1/4" rhd.)

2шт.

44

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

45

F19811

FLANGE BOLT

CONNECTOR -, Serial Range: solenoid-field

1шт.
