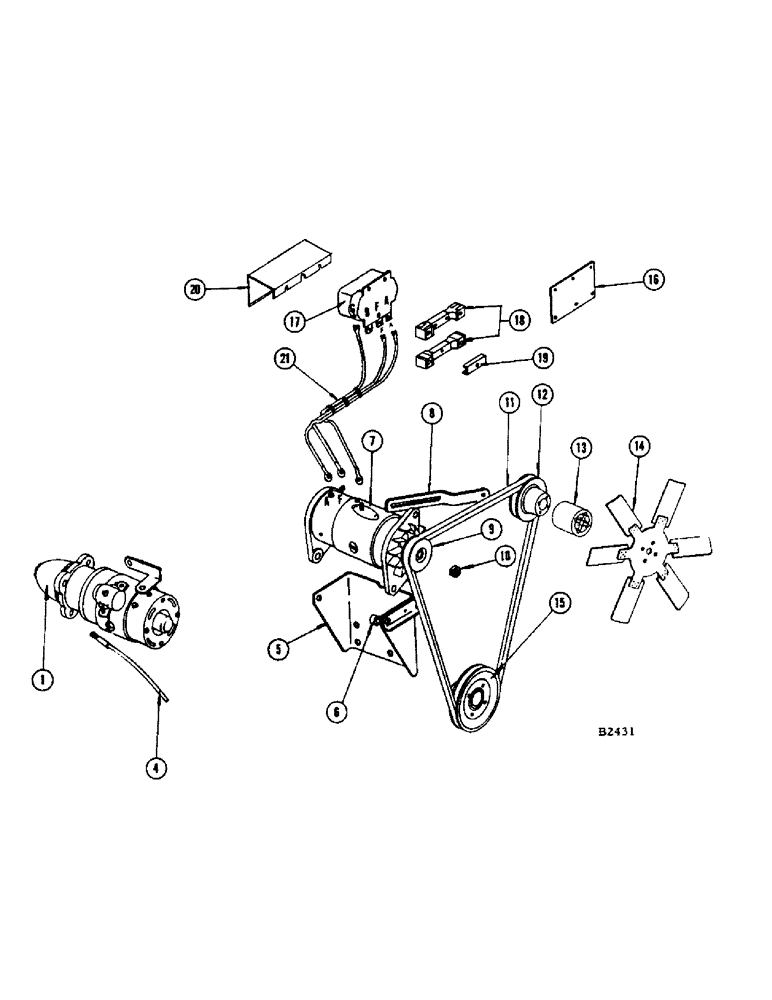

Запчасти Case IH 960 (260) - STARTING MOTOR (55) - ELECTRICAL SYSTEMS

1

F82456

STARTING MOTOR - (Auto-Lite #MDT7015) Before #8323348, see page 263A)

1шт.

F86743

STARTING MOTOR - (Chrysler #2095150) #8323348 and after - see page 262)

1шт.

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, and L.W.

2шт.

4

F21246

CABLE - stater, Serial Range: solenoid-battery

1шт.

5

F82457

BRACKET - generator mounting, generator before no. 8297316

1шт.

6

O935L

SPACER, generator before no. 8297316

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut, L.W. and fl. wshr., generator before no. 8297316 Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

L.W. and fl. wshr., generator before no. 8297316 Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

L.W. and fl. wshr., generator before no. 8297316 Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

and L.W., generator before no. 8297316 Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

7

F21239

GENERATOR - less pulley (Presto-Lite GJT-7404S) See page 261A, generator before no. 8297316

1шт.

8

F20023

STRAP - generator belt adjustment, generator before no. 8297316

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

L.W. and fl. wshr., generator before no. 8297316 Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

and L.W., generator before no. 8297316 Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

9

F19810

FLANGE BOLT

PULLEY - generator before no. 8297316

1шт.

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

Generator before no. 8297316 #5, 1/8" x 5/8"

1шт.

10

F19976

NUT - generator pulley to shaft, generator before no. 8297316

1шт.

92-11

LOCKWASHER - 11/16", generator before no. 8297316

1шт.

11

F20129

V-BELT

"V" BELT, generator before no. 8297316

1шт.

12

F1645

PULLEY - fan and water pump drive (Before #83346001), generator before no. 8297316

1шт.

F1722

PULLEY - fan and water pump drive (#83346001 thru #8358000), generator before no. 8297316

1шт.

F2190

PULLEY - fan and water drive (#8358001 and after), generator before no. 8297316

1шт.

13

F20127

SPACER - fan. generator before no. 8297316

1шт.

14

F22694

FAN

- (Replaces F83391 when stocks are exhausted), generator before no. 8297316

1шт.

F83391

FAN

- (Replaced by F22394 when stocks are exhausted), generator before no. 8297316

1шт.

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2", and L.W., Generator before no. 8297316

4шт.

15

F84108

DAMPER

PULLEY - vibration damper (Before #8323348), generator before no. 8297316

1шт.

F91910

PULLEY

- vibration damper (#8323348 and after), generator before no. 8297316

1шт.

16

F18626

PLATE - mounting, voltage regulator before no. 8297316

1шт.

17

F84740

REGULATOR - voltage (Presto-Lite VGO4201ABX-3), voltage regulator before no. 8297316

1шт.

F18356

WIRE - ground, voltage regulator before no. 8297316

1шт.

18

F18357

MOUNT - rubber, voltage regulator before no. 8297316

2шт.

19

F18355

CHANNEL - mount, voltage regulator before no. 8297316

2шт.

20

F21696

COVER - voltage regulator before no. 8297316

1шт.

21

F21263

CARRIAGE BOLT

HARNESS - generator to voltage regulator before no. 8297316

1шт.

WHITE - field wire, voltage regulator before no. 8297316

1шт.

GREEN - armature wire, voltage regulator before no. 8297316

1шт.

BLACK - ground wire, voltage regulator before no. 8297316

1шт.
