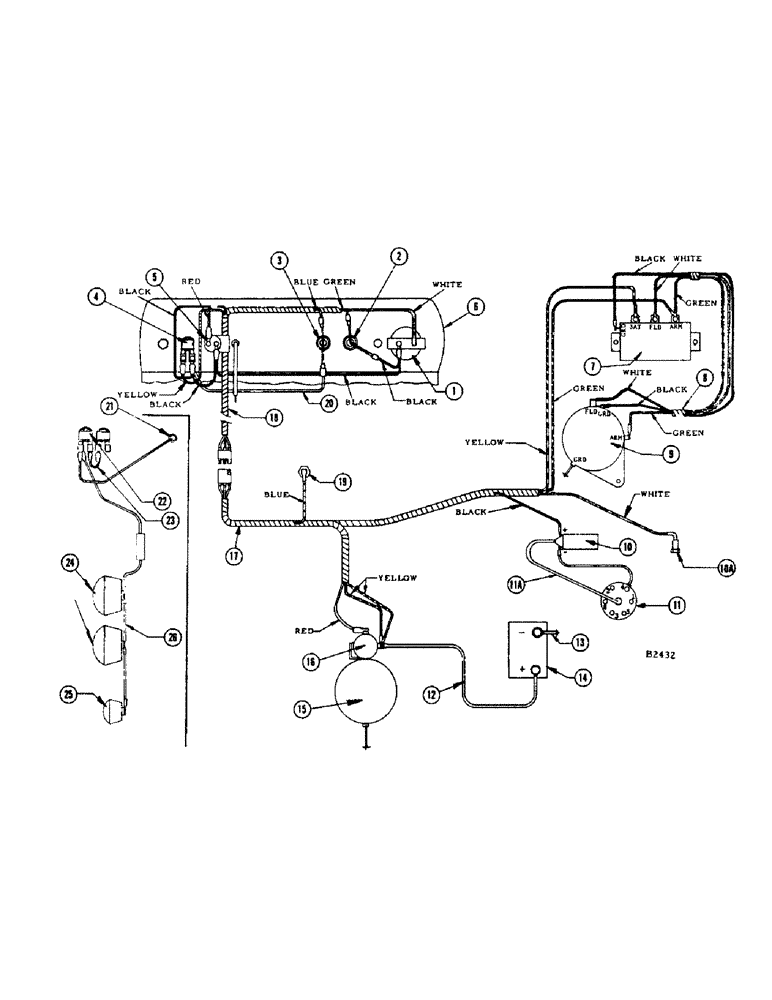

Запчасти Case IH 960 (256) - GENERATOR ELECTRICAL SYSTEM BEFORE NO. 8297316 (55) - ELECTRICAL SYSTEMS

1

F82423

GAUGE - temperature

1шт.

2

F84181

LIGHT - generator indicator

1шт.

3

F82422

LIGHT - oil pressure warning

1шт.

4

A7935

SWITCH

- ignition

1шт.

A7819

KNOB

- ignition switch

1шт.

5

A30858

SWITCH

STARTING SWITCH - push button type

1шт.

O10463AB

BOOT

- rubber, starter switch

1шт.

6

F21637

PANEL - instrument

1шт.

7

F84740

REGULATOR - voltage (Prestolite VBO4201ABX-3)

1шт.

BOLT - 1/4" x 1-1/4" N.F. hex. (14-420) Nut (25-114)

2шт.

BOLT - 1/4" x 1-1/2" N.F. hex. (14-424) Nut (25-114)

2шт.

F21696

COVER - voltage regulator

1шт.

8

F21263

CARRIAGE BOLT

HARNESS - wire, generaor to voltage regulator

1шт.

9

F21239

GENERATOR - (Prestolite #GJT-7404-S) Less pulley

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115) L.W. (92-5)

1шт.

10

F83899

COIL - (Auto-Lite #201532)

1шт.

10a

F21200

TRANSMITTER

UNIT - temperature sending

1шт.

11

F84107

DISTRIBUTOR - (Chrysler #2444253)

1шт.

11a

F20001

FITTING

CABLE - distributor, primary

1шт.

12

F21246

CABLE - battery to starter solenoid

1шт.

13

F21247

CABLE - battery ground

1шт.

NUT - 5/16" N.F. hex. jam (129-162) L.W. (192-20)

1шт.

14

D44176

BATTERY

- 12 volt

1шт.

15

F82456

STARTER MOTOR - (Auto-Lite #MDT7015)

1шт.

BOLT - 7/16" x 1-1/2" N.C. hex. (13-724) L.W. (92-7)

2шт.

16

A20145

X

SOLENOID - starter

1шт.

17

F21265

HARNESS

- wire, engine end

1шт.

WHITE WIRE - temperature sending unit

1шт.

GREEN WIRE - voltage regulator

1шт.

BLACK WIRE - coil

1шт.

YELLOW WIRE - battery - starting solenoid/voltage regulator

1шт.

RED WIRE - starter solenoid

1шт.

BLUE WIRE - oil pressure sending unit

1шт.

F20879

CLIP - wire harness

2шт.

18

F21638

HARNESS - wire, instrument panel end

1шт.

WHITE WIRE - temperature gauge

1шт.

GREEN WIRE - generator indicator light

1шт.

BLACK WIRE - ignition switch

1шт.

YELLOW WIRE - ignition switch

1шт.

RED WIRE - starter switch

1шт.

BLUE WIRE - oil pressure indicator light

1шт.

19

F22412

UNIT - oil pressure sending

1шт.

20

F21268

WIRE - oil pressure light to ignition switch

1шт.

21

A24087

LAMP BASE

LAMP - dash (12 volt), lighting attachment

1шт.

A22349

BULB

- (#1445), lighting attachment

1шт.

187-1007

SCREW

- #6-32 x 5/16" rhd. self-tapping, lighting attachment

2шт.

22

A10942

KIT

SWITCH - light, lighting attachment

1шт.

A7817

KNOB

lighting attachment

1шт.

23

F18726

CABLE

WIRE - starter switch to light switch, lighting attachment

1шт.

24

F82077

LAMP BASE

HEADLAMP - (12-16 volt, 35 watt), lighting attachment

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

and L.W., lighting attachment 1/2"-13, G5

2шт.

F21933

BRACKET - lamp, lighting attachment

3шт.

111-340

BOLT,Short NK, 3/8"-16 x 3/4", G2, Full Thd

- 3/8" x 3/4" rhd. sq. nk., nut and L.W., lighting attachment

3шт.

25

A20965

LAMP BASE

LAMP - combination flood and tail, lighting attachment

1шт.

129-400

WING NUT,1/2"-13

NUT - 1/2 N.C. wing and L.W., lighting attachment

1шт.

26

F22342

HARNESS - wire (Replaces F21934 when exhausted), lighting attachment

1шт.

F21934

HARNESS - wire (Replaced by F22342 when exhausted), lighting attachment

1шт.

F19785

NIPPLE, LUBE

NIPPLE - wire harness, lighting attachment

1шт.

F53322

GROMMET - wire harness, lighting attachment

2шт.

223-14

FUSE,10 Amp, Type SFE

- 14 amp., lighting attachment

1шт.
