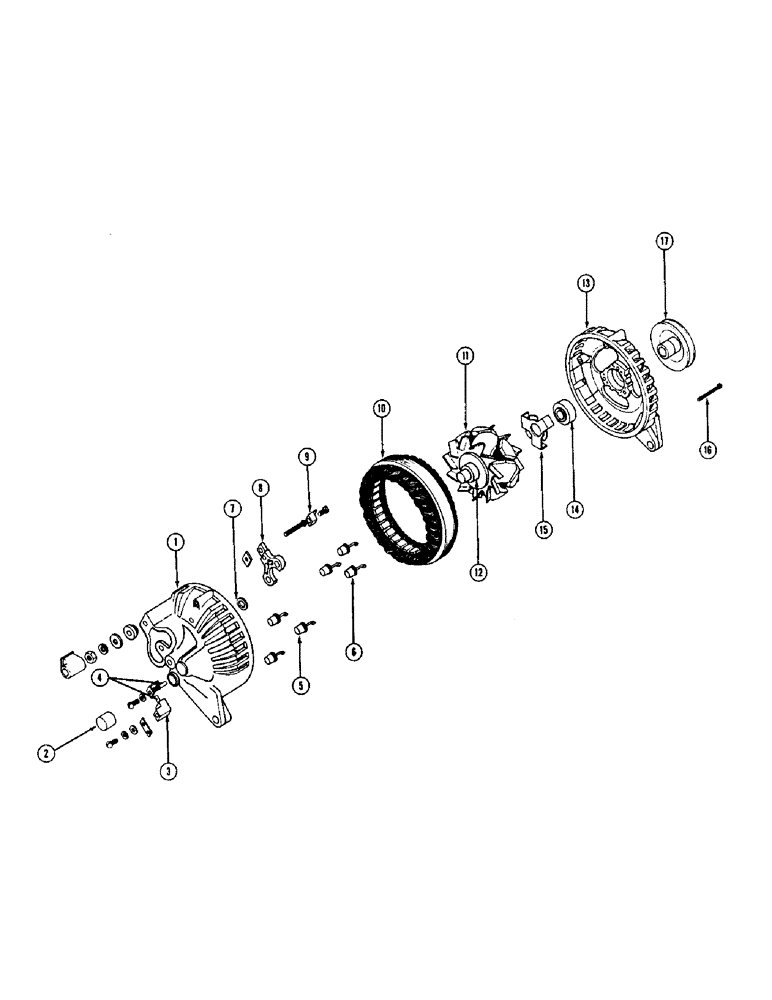

Запчасти Case IH 960 (255C) - PARTS FOR F88070 ALTERNATOR (55) - ELECTRICAL SYSTEMS

F88070

ALTERNATOR

- (Chrysler 2444599)

1шт.

1

A41495

SHIELD - rectifier end

1шт.

2

A41494

BEARING - rectifier end shield

1шт.

3

A40386

HOLDER - insulated brush

1шт.

4

A40379

BRUSHES - package

1шт.

5

A40381

RECTIFIER - negative (Black)

3шт.

6

A40408

RECTIFIER - positive (Red)

3шт.

7

A40420

SPACER

S - rectifier heat sink

1шт.

8

A40404

HEAT SINK - rectifier

1шт.

9

A40419

CAPACITOR KIT

1шт.

10

A40400

STATOR

1шт.

11

A41498

ROTOR

1шт.

12

A41499

SLIP RING PACKAGE - includes grease retainers, retainer washer, rotor slip ring

1шт.

13

A40405

SHIELD - drive end

1шт.

14

A40409

BEARING - drive end shield

1шт.

15

A40383

PLATE - bearing retainer

1шт.

16

A41497

SCREW,#10 - 32 x 3.28"

- frame

3шт.

17

A41501

PULLEY

1шт.

F91766

BRACKET - mounting alternator

1шт.

F22221

STRAP - adj.

1шт.

BOLT - 3/8" x 3/4" N.C. hex. (13-612) L.W. (92-6)

1шт.

BOLT - 5/16" x 3/4" N.C. (13-512) L.W. (92-5) Wshr. (195-21)

1шт.
