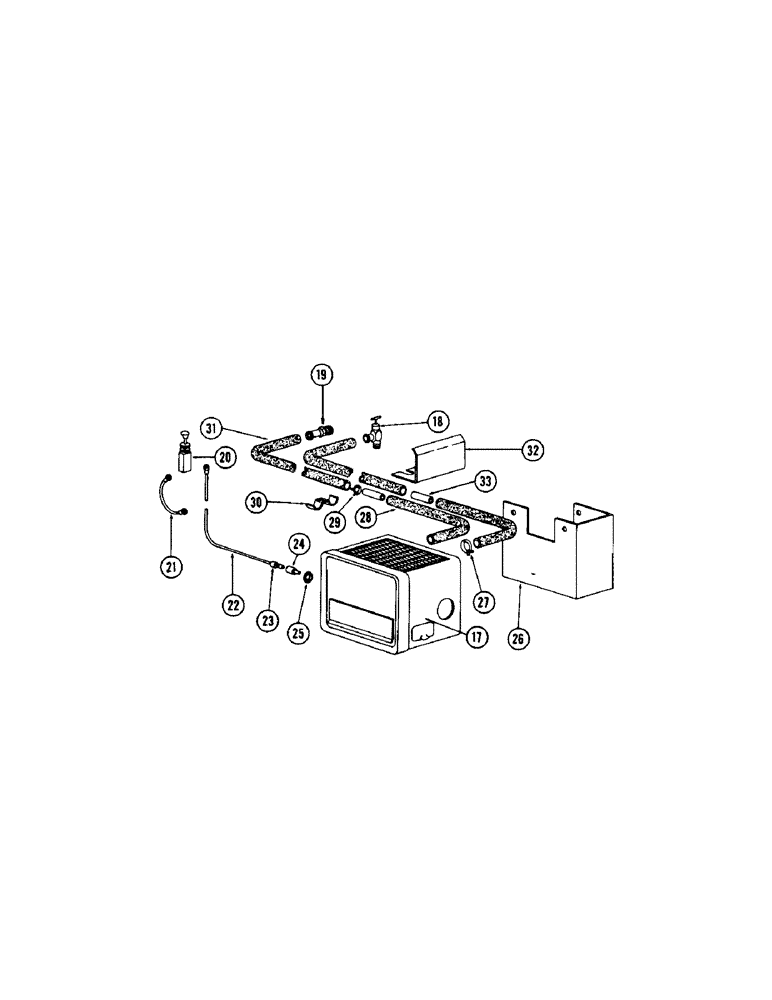

Запчасти Case IH 960 (208[3]) - HEATER (50) - CAB CLIMATE CONTROL

17

F84220

HEATER - 12 volt

1шт.

NUT - 5/16" N.C. (129-102) L.W. (192-20)

3шт.

18

A16764

VALVE

ELBOW AND VALVE - (3/8") Engine heater hose

1шт.

19

F19940

CONNECTOR - straight (3/8") Engine heater hose

1шт.

20

F21304

BLOWER SWITCH

SWITCH - heater

1шт.

21

F21300

WIRE - jumper, terminal box to heater switch

1шт.

22

F84221

WIRE -, Serial Range: switch-heater

1шт.

23

F21352

TERMINAL

1шт.

24

F21330

CONNECTOR - heater wire

1шт.

25

A27339

GROMMET - heater wire

2шт.

26

F21308

BRACKET - heater

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (15-512) Nut (25-105)

6шт.

27

214-1101

CLIP - wire

5шт.

28

F21307

HOSE - heater

2шт.

29

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

30

F21337

CLAMP - double hose

1шт.

BOLT - 1/4" x 5/8" N.C. hex. (13-410) Nut (129-101)

1шт.

31

F21310

HOSE - heater, Serial Range: hose-engine

2шт.

32

F21309

SHIELD - heater hose

1шт.

33

F21305

NIPPLE - hose connection

2шт.
