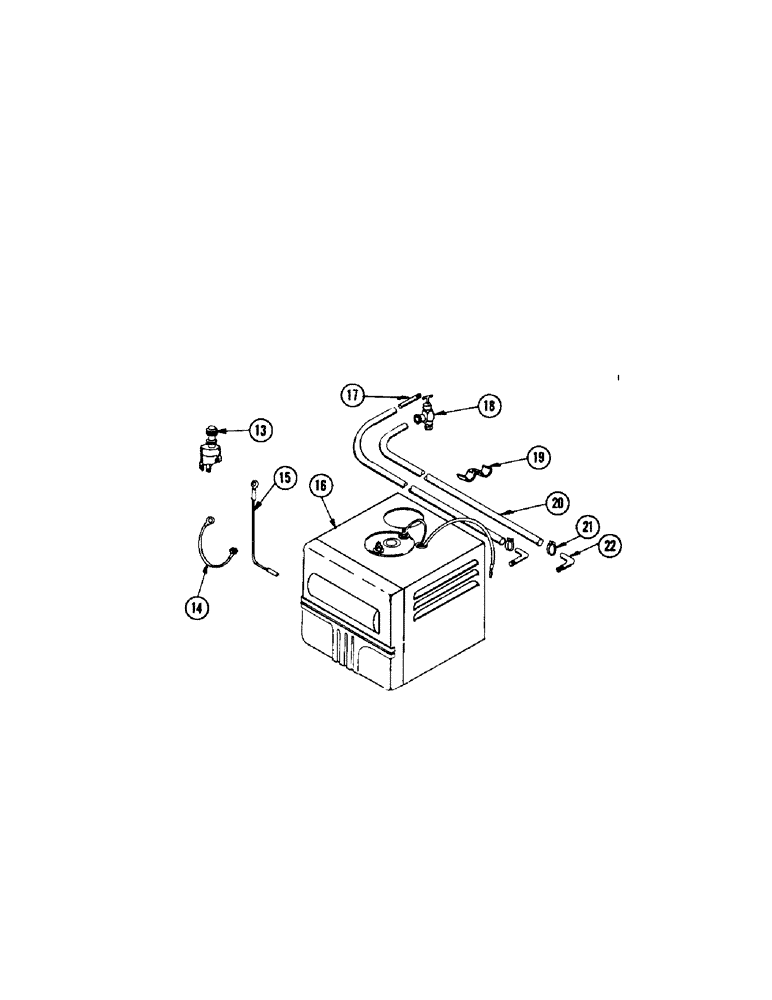

Запчасти Case IH 960 (206[3]) - HEATER (50) - CAB CLIMATE CONTROL

13

F13231

SCREW

SWITCH - heater (Kysor #3287)

1шт.

14

F87185

WIRE - jumper-terminal box to heater switch

1шт.

15

F87184

WIRE -, Serial Range: switch-heater

1шт.

F13235

SCREW

CLIP - wire

5шт.

16

F87183

HEATER - 12 volt (Kysor #X610)

1шт.

F14993

MOTOR

1шт.

F14994

FAN

1шт.

F14995

RADIATOR - core

1шт.

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

and L.W. Hex, 1/4"-20 x 5/8", G5, Full Thd

3шт.

17

A19940

PIPE

NIPPLE - hose connection

1шт.

18

A16764

VALVE

- water shut-off

1шт.

19

F13234

CLAMP - double hose

4шт.

20

F13233

SCREW

HOSE -, Serial Range: heater-engine

2шт.

21

F13232

CLAMP - hose

4шт.

22

A19941

PACKAGE

ELBOW - 90 degrees

2шт.
