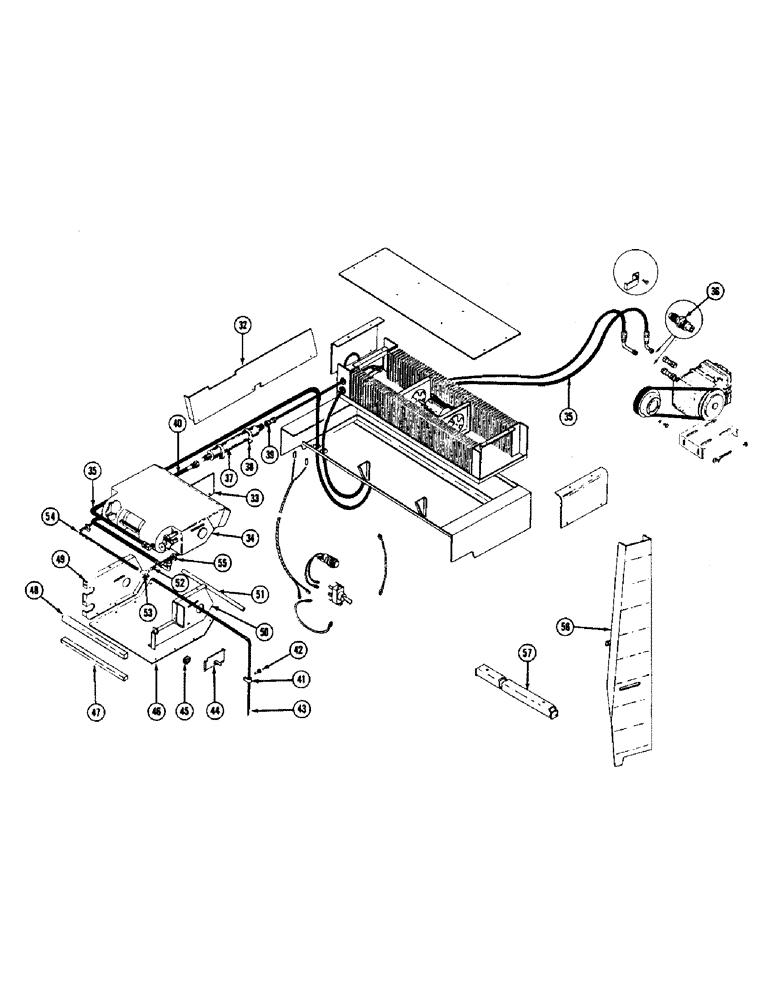

Запчасти Case IH 960 (201C) - AIR CONDITIONER (CONTD) (50) - CAB CLIMATE CONTROL

32

F14289

SHIELD - hose

1шт.

33

F14290

SHIELD - hose

1шт.

187-1037

SELF-TAP SCREW,Slotted Pan Hd, #8 x 3/8"

SCREW - #8 x 3/8" self tap type A

5шт.

34

EVAPORATOR

1шт.

Not stocked by J. I. Case Co. order from Cummins distributor.

1шт.

35

HOSE - compressor to evaporator (200")

1шт.

Not stocked by J. I. Case Co. order from Cummins distributor.

1шт.

36

COUPLER - male (5/8" tube)

1шт.

Not stocked by J. I. Case Co. order from Cummins distributor.

1шт.

37

RECEIVER - drier (Horizontal)

1шт.

Not stocked by J. I. Case Co. order from Cummins distributor.

1шт.

38

CLAMP - receiver

2шт.

Not stocked by J. I. Case Co. order from Cummins distributor.

1шт.

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- #8 x 1/2" self tap type A

2шт.

39

COUPLER - female (3/8" tube)

1шт.

Not stocked by J. I. Case Co. order from Cummins distributor.

1шт.

40

HOSE - receiver to evaporator (42")

1шт.

Not stocked by J. I. Case Co. order from Cummins distributor.

1шт.

41

CLAMP - drain hose

4шт.

Not stocked by J. I. Case Co. order from Cummins distributor.

1шт.

42

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- #8 x 1/2" self tap type A

3шт.

HARNESS - wire, evaporator to switch (Not shown)

1шт.

Not stocked by J. I. Case Co. order from Cummins distributor.

1шт.

GREEN - thermostat to hi-temp switch

1шт.

RED - blower switch to hi-temp cut out switch

1шт.

BLUE - compressor clutch to thermostat switch

1шт.

YELLOW - blower switch to terminal block

1шт.

BLACK - blower switch to blower motor

1шт.

F21330

CONNECTOR - wire harness

2шт.

43

F14267

HOSE - drain, evaporator (76")

1шт.

44

F87946

VENT - evaporator

1шт.

175-410

SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- 1/4" x 1/2" NC. truss hd.

2шт.

131-2

NUT,1/4"-20, GB

N.C. Esna 1/4"-20, GB

2шт.

45

F14499

GROMMET

6шт.

46

F14270

COVER - bottom evaporator

1шт.

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. truss hd.

8шт.

47

F14269

SEAL - bottom, evaporator

1шт.

48

F14268

SEAL - top, evaporator

1шт.

49

F87944

COVER - R.H. evaporator

1шт.

50

F87945

COVER - L.H. evaporator

1шт.

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

9шт.

187-1038

SCREW - #14 x 3/8" self tap type A

2шт.

51

F14281

SEAL - front, evaporator

1шт.

52

F14264

HOSE - evaporator tee (5")

1шт.

53

F14266

TEE

1шт.

54

F14265

HOSE - evaporator tee (18")

1шт.

55

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

56

F87968

SHIELD - leveling auger (960 special only)

1шт.

57

F87970

MOUNTING - condenser (960 special only) Before #8358001

1шт.

F92757

MOUNTING - condenser (960 special only) #8358001 and after

1шт.
