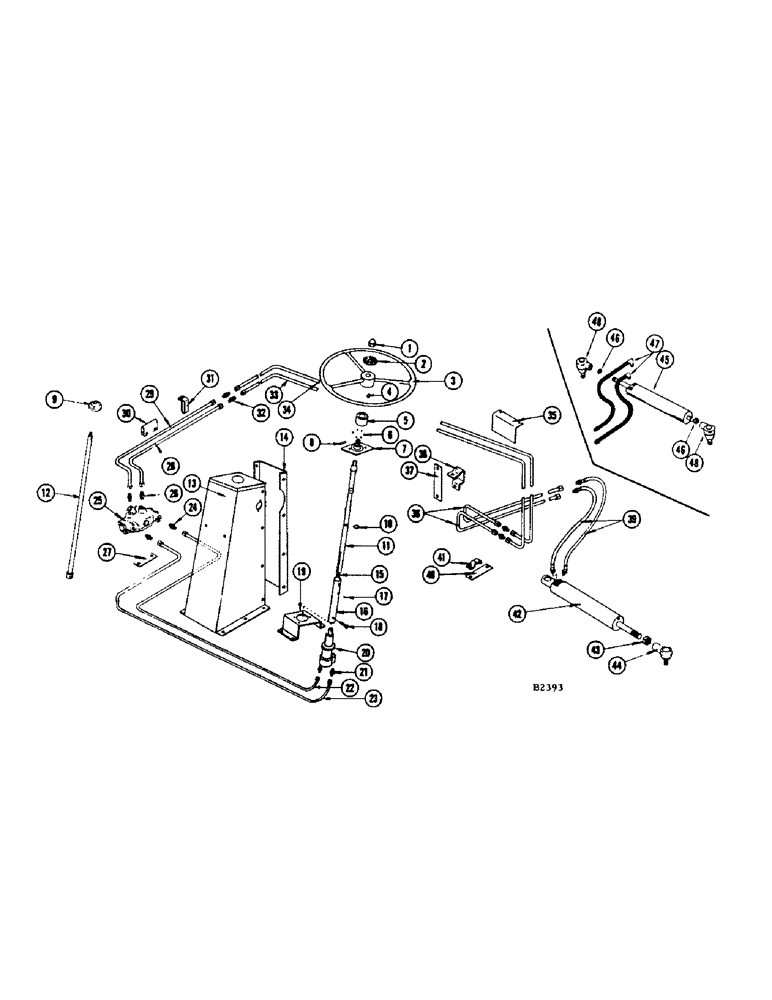

Запчасти Case IH 960 (330) - HYDROSTATIC POWER STEERING (41) - STEERING

1

A8744

NUT

- steering wheel

1шт.

2

A8248

PLATE - steering wheel

1шт.

3

A7668

WHEEL

- steering

1шт.

4

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

5

F12987

NUT - adjusting (Adjustable steering shaft)

1шт.

6

211-7

BALL,1/4" Dia

- steel (Adjustable steering shaft) 1/4" Dia

6шт.

7

F86988

BEARING

1шт.

8

138-50

LOCK PIN,1/8" x 5/16", Slotted

PIN, 1/8" x 5/16", Slotted

1шт.

9

F12061

BEARING - (Solid steering shaft)

1шт.

10

F62205

RING, SNAP

SNAP RING - adj. steering shaft

1шт.

11

F21587

SHAFT - adjustable steering

1шт.

12

F84373

SHAFT - solid steering (Before #8358001)

1шт.

13

F84371

COLUMN - steering (Solid steering shaft) Before #8358001

1шт.

F84374

COLUMN - steering (Adjustable steering shaft) Before #8358001 (Replaced by F94389 when exh.)

1шт.

F94389

COLUMN - adj. steering (#8358001 and after)

1шт.

7548

CABLE

SCREW - 1/4" x 1/2" rh. N.C.

8шт.

131-129

NUT

- 1/4" type J Timmerman

8шт.

14

F19303

PANEL - steering column

1шт.

15

F10666

WASHER - rubber (Adjustable shaft)

1шт.

16

F86989

COLLAR - assembly (Adjustable steering shaft)

1шт.

17

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease (Adjustable steering shaft)

1шт.

18

F12502

PIN - steering shaft

1шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

19

F21579

CARRIAGE BOLT

BRACKET - hydrostatic hand pump support

1шт.

14-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex.

2шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut and L.W. Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

20

F86570

PUMP - hydrostatic hand

1шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

FITTING - connection (Parker #8F50X-S)

2шт.

22

F84372

LINE - hydraulic, R.H., Serial Range: pump-valve

1шт.

23

F84376

LINE - hydraulic, L.H., Serial Range: pump-valve

1шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

FITTING - connector (Parker #8F50X-S)

2шт.

25

A37980

VALVE

ASSEMBLY - (Replaces F82739 when exhausted)

1шт.

F82739

VALVE

ASSEMBLY - (Replaced by A37980 when exhausted)

1шт.

26

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - connector (Parker 6F50X-S)

2шт.

27

F19378

STRAP - valve tie

1шт.

28

F82757

LINE - hydraulic, valve to cylinder, front lower

1шт.

29

F82756

LINE - hydraulic, valve to cylinder, front upper

1шт.

30

F19508

SHIELD

3шт.

31

F19308

CLIP - hydraulic line

2шт.

32

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union (Parker 6HTX-S)

2шт.

33

F82761

LINE - hydraulic, valve to cylinder, rear lower

1шт.

34

F82762

LINE - hydraulic, valve to cylinder, rear upper

1шт.

35

F19509

SHIELD - rear

1шт.

36

F82803

LINE - hydraulic, extension (Special combines)

2шт.

37

F18836

STRIP - canvas, line shield

1шт.

38

F18835

SHIELD - line

1шт.

39

F19381

HOSE - hydraulic (Special combines; and also grain combine - special wide axle)

2шт.

40

F9565

CUSHION - clip

2шт.

41

F7778

CLIP - line

2шт.

42

F91830

CYLINDER

- steering (Replaces F82953 - special combine and also grain combine - special wide axle)

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

43

F7510

NUT - cylinder (Special combines; and also grain combine - special wide axle)

1шт.

44

F82723

SOCKET - cylinder (Special combines; and also grain combine - special wide axle)

1шт.

25-199

NUT - 9/16" N.F. hex. slotted

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

45

F87848

CYLINDER - steering (Grain combines) Replaces F86540

1шт.

46

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" N.F. hex. jam (Grain combines)

2шт.

47

F12430

HOSE - hydraulic (Grain combine - 40")

2шт.

F21221

HOSE - hydraulic (Grain combine - 66" axle)

2шт.

F22490

HOSE - hydraulic (Grain combine - 78" axle)

2шт.

48

F83466

SOCKET - cylinder (Grain combines)

2шт.

25-199

NUT - 9/16" N.F. hex. slotted

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

F82754

LINE - hydraulic, front, valve to reservoir (Not shown)

1шт.

F91799

LINE - hydraulic, rear (Replaces F82758 when exhausted)

1шт.

F82758

LINE - hydraulic, rear, valve to reservoir (Not shown) Replaced by F91799 when exhausted

1шт.

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

FITTING - connector (6-8F50X-S) F82754 to valve (Not shown)

1шт.

F82755

LINE - hydraulic, front, valve to hydraulic pump (Not shown)

1шт.

F82759

LINE - hydraulic, rear, valve to hydraulic pump (Not shown)

1шт.

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - connector (6-F50X-S) F82755 to valve (Not shown)

1шт.

F20459

ANGLE - support hyd. line (For F9565)

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex. nut and L.W.

1шт.
