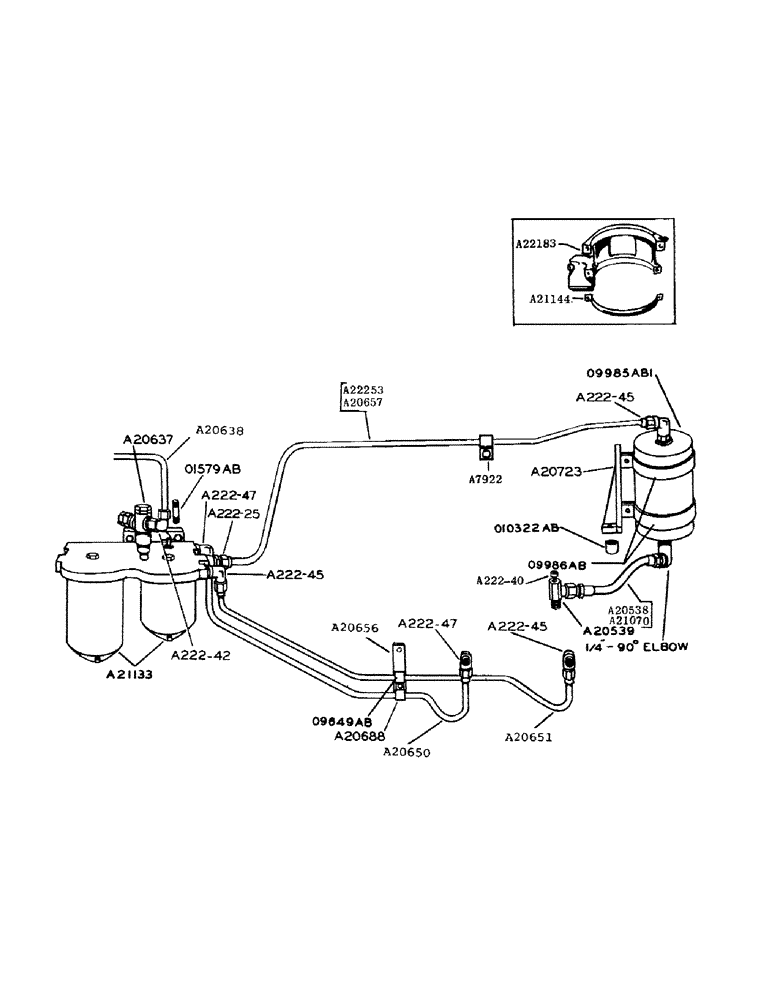

Запчасти Case IH 800 (232) - FIRST AND SECOND STAGE FUEL FILTER AND TUBES (10) - ENGINE

A222-25

CONNECTOR - 5/16" x 1/4" P.T. (A20657 or A22253 at second stage filter)

1шт.

A222-42

ELBOW - 1/4" x 1/8" P.T., Serial Range: (A20638-A20637)

1шт.

A222-45

ELBOW - 5/16" x 1/4" P.T. (both ends of A20651, A20657 or A22253 at final stage filter

3шт.

A222-47

ELBOW - 3/8" x 1/4" P.T. (both ends of A20650)

2шт.

A7922

CLIP

- for A20657 or A22253 tubes

1шт.

A20637

LOCK VALVE

VALVE - relief

1шт.

A20638

TUBE - leak-off from #4 nozzle to relief valve

1шт.

A20650

TUBE

- first stage filter to fuel pump

1шт.

A20651

TUBE

- fuel pump to second stage filter

1шт.

A20656

BRACKET - first and second stage filter tube clip

1шт.

5/16" x 3/4" N.C. hex. bolt w/lockwasher

1шт.

A20657

TUBE - second stage filter to final stage filter (used w/frt. mounted final filter). See A22253

1шт.

A20688

CLIP

- for A20650 tube

1шт.

1/4" x 3/4" N.C. rhd. mach. screw w/hex. nut and lockwasher

1шт.

A21133

FILTER

- fuel, first and second stage (assembly)

1шт.

A22253

TUBE

- second stage filter to final stage filter (used w/side mounted final filter) see A20657

1шт.

01579AB

STUD - filter head to cylinder block

2шт.

3/8" N.F. hex. nut and lockwasher

2шт.

09649AB

CLIP - for A20651 tube

1шт.

A222-40

CONNECTOR - 1/8" x 1/8" P.T. (on A20539) fuel pressure gauge tube, final stage filter

1шт.

A20538

FUEL HOSE,0.38" ID x 8.50"

Final stage filter to fuel pump (Use w/frt. mounted final filter) See A21070 and tubes 0.38" ID x 8.50"

1шт.

A20539

FITTING

UNION - 90deg. adapter, A20538 or A21070 hose to fuel pump, final stage filter, and tubes

1шт.

A20723

BRACKET - final stage filter (use w/front mounted final filter). see A22183, fuel, and tubes

1шт.

7/16" x 2" N.C. hex. bolt w/lockwasher, final stage fuel filter and tubes

2шт.

A21070

HOSE,9.53mm ID x 203.2mm L

- Final stage filter to fuel pump (Use w/side mounted final filter) See A20538, and tubes 0.38" ID x 8.00"

1шт.

A21144

CLAMP

- final stage filter (use w/side mounted final filter) see 09986AB, fuel, and tubes

2шт.

5/16" x 7/8" N.C. hex. bolt w/lockwasher, final stage fuel filter and tubes

4шт.

A22183

BRACKET - decompressor housing, and final stage filter (used w/side mounted final filter). see A20723, fuel, and tubes

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher, final stage fuel filter and tubes

1шт.

5/16" x 1-1/2" N.C. hex. bolt w/lockwasher, final stage fuel filter and tubes

2шт.

09985AB1

FILTER - fuel, final stage, and tubes

1шт.

1/4" - 90deg. street elbow (brass), final stage fuel filter and tubes

1шт.

09986AB

CLAMP - final stage filter (used w/frt. mounted final filter). see A21144, fuel, and tubes

2шт.

5/16" x 1/2" N.C. hex. bolt w/shakeproof ext. - int. lockwasher #4018-24, final stage fuel filter and tubes

1шт.

5/16" x 3/4" N.F. hex. bolt w/nut and shakeproof ext. - int. lockwasher #4018-24, final stage fuel filter and tubes

3шт.

1/4" x 1-1/2" N.C. rhd. mach. screw w/nut, final stage fuel filter and tubes

2шт.

010322AB

SPACER - filter bracket (used w/frt. mounted final filter), stage, fuel, and tubes

2шт.

A222-102

SLEEVE - 1/4" for A20638, and nuts for fuel tubes

1шт.

A222-103

SLEEVE - 5/16", for A20651, A20657 and A22253 tubes, and nuts for fuel

1шт.

A222-104

SLEEVE - 3/8", for A20650 tube, and nuts for fuel

1шт.

A222-112

NUT - 1/4", for A20638, and sleeves for fuel tubes

1шт.

A222-113

NUT - 5/16", for A20651, A20657 and A22253 tubes, and sleeves for fuel

1шт.

A222-114

NUT - 3/8", for A20650 tube, and sleeves for fuel

1шт.
