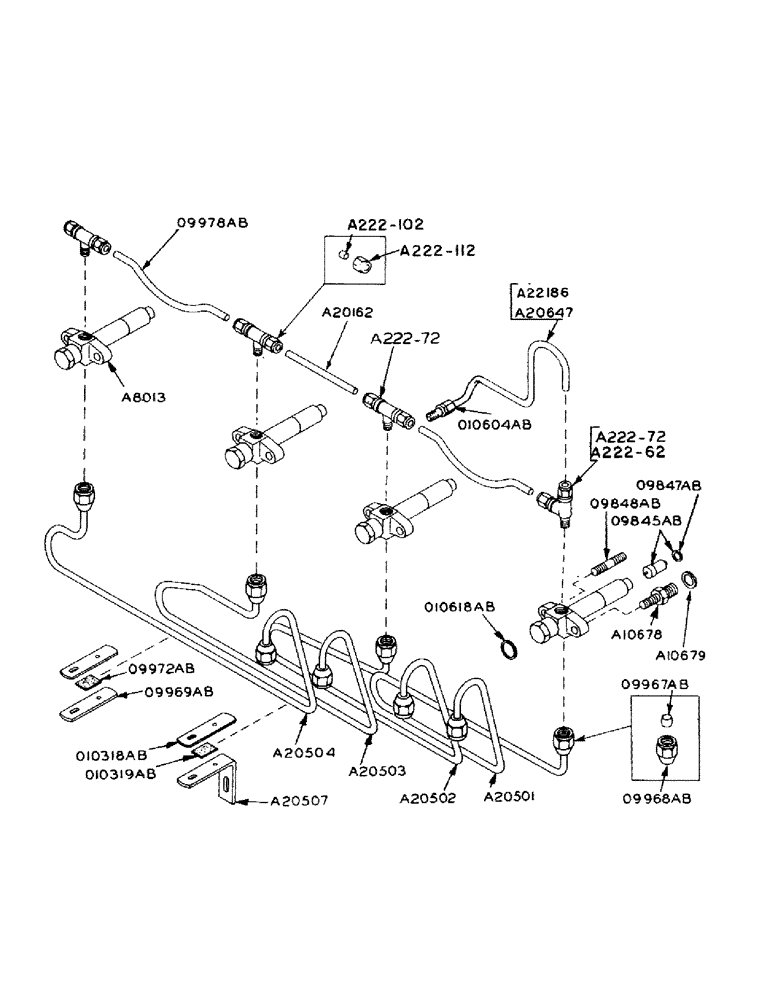

Запчасти Case IH 800 (231) - FUEL INJECTOR NOZZLE AND TUBES (10) - ENGINE

A222-62

TEE - 1/4" x 1/8" P.T. (at no. 1 injector) (#71 FL) for A20647

1шт.

A222-72

TEE - 1/4" x 1/8" P.T. (#72FL) - use 4 with A22186 tube & at #2, #3 & #4 injector with A20647 tube use 3

4шт.

A8013

NOZZLE INJECTION

NOZZLE - injector, with holder and gasket

4шт.

A10678

STUD

- nozzle holder, large

4шт.

3/8" N.F. hex. nut

4шт.

A10679

GASKET

- injector nozzle holder (A10678)

4шт.

A20162

TUBE

- injector leak-off

1шт.

A20501

TUBE

- fuel injector, with sleeves and nuts, for no. 1 cylinder

1шт.

A20502

TUBE

- injector, with sleeves and nuts, for no. 2 cylinder

1шт.

A20503

TUBE

- injector, with sleeves and nuts, for no. 3 cylinder

1шт.

A20504

TUBE

- injector, with sleeves and nuts, for no. 4 cylinder

1шт.

A20507

CLAMP - injector tube (4 tubes)

1шт.

5/16" x 3/4" N.C. hex. bolt w/shakeproof ext.-int. lockwasher

1шт.

A20647

TUBE - leak-off from pump to no. 1 injector (frontmounted filter)

1шт.

A22186

TUBE

- leak-off from pump to no. 1 injector (sidemounted final filter).

1шт.

09845AB

NOZZLE - injector, with 09847AB gasket

4шт.

09847AB

GASKET - injector nozzle

4шт.

09848AB

STUD - nozzle, small

4шт.

3/8" N.F. hex. nut

4шт.

09967AB

SLEEVE - injector tube coupling

8шт.

09968AB

NUT - injector tube

8шт.

09969AB

CLAMP - injector tube (3 tubes)

2шт.

No. 10 x 1" N.C. rhd. mach. screw w/hex. nut and lockwasher

2шт.

09972AB

CUSHION - injector tube, for 09969AB clamps

2шт.

09978AB

TUBE - injector leak-off

2шт.

010318AB

CLAMP - injector tube (4 tubes)

1шт.

No. 10 x 1" rhd. mach. screw w/hex. nut and lockwasher

2шт.

010319AB

CUSHION - injector tube, for 010319AB and A20507 clamps

2шт.

010604AB

CONNECTION - fuel pump leak-off check valve

1шт.

010618AB

GASKET - injector pressure adjusting screw protective cap

4шт.
