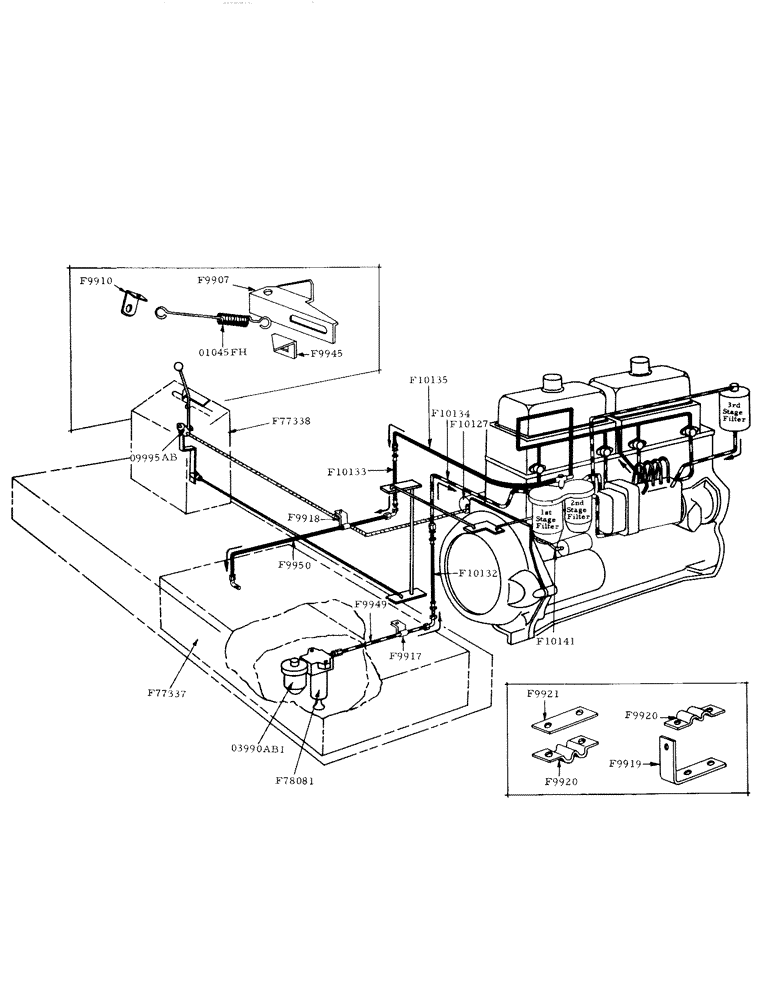

Запчасти Case IH 800 (228) - DIESEL FUEL SYSTEM (10) - ENGINE

A20964

HEATER ASSY.

HEATER - manifold, 12 volt (see diesel intake & exhaust manifolds)

1шт.

F9907

LEVER - throttle shut-off

1шт.

1/4" x 7/8" N.C. rd. hd. mach. screw w/dbl. hex. nut and plain washer

1шт.

F9910

CLIP - spring, throttle shut-off

1шт.

1/4" x 5/8" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

F9917

CLIP - for fuel line F9949

1шт.

3/8" x 3/4" N.F. hex. bolt w/lockwasher

1шт.

F9918

CLIP - for F9950 return line

1шт.

F9919

HANGER - for F9920 clip

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F9920

CLIP - double, for fuel lines F10134 and F10135

1шт.

3/8" x 1/2" N.C. hex. bolt w/lockwasher

2шт.

F9921

BACK PLATE, fuel line clip F9920

1шт.

F9945

STOP - throttle idle

1шт.

F9949

TUBE - tank to flexible connection

1шт.

3/8" tube x 1/4" pipe thread (Imperial connector #68FL)

1шт.

F9950

TUBE - return flexible, Serial Range: connection-tank

1шт.

5/16" tube x 1/4" pipe thread (Imperial elbow #69FL)

1шт.

F10127

SOLENOID - heater

1шт.

#10 x 1/2" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

F10132

LINE - flexible fuel (includes 2-#2037 fittings) joins F9949 and F10134

1шт.

3/8" tube x 1/4" pipe thread elbow (Imperial #70FL)

1шт.

F10133

LINE - return, flexible fuel (includes 2-1/8" #4165 fittings) joins, Serial Range: F10135-F9950

1шт.

5/16" tube x 1/8" pipe thread elbow (Imperial #70FL)

1шт.

F10134

LINE - fuel, flexible connection to 1st stage filter

1шт.

3/8" tube x 1/4" pipe thread connector (Imperial #66FL)

1шт.

F10135

LINE - return, tee to flexible connection

1шт.

5/16" tube x 1/8" pipe thread connector (Imperial #66FL)

1шт.

F10141

CABLE - starter solenoid to heater solenoid

1шт.

F10142

CABLE

- heater solenoid to heater manifold (see Electrical System)

1шт.

F77337

FUEL TANK

1шт.

F77338

PANEL - instrument, diesel engine

1шт.

F78081

PUMP - hand fuel primer, see note

1шт.

1/8" pipe thread x 1/4" pipe thread (Imperial reducing nipple #123B)

1шт.

09995AB

SWITCH - starter, for diesel manifold heat

1шт.

01045FH

SPRING - throttle shut off

1шт.
