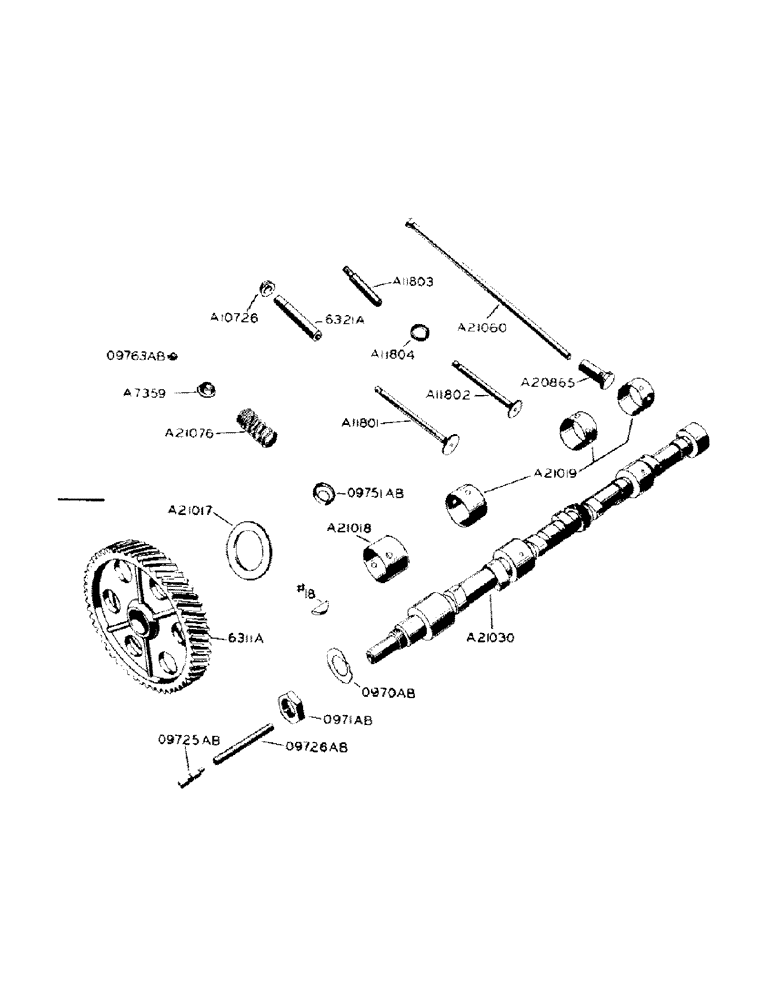

Запчасти Case IH 800 (223) - VALVES, PUSH RODS AND CAMSHAFT (10) - ENGINE

A7359

RETAINER - inlet valve spring (use A21657)

4шт.

A10726

SEAL

SHIELD - rubber, intake valve spring

4шт.

A11801

VALVE

- inlet (use A21712)

4шт.

A11802

VALVE - exhaust (use A21713)

4шт.

A11803

GUIDE

- exhaust valve (use A21674)

4шт.

A11804

INSERT - exhaust valve seat (use A21681)

4шт.

A20865

TAPPET

LIFTER - push rod (use A21653) (see A22463)

8шт.

A21017

WASHER

- camshaft thrust

1шт.

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- camshaft, front (use A21661)

1шт.

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- camshaft, second, third and rear (use A21661)

3шт.

A21030

X

CAMSHAFT

1шт.

A21060

ROD

- push

8шт.

A21076

SPRING

- inlet and exhaust valve (use A21694)

8шт.

A21653

KIT

SET OF 4 - A20865 valve lifters (see A22463)

2шт.

A21656

RETAINER

SET OF 4 - 09763AB valve locks

4шт.

A21657

LOCK

SET OF 4 - 09763AB valve locks and 2 - A7359 retainers

2шт.

A21661

X

SET OF 4 CAMSHAFT BUSHINGS (1 - A21018, 3 - A21019)

1шт.

A21671

GUIDE

SET OF 2 - 6321A inlet valve guides

2шт.

A21674

GUIDE

SET OF 2 - A11803 exhaust valve guides

2шт.

A21681

KIT

SET OF 2 - A11804 exhaust valve seat inserts

2шт.

A21694

SPRING

SET OF 4 - A21076 valve springs

2шт.

A21712

VALVE

SET OF 4 - A11801 inlet valves

1шт.

A21713

KIT

SET OF 4 - A11802 exhaust valves

1шт.

A21857

TAPPET

LIFTER - push rod (.010" oversize) (use A22463)

4шт.

A22463

KIT

- valve push rod lifter (consists of 4 - A21857)

2шт.

6311A

X

GEAR - camshaft

1шт.

#18 Woodruff key

1шт.

6321A

GUIDE - inlet valve (use A21671)

4шт.

0970AB

LOCKWASHER - camshaft nut

1шт.

0971AB

NUT - camshaft (1-1/8" N.C. hex.)

1шт.

09725AB

PLUNGER - camshaft thrust

1шт.

09726AB

SPRING - camshaft thrust plunger

1шт.

09751AB

SEAT - inlet and exhaust valve spring

8шт.

09763AB

LOCK - valve springs retainer (2 per valve) (use A21656)

16шт.
