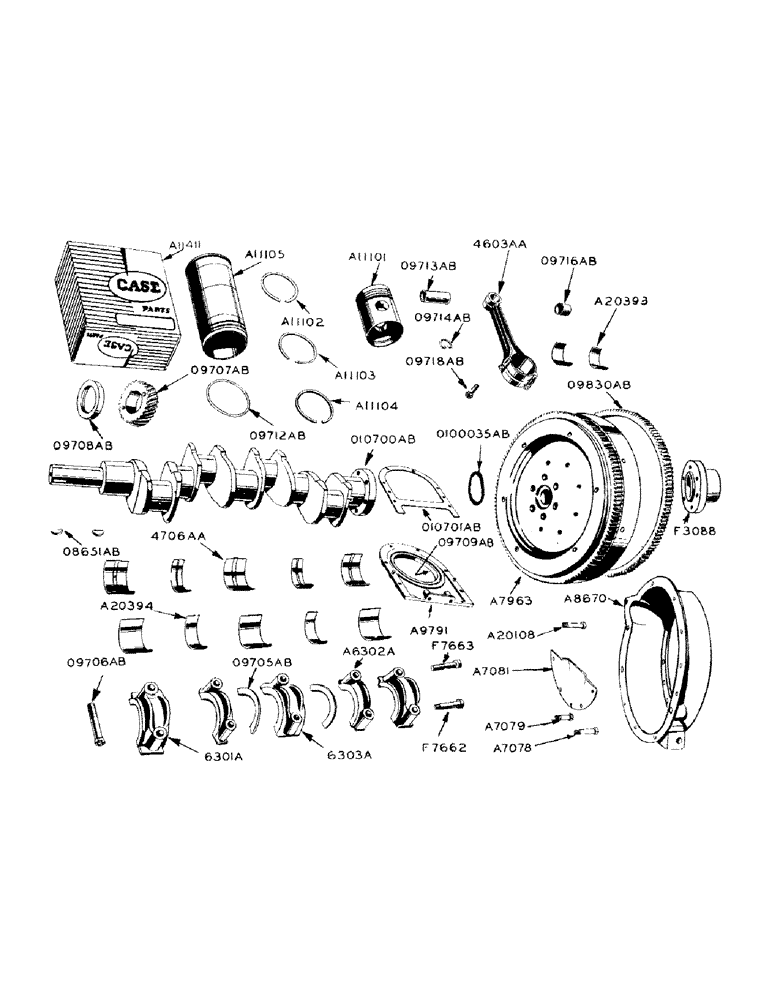

Запчасти Case IH 800 (218) - PISTONS AND CONNECTING RODS (10) - ENGINE

A11101

PISTON

(see A11411)

4шт.

A11102

RING

- piston, top (see note)

4шт.

A11103

RING

- piston, second and third (see note)

8шт.

A11104

RING

- piston, oil (see note)

4шт.

A11105

X

SLEEVE - cylinder

4шт.

A11411

SET OF (2) CYLINDER SLEEVES, pistons, rings and piston pins

2шт.

A11413

PACKAGE, RINGS

RINGS - piston, set of (16) perfect circle 2-in-1 chrome

1шт.

A20393

LINING

LINERS - connecting rod bearing, top and bottom half (std. size)

4шт.

A20569

JOURNAL

LINERS - connecting rod bearing, top & bottom half (.002" undersize)

4шт.

A20571

BEARING LINER

LINERS - connecting rod bearing, top & bottom half (.010" undersize)

4шт.

A20573

KIT

LINERS - connecting rod bearing, top & bottom half (.020" undersize)

4шт.

A20576

LINING

LINERS - connecting rod bearing, top & bottom half (.030" undersize)

4шт.

A21721

BUSHING

SET OF 2 - 09716AB piston pin bushings

2шт.

A21723

PIN

SET OF 2 - 09713AB piston pins and 4 - 09714AB retainers

2шт.

4603AA

X

ROD - connecting, with cap, bushing and bolts

4шт.

09712AB

"O" RING - cylinder sleeve

8шт.

09713AB

PIN - piston (use A21723)

1шт.

09714AB

RING - piston pin retainer (see A21723)

8шт.

09716AB

BUSHING - piston pin (use A21721)

1шт.

09718AB

BOLT - connecting rod

8шт.

A7151

SUPPORT

FLYWHEEL (use A7963), crankshaft

1шт.

A7182

KIT

LINERS - crankshaft bearing (wide-upper & lower) (.002" undersize)

3шт.

A7188

BEARING LINER

LINERS - crankshaft bearing (wide-upper & lower) (.010" undersize)

3шт.

A7194

KIT

LINERS - crankshaft bearing (wide-upper & lower) (.020" undersize)

3шт.

A7200

KIT

LINERS - crankshaft bearing (wide-upper & lower) (.030" undersize)

3шт.

A7204

WASHER

- crankshaft thrust (.006" oversize) (see 09705AB)

2шт.

A7963

FLYWHEEL with 09830AB ring gear, crankshaft

1шт.

F9791

RETAINER - crankshaft rear oil seal

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher, crankshaft

6шт.

A20394

LINING

LINERS - crankshaft bearing (narrow-upper and lower) (std. size)

2шт.

A20579

LINING

LINERS - crankshaft bearing (narrow-upper & lower) (.002" undersize)

2шт.

A20582

LINING

LINERS - crankshaft bearing (narrow-upper & lower) (.010" undersize)

2шт.

A20585

KIT

LINERS - crankshaft bearing (narrow-upper & lower) (.020" undersize)

2шт.

A20588

KIT

LINERS - crankshaft bearing (narrow-upper & lower) (.030" undersize)

2шт.

F3088

HUB - engine output shaft, crankshaft

1шт.

F7662

BOLT - dowel, flywheel, crankshaft

2шт.

F7663

BOLT - flywheel, crankshaft

4шт.

6301A

CAP - crankshaft bearing wide

2шт.

A6302A

X

CAP - crankshaft bearing, narrow

2шт.

6303A

CAP - crankshaft thrust bearing

1шт.

4706AA

X

LINERS - crankshaft bearing (wide-upper and lower) (std. size)

3шт.

08651AB

KEY - Woodruff, for crankshaft

2шт.

09705AB

WASHER - crankshaft thrust (std. size) (see A7204)

2шт.

09706AB

SCREW - crankshaft bearing cap

10шт.

09707AB

GEAR - crankshaft

1шт.

09708AB

OIL SEAL - crankshaft, front

1шт.

09709AB

OIL SEAL - crankshaft, rear

1шт.

09710AB

PIN - dowel, for A9791 retainer, crankshaft

2шт.

09830AB

RING GEAR - flywheel, crankshaft

1шт.

010700AB

CRANKSHAFT

1шт.

010701AB

GASKET - crankshaft rear oil seal retainer

1шт.

A7078

STEP BOLT

- dowel, cylinder block to flywheel housing, long

1шт.

1/2" N.F. hex. nut and lockwasher, flywheel housing

1шт.

A7079

TUBE

BOLT - dowel, cylinder block to flywheel housing, short

1шт.

1/2" N.F. hex. nut and lockwasher, flywheel housing

1шт.

A7081

BEARING

SHIELD - dust, flywheel housing

1шт.

1/2" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher, flywheel housing

4шт.

A8670

HOUSING - flywheel

1шт.

3/8" x 3/4" N.C. hex. bolt, flywheel housing

4шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher, flywheel housing

3шт.

1/2" x 1-3/4" N.F. hex. bolt w/hex. nut, flywheel housing

3шт.

1/4" sq. hd. pipe plug, flywheel housing

1шт.

A20108

BOLT - cylinder block and flywheel housing

2шт.

3/4" N.C. hex. nut and lockwasher, flywheel housing

2шт.

A22299

KIT

GASKETS - valve grind

1шт.

GASKET KIT - valve grind, includes the following: (4) ring - rubber, cylinder head gasket A7669, (2) gasket - intake manifold A11888, (4) gasket - exhaust manifold A11889, (1) gasket - intake manifold elbow A21055, (2) gasket - cylinder head A21517, (2) "o" ring - cylinder head oil passage 08569AB, (2) "O" ring - rocker arm shaft tube 09772AB, (2) gasket - decompressor lever housing 09784AB, (4) gasket - water manifold 09804AB1, (2) gasket - cylinder head cover 09959AB, (1) gasket - thermostat housing 0107

1шт.
