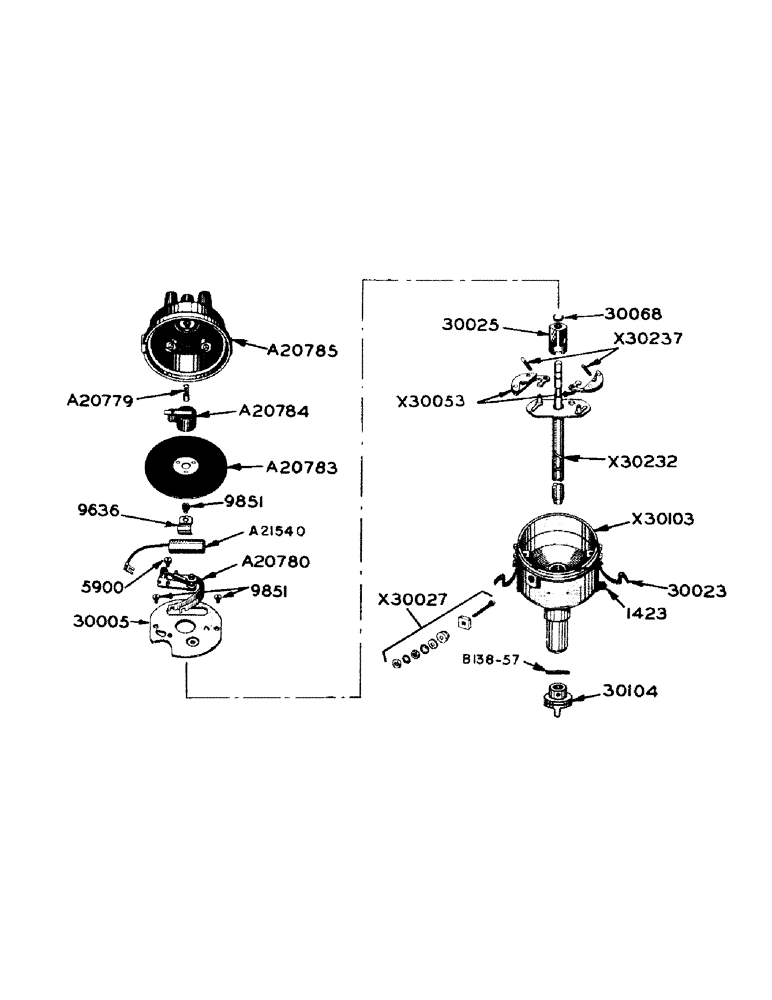

Запчасти Case IH 800 (215) - PARTS FOR A20992 DISTRIBUTOR (10) - ENGINE

A20779

BRUSH AND SPRING (Wico #X30073)

1шт.

This part does not have to be obtained from a Wico service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from a Wico service station.

1шт.

A20780

CONTACT

SET (Wico #X30072)

1шт.

This part does not have to be obtained from a Wico service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from a Wico service station.

1шт.

A20783

SEAL

DUST SEAL (Wico #X30036)

1шт.

This part does not have to be obtained from a Wico service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from a Wico service station.

1шт.

A20784

ROTOR

(Wico #X30039)

1шт.

This part does not have to be obtained from a Wico service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from a Wico service station.

1шт.

A20785

CAP

(Wico #30042)

1шт.

This part does not have to be obtained from a Wico service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from a Wico service station.

1шт.

A21540

CONDENSER

(Wico #X30028)

1шт.

This part does not have to be obtained from a Wico service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from a Wico service station.

1шт.

B138-57

ROLL PIN - 1/8" x 3/4", for 30104 coupling (Wico #9828)

1шт.

This part does not have to be obtained from a Wico service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from a Wico service station.

1шт.

1423

BOLT,Hex, 1" - 8 x 6", Gr 5

OILER

1шт.

5900

SCREW - contact set clamp

1шт.

9636

DECAL

CLAMP - condenser

1шт.

9851

TOOL KIT

SCREW - breaker clamp and condenser clamp

3шт.

9929

PLASTIC PLUG

PROTECTOR - terminal, coil wire (not illustrated)

1шт.

30005

CABLE

PLATE - breaker

1шт.

30023

O-RING

CLIP - spring

2шт.

30025

CAM - breaker

1шт.

X30027

BATTERY CONNECTION SET

1шт.

X30053

WEIGHT - advance and stop (set of 2)

1шт.

30068

RING - breaker cam retaining

1шт.

X30103

HOUSING

1шт.

30104

COUPLING

1шт.

X30232

SHAFT - drive

1шт.

X30237

SPRING - advance (set of 2)

1шт.
