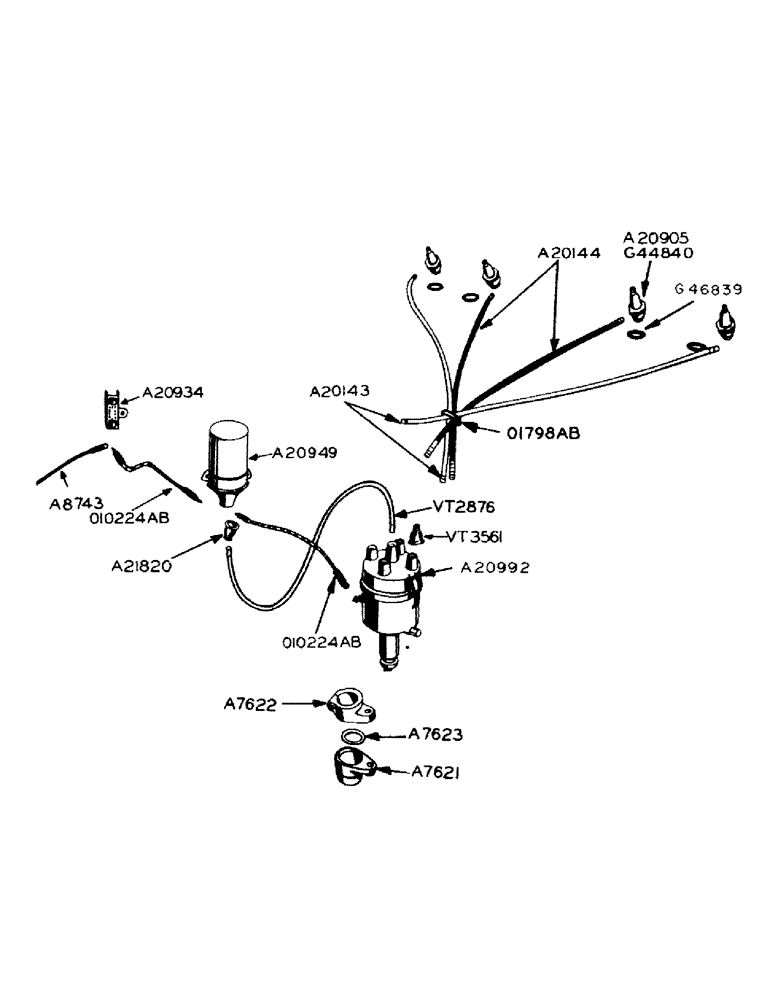

Запчасти Case IH 800 (214) - DISTRIBUTOR IGNITION (10) - ENGINE

A7621

INSERT - distributor support

1шт.

A7622

CLAMP - distributor

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

1шт.

5/16" x 1-1/4" N.C. hex. bolt w/lockwasher

1шт.

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor

1шт.

A8743

WIRE - starter, Serial Range: solenoid-resistor

1шт.

A20143

ELECTRICAL WIRE

WIRE - spark plug, to no. 1 & no. 4 cylinders

2шт.

A20144

ELECTRICAL WIRE

WIRE - spark plug, to no. 2 and no. 3 cylinders

2шт.

A20905

SPARK PLUG

PLUG - spark, 18MM (Champion #D9 commercial). Includes 07769AB gasket. (LP-gas). See G44840

4шт.

A20934

X

RESISTOR - for 12 volt applicator (Wico #X30061B)

1шт.

5/16" x 1/2" N.C. hex. bolt w/lockwasher

1шт.

A20949

X

COIL - ignition, 12 volt, with resistor (Wico #X30081)

1шт.

5/16" x 5/8" N.C. rhd. mach. screw w/shakeproof ext.-int. lockwasher #4018-24

2шт.

A20992

X

DISTRIBUTOR (Wico #X30230B)

1шт.

A21820

X

NIPPLE - ignition coil wire

1шт.

G44840

SPARK PLUG

PLUG - spark, 18MM (Champion #8 commercial). Includes 07769AB gasket - (gasoline)

4шт.

G46839

GASKET

- spark plug

4шт.

01798AB

RING - ignition cable

1шт.

010224AB

WIRE - coil to distributor and, Serial Range: resistor-coil

2шт.

VT2876

X

WIRE - ignition, distributor to coil (12" long)

1шт.

VT3561

X

NIPPLE - distributor and spark plug wires

5шт.
