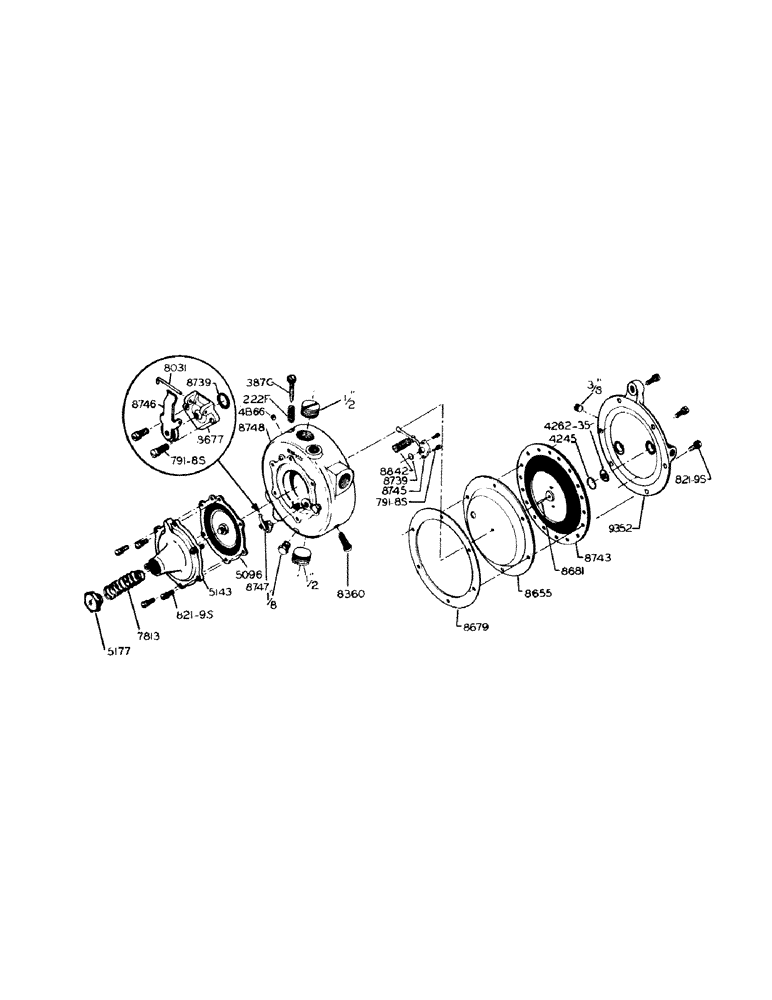

Запчасти Case IH 800 (211) - A21231 REGULATOR PARTS ENSIGN MODEL W, NUMBER 9261 (10) - ENGINE

4B66

SCREW - "B" bleed

1шт.

222F

SPRING - retainer, idle adjusting screw

1шт.

387C

SCREW - idle adjusting

1шт.

791-8S

SCREW - high and low pressure valve, with lockwasher

4шт.

821-9S

SCREW - cover and back cover plate, with lockwasher

12шт.

2444

ELEMENT

KIT - gasket (consists of 1-8679 and 2-8739)

1шт.

4245

SEAL KIT

RING - retainer

1шт.

4262-35

COMPENSATOR - assembly

1шт.

5096

JACK

DIAPHRAGM - pressure regulator

1шт.

5143

KIT

COVER - pressure regulator

1шт.

5177

RETAINER - pressure regulator spring

1шт.

7813

SPRING - pressure regulator

1шт.

8031

RIGID TUBE

PIN - pivot

1шт.

8360

STRAINER - fuel inlet, assembly

1шт.

8655

TUBE

PLATE - partition

1шт.

8677

SEAT - valve, high pressure

1шт.

8679

PLUG

GASKET - partition plate

1шт.

8681

ROLLER

PIN - push

1шт.

8739

KEY

"O" RING, high and low pressure valve

2шт.

8743

BEARING,15.88mm ID x 34.93mm OD x 11mm W

DIAPHRAGM - fuel regulator, assembly

1шт.

8745

BOLT

VALVE - low pressure, assembly

1шт.

8746

HYDRAULIC MOTOR

LEVER - valve, assembly

1шт.

8747

COUPLING

VALVE - high pressure, assembly

1шт.

8748

SPACER

BODY - regulator, partial assembly

1шт.

3/8" pipe plug

1шт.

1/2" pipe plug

2шт.

8842

HUB

SPRING - low pressure valve

1шт.

9352

HYDRAULIC HOSE

PLATE - back cover

1шт.

1/8" pipe plug

2шт.
