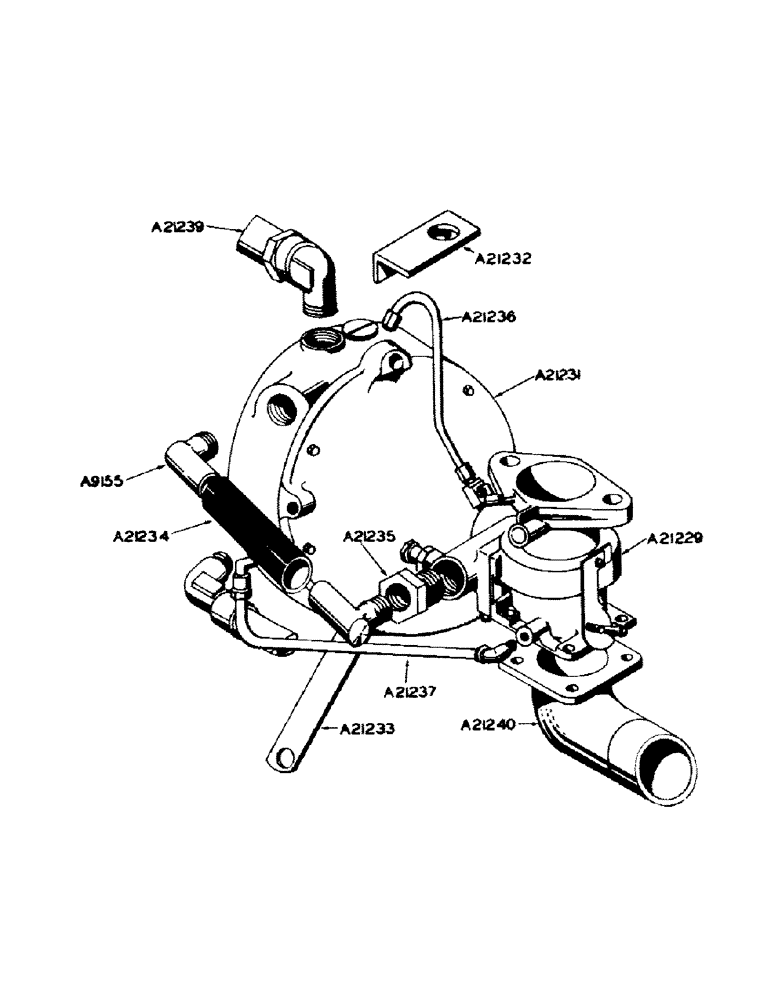

Запчасти Case IH 800 (210) - REGULATOR L.P. GAS (10) - ENGINE

A222-412

CONNECTOR (1/2" tube x 3/8" P.T.) #88LB, A21239 at water pump

1шт.

A222-437

ELBOW (3/8" tube x 1/4" P.T.) #89 LB, regulator at fuel inlet

1шт.

A222-442

ELBOW (1/2" tube x 3/8" P.T.) #89LB, both ends of A21238 & regulator end of A21239

3шт.

A9155

90 ELBOW

- carburetor and regulator vapor

2шт.

A21231

REGULATOR (Ensign model "W" 9261)

1шт.

A21232

BRACKET - inlet manifold to regulator support

1шт.

3/8" x 3/4" N.C. hex. bolt

1шт.

5/16" x 1" N.F. hex. bolt w/hex nut and lockwasher

1шт.

A21233

STRAP - lube oil filter base to regulator support

1шт.

1/2" x 1-3/4" N.C. hex bolt w/lockwasher

1шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher

1шт.

A21236

TUBE - regulator to economizer tee

1шт.

A21237

TUBE - carburetor to regulator balance

1шт.

A21238

TUBE - water, Serial Range: outle-regulator

1шт.

F21239

TUBE - regulator to water pump

1шт.

D222-434

ELBOW (5/16" tube x 1/8" P.T.) #89LB, both ends of A21237

2шт.

G222-401

CONNECTOR (3/16" tube x 1/8" P.T.) #88LB, A21236 at regulator

1шт.

A10029

STUD - carburetor LP gas

2шт.

3/8" N.F. hex nut w/lockwasher, carburetor LP gas

2шт.

A21229

STIFFENER

CARBURETOR - with economizer (Ensign XG 1-1/4" #9262), LP gas

1шт.

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Carburetor and regulator vapor elbow connection, LP gas 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

#4-3/4 hose clamp (1-1/8" O.D. hose), carburetor LP gas

2шт.

A21235

FITTING

ADAPTER - carburetor to elbow, LP gas

1шт.

A21240

ELBOW - air cleaner adapter, carburetor LP gas

1шт.

#12 - 24 x 5/8" N.C. rhd. mach. screw w/lockwasher, carburetor LP gas

4шт.

08950AB

GASKET - carburetor to air cleaner elbow, LP gas

1шт.
