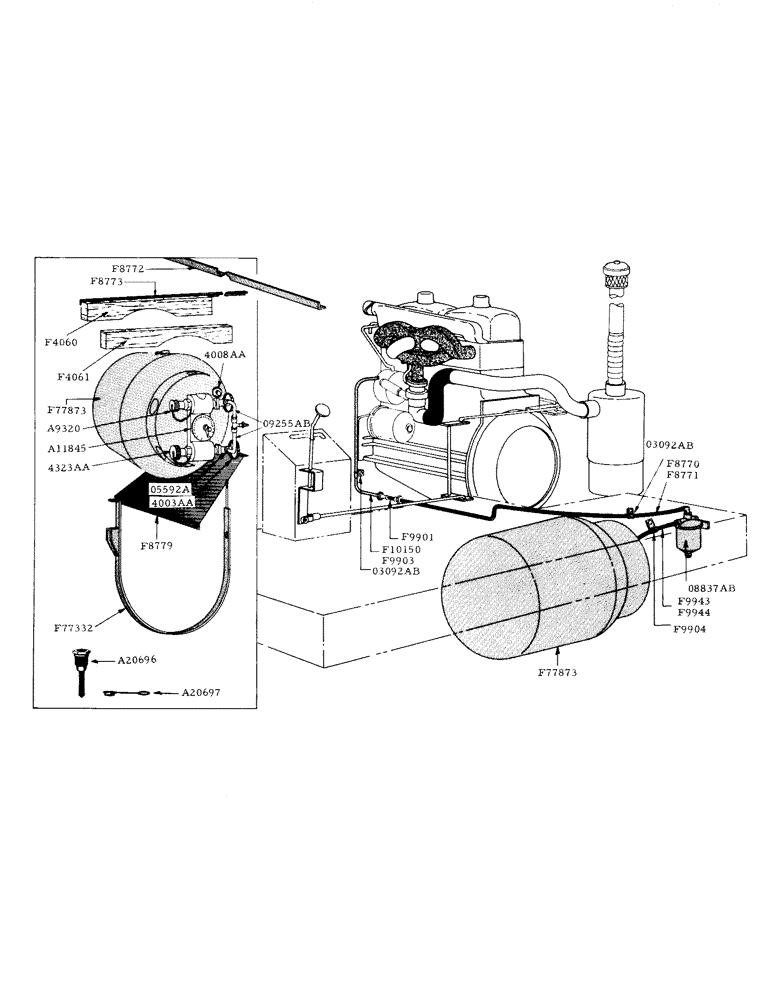

Запчасти Case IH 800 (208) - L.P. FUEL SYSTEM (10) - ENGINE

A9320

VALVE - vapor return

1шт.

A11845

ROTOPAGE

1шт.

A20696

SEAL

VALVE - safety relief with A20697 cap

1шт.

A20697

WIPER

CAP - safety relief valve

1шт.

F4060

BLOCK - front, fuel tank

1шт.

1/4" x 2-1/4" carr. bolt w/hex. nut and lockwasher

1шт.

F4061

BLOCK - rear, fuel tank

1шт.

1/4" x 1-1/4" carr. bolt w/hex. nut and lockwasher

1шт.

F8770

TUBE - filter to flexible connector

1шт.

F8771

LOOM - for F8770 tube

1шт.

F8772

ANGLE - tank support reinforcement

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex.

1шт.

1/4" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

5шт.

F8773

ANGLE - tank support cross

1шт.

1/2" x 1" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F8779

PLATE - brace, fuel tank strap

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

2шт.

F9901

CONNECTOR - flexible, joining F8770 line to F10150 line

1шт.

3/8" tube x 1/4" pipe thrd. connector (Imperial #861B)

2шт.

F9903

LOOM - for F9902 tube

1шт.

F9904

CLIP - for F8769 tube

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F9943

TUBE - tank, Serial Range: fee-filter

1шт.

F9944

LOOM - for E8769 tube

1шт.

F10150

TUBE - flexible, Serial Range: connector-regulator

1шт.

3/8" tube x 1/4" pipe thrd. connector (Imperial #891B)

1шт.

F77332

STRAP - tank support

2шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

1/2" plain washer

5шт.

F77873

TANK - fuel (includes 1-A20696 valve, 1-A20697 cap, 1-A9320 valve, 1-A11845 rotogage, 2-4003AA valves, 1-4008AA valve)

1шт.

05592A

NUT - (3/8") for 09255AB tube

2шт.

4003AA

X

VALVE - vapor and liquid outlet

2шт.

4008AA

GAUGE - fixed fuel level

1шт.

4323AA

VALVE - liquid filter (3/4" pipe thrd.)

1шт.

03092AB

CLIP - for fuel lines F10150 and F8770

4шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

08837AB

FILTER - liquid (ensign no. 6257)

1шт.

3/8" tube x 1/4" pipe thrd. connector (Imperial #881B)

1шт.

3/8" tube x 1/4" pipe thrd. elbow (Imperial #891B)

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

09255AB

TUBE - tank valve to tee (includes 05592A nut)

2шт.

3/8" tube size tee (Imperial #84LB)

1шт.
