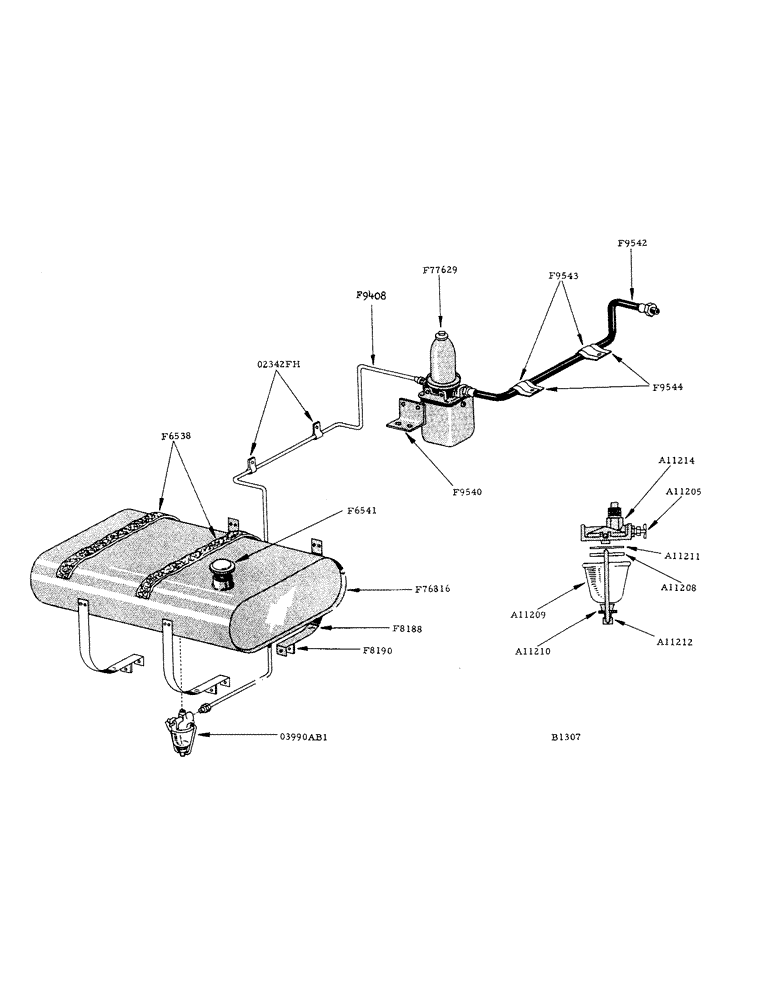

Запчасти Case IH 800 (204) - FUEL TANK (10) - ENGINE

F6538

CUSHION - felt, fuel tank

2шт.

F6541

CAP

- fuel tank

1шт.

F8188

STRAP - fuel tank support

4шт.

5/16" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

3/8" x 2" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

2шт.

F8190

WASHER - fuel tank strap

4шт.

F9408

LINE - (5/16" O.D.) fueld tank to fuel pump

1шт.

F9900

SHIELD - fuel strainer (not shown)

1шт.

F76816

TANK - fuel

1шт.

03990AB1

STRAINER - fuel - complete

1шт.

02342FH

CLIP - fuel line

2шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

A11205

VALVE

- needle, fuel strainer

1шт.

A11208

GASKET

- cork, fuel strainer

1шт.

A11209

BOWL

- glass, fuel strainer

1шт.

A11210

ADJUSTER

CUP AND NUT ASSEMBLY, fuel strainer

1шт.

A11211

FILTER SCREEN

SCREEN, fuel strainer

1шт.

A11212

BAIL

ASSEMBLY, fuel strainer

1шт.

A11214

HEAD

- strainer, fuel

1шт.

03990AB1

STRAINER - fuel - complete

1шт.

F9540

BRACKET - fuel pump mounting

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher, fuel pump

2шт.

F9542

LINE - (42" long) fuel, Serial Range: pump-carburetor

1шт.

5/16" O.D. x 1/8" N.P.T. Imperial brass elbow #68FL, fuel pump

2шт.

F9543

CLAMP - fuel lin, pump

2шт.

1/4" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher, fuel pump

2шт.

F9544

COVER - fuel line (canvas), pump

2шт.

F77629

PUMP - fuel (Auto Pulse electric model #12V511)

1шт.
