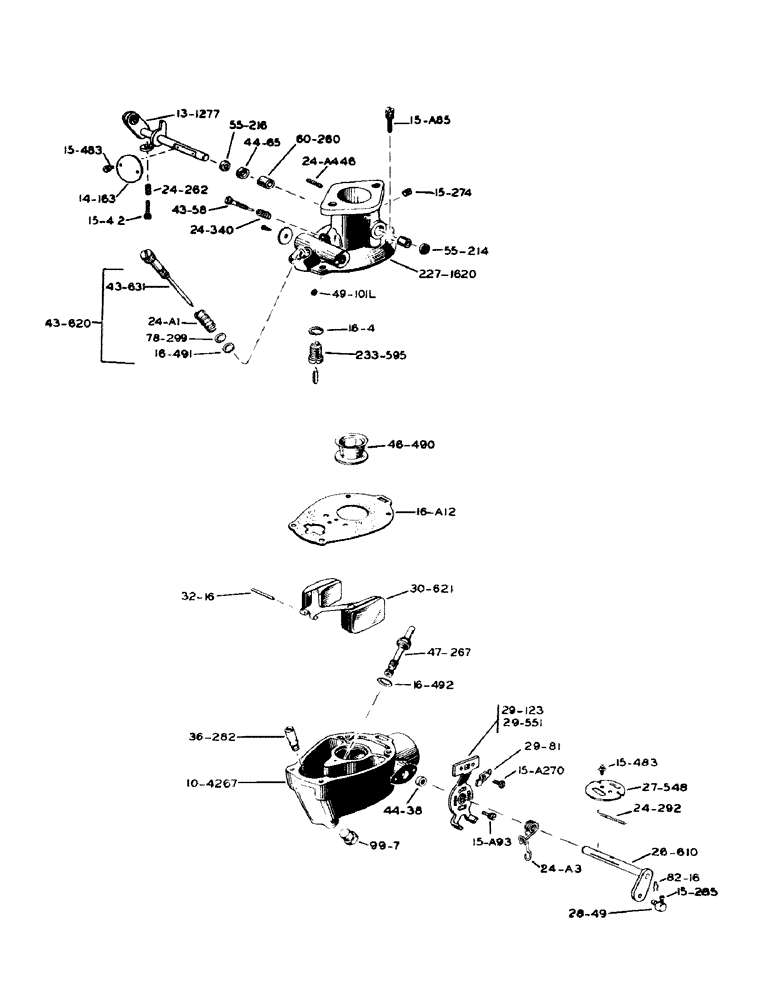

Запчасти Case IH 800 (202) - A20813 MARVEL-SCHEBLER CARBURETOR MODEL TSX-785 (10) - ENGINE

10-4267

CARBURETOR BODY ASSEMBLY

1шт.

13-1277

THROTTLE SHAFT AND LEVER ASSEMBLY

1шт.

Included in 286-1282 service parts kit.

1шт.

14-163

SHAFT

THROTTLE - fly 22deg. 3/64 offset

1шт.

15-42

SCREW (#8-32 x 3/4 fillister head) (throttle stop)

1шт.

15-274

SCREW (5/16-24 headless plug)

1шт.

15-285

SCREW (#8-32 x 5/16") (choke swivel)

1шт.

15-483

SCREW (#6-32 x 1/4 fillister head sems.) (choke fly-2) (thr. fly-2)

4шт.

Included in 286-1282 service parts kit.

1шт.

15-A85

SCREW (#12-24 x 3/4" fillister head sems) (throttle, Serial Range: body-bowl)

4шт.

15-A93

SCREW (#8-32 x 3/8 fillister head sems) (choke bracket)

2шт.

15-A270

SCREW (#8-32 x 5/16 sems slotted hex. hd.) (choke bracket clip)

1шт.

16-4

GASKET - float valve seat

1шт.

Included in 16-594 gasket set.

1шт.

16-491

GASKET - power needle

1шт.

Included in 16-594 gasket set.

1шт.

16-492

X

GASKET - nozzle

1шт.

Included in 16-594 gasket set.

1шт.

16-594

GASKET SET, Includes: P/N 16-4, 16-491, 16-492 and 16-A12

1шт.

16-A12

GASKET - throttle, Serial Range: body-bowl

1шт.

Included in 16-594 gasket set.

1шт.

24-262

SPRING - throttle stop screw

1шт.

24-292

SPRING - choke fly flapper

1шт.

24-340

SPRING - idle needle

1шт.

Included in 286-1282 service parts kit.

1шт.

24-A1

SPRING - power needle

1шт.

24-A3

SPRING - choke return

1шт.

Included in 286-1282 service parts kit.

1шт.

24-A446

SPRING - throttle stop

1шт.

26-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 8

CHOKE SHAFT AND LEVER ASSEMBLY

1шт.

27-548

CHOKE FLY ASSEMBLY

1шт.

28-49

SWIVEL - choke

1шт.

29-81

CLIP - choke bracket

1шт.

29-123

BRACKET - choke

1шт.

29-551

CHOKE BRACKET AND CLIP ASSEMBLY

1шт.

30-621

FLOAT AND LEVER ASSEMBLY

1шт.

32-16

SHAFT - float

1шт.

Included in 286-1282 service parts kit.

1шт.

36-282

SEAT - main adjusting needle

1шт.

Included in 286-1282 service parts kit.

1шт.

43-58

NEEDLE - idle adjusting

1шт.

Included in 286-1282 service parts kit.

1шт.

43-620

NEEDLE ASSEMBLY

1шт.

43-631

MAIN ADJUSTING NEEDLE ASSEMBLY

1шт.

44-38

PACKING - choke shaft

1шт.

Included in 286-1282 service parts kit.

1шт.

44-65

PACKING - throttle shaft

1шт.

Included in 286-1282 service parts kit.

1шт.

46-490

VENTURI (1-1/16 throat)

1шт.

47-267

NOZZLE - main

1шт.

49-101L

JET - idle

1шт.

Included in 286-1282 service parts kit.

1шт.

55-214

CUP - throttle shaft

1шт.

Included in 286-1282 service parts kit.

1шт.

55-216

RETAINER - throttle shaft packing

1шт.

Included in 286-1282 service parts kit.

1шт.

78-299

WASHER - power needle

1шт.

82-16

COTTER PIN (choke swivel)

1шт.

99-7

PLUG - bowl drain

1шт.

227-1620

THROTTLE BODY AND BOWL COVER ASSEMBLY

1шт.

233-595

FLOAT VALVE, seat and gasket assembly matched

1шт.

Included in 286-1282 service parts kit.

1шт.

60-260

BUSHING - throttle shaft

2шт.

Included in 286-1282 service parts kit.

1шт.

286-1282

REPAIR KIT, Includes: P/N 13-1277, 15-483, 24-340, 24-A3, 32-16, 36-282, 43-58, 44-38, 44-65, 49-101L, 55-214, 55-216, 233-595 and 60-260

1шт.

A20813

CARBURETOR

- Marvel-Schebler model TSX-785

1шт.

1/8" sq. hd. pipe plug

1шт.

0889AB1

GASKET - carburetor to intake manifold

1шт.
