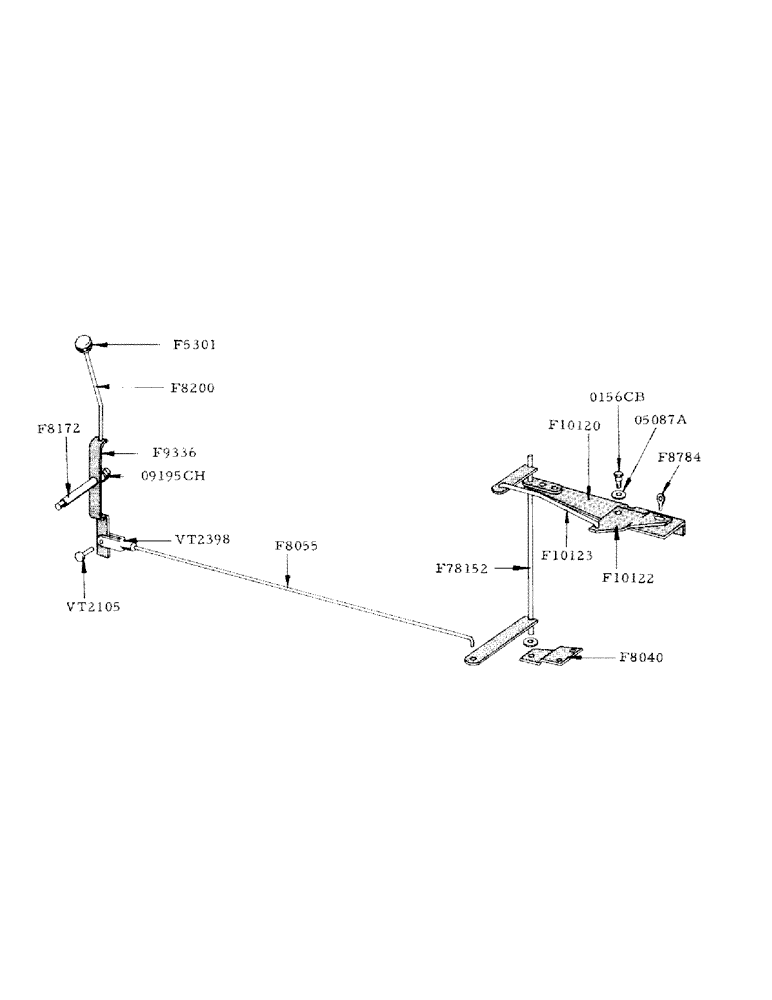

Запчасти Case IH 800 (201) - THROTTLE CONTROL (10) - ENGINE

F5301

KNOB - throttle control

1шт.

F8040

SUPPORT - lower, throttle pivot

1шт.

F8055

ROD - throttle

1шт.

3/32" x 5/8" cotter pin

1шт.

F8172

SHAFT-PIVOT, throttle control

1шт.

F8200

LEVER - throttle control

1шт.

F8784

STUD - throttle rod

1шт.

3/8" N.F. hex. nut

2шт.

F9336

ARM - throttle control arm (see gear shift illus.)

1шт.

F10120

ANGLE - upper throttle pivot support

1шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F10122

BELLCRANK - throttle rod

1шт.

F10123

LINK - pivot, Serial Range: shaft-bellcrank

1шт.

3/32" x 1/2" cotter pin

2шт.

F78152

SHAFT - pivot, throttle control

1шт.

05087A

WASHER (1" O.D. x 17/32" I.D. #16 ga.) for 0156CB bolt

1шт.

0156CB

BOLT - anchor, throttle bellcrank

1шт.

3/8" hex. nut and lockwasher

2шт.

09195CH

NUT - (3/8" - 16 N.C. ESNA #29-066) throttle lever

1шт.

VT2105

X

PIN - for VT2398 clevis

1шт.

1/16" x 1/2" cotter pin

1шт.

VT2398

X

CLEVIS - for F8055 throttle rod

1шт.
