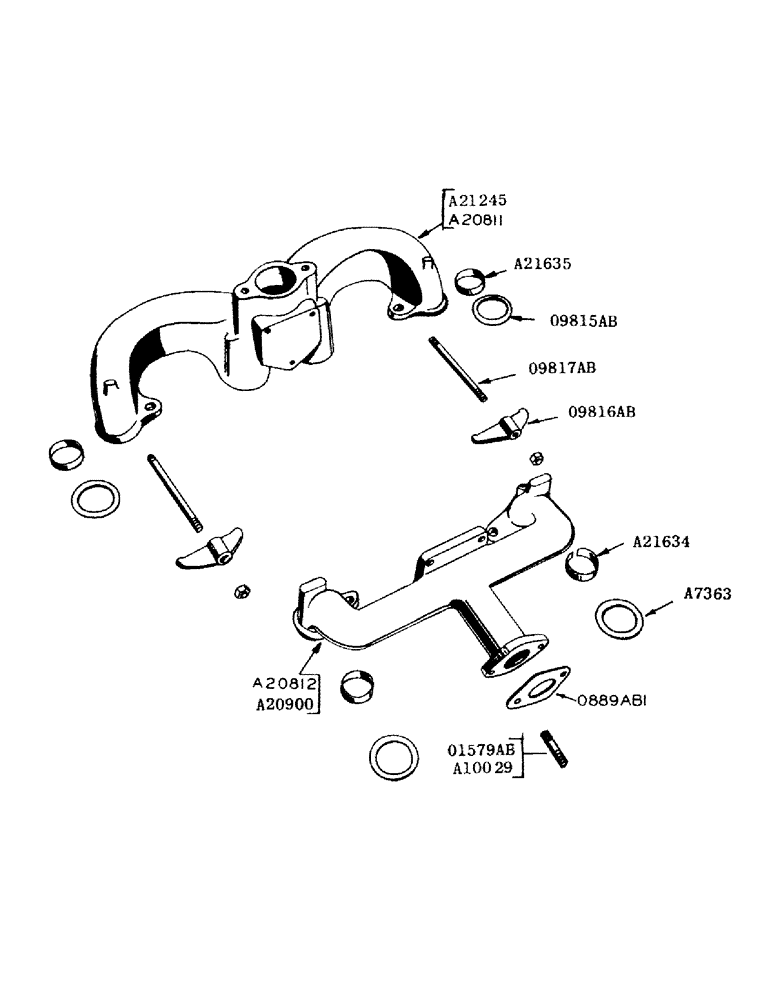

Запчасти Case IH 800 (198) - INTAKE AND EXHAUST MANIFOLD (10) - ENGINE

A7363

MANIFOLD GASKET

- intake manifold (see A22298 gasket kit)

2шт.

A10029

STUD - carburetor to manifold, LP-gas

2шт.

3/8" N.F. hex. nut w/lockwasher

2шт.

A20778

GASKET - intake manifold plug bolt (gasoline) not illustrated

1шт.

5/16" x 1/2" N.C. hex. bolt

1шт.

A20811

MANIFOLD - exhaust, gasoline (see A21245)

1шт.

A20812

X

MANIFOLD - intake gasoline (see A20900)

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher

3шт.

A20900

MANIFOLD - intake, LP-gas (see A20812)

1шт.

A21245

MANIFOLD - exhaust, LP-GAS (SEE A20811)

1шт.

A21634

FERRULE

- intake manifold

2шт.

A21635

FERRULE

- exhaust manifold

4шт.

0889AB1

GASKET - intake manifold to carburetor (see A22298 gasket kit)

1шт.

01579AB

STUD - carburetor to manifold, gasoline

2шт.

3/8" N.F. hex. nut w/lockwasher

2шт.

09815AB

GASKET - exhaust manifold (see A22298 gasket kit)

4шт.

09816AB

CLAMP - intake and exhaust manifold

4шт.

09817AB

STUD - intake and exhaust manifold

4шт.

7/16" N.F. hex. nut

4шт.
