Запчасти Case IH 800 (196) - OIL PUMP (10) - ENGINE

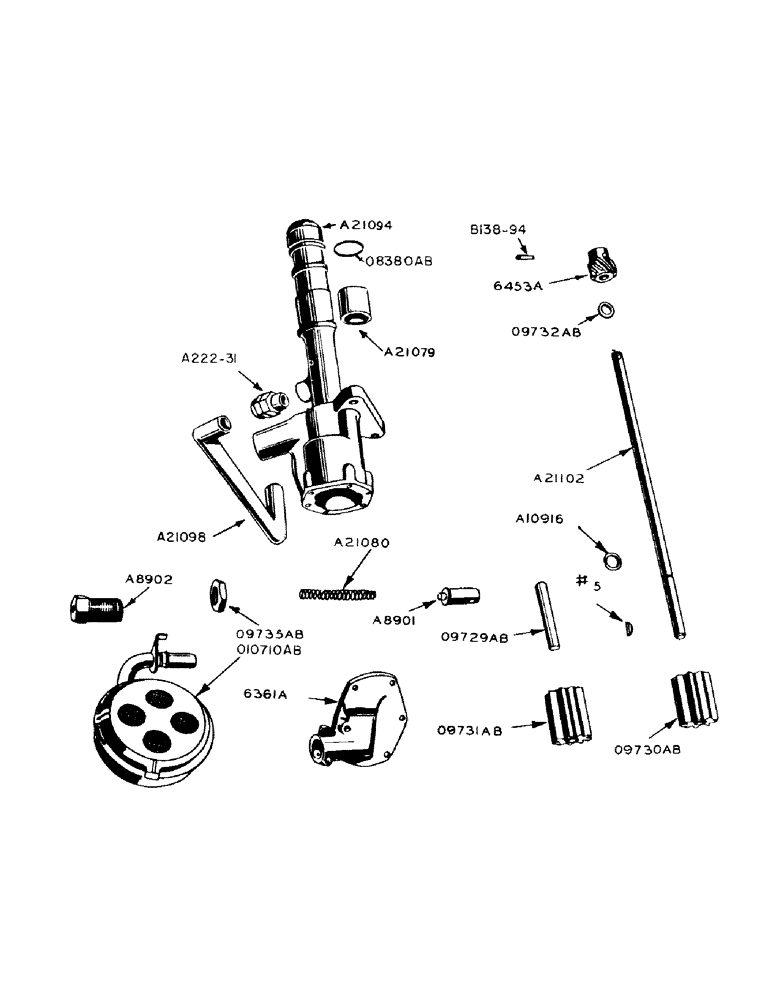

Схема запчастей Case IH 800 - (196) - OIL PUMP (10) - ENGINE

Артикул

Название

Примечание

Количество

A222-31

CONNECTOR (5/8" tube x 1/2" P.T.) both ends of A21098

2шт.

A8901

X

PLUNGER - oil pump relief

1шт.

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, oil pump relief

1шт.

A10916

RING, SNAP

SNAP RING - oil pump drive shaft

1шт.

A20722

PUMP - oil, assembly, less screen

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher

2шт.

A21078

BODY - oil pump (use A21094)

1шт.

A21079

SLEEVE

- oil pump body

1шт.

A21080

X

SPRING - oil pump relief plunger

1шт.

A21094

BODY

- oil pump w/sleeve

1шт.

A21098

TUBE

- oil, Serial Range: pump-filter

1шт.

A21102

SHAFT

- drive, oil pump

1шт.

B138-94

ROLL PIN - 3/16" x 7/8" (drive, Serial Range: gear-shaft)

1шт.

6361A

COVER - oil pump body

1шт.

1/4" x 3/4" N.C. rhd. mach. screw w/lockwasher

5шт.

1/4" x 1-1/2" N.C. hrd. mach. screw w/lockwasher

1шт.

6453A

X

GEAR - oil pump distributor drive

1шт.

08380AB

"O" RING - oil pump body

2шт.

09729AB

SHAFT - stub, oil pump

1шт.

09730AB

GEAR - oil pump, with keyway

1шт.

#5 Woodruff key

1шт.

09731AB

GEAR - oil pump, without keyway

1шт.

09732AB

WASHER - thrust, oil pump drive gear

1шт.

09735AB

NUT - oil pump relief adjusting screw

1шт.

010710AB

SCREEN - oil pump, float-o-type

1шт.

3/32" x 1-1/2" cotter pin

1шт.

Выбрано товаров: 26
