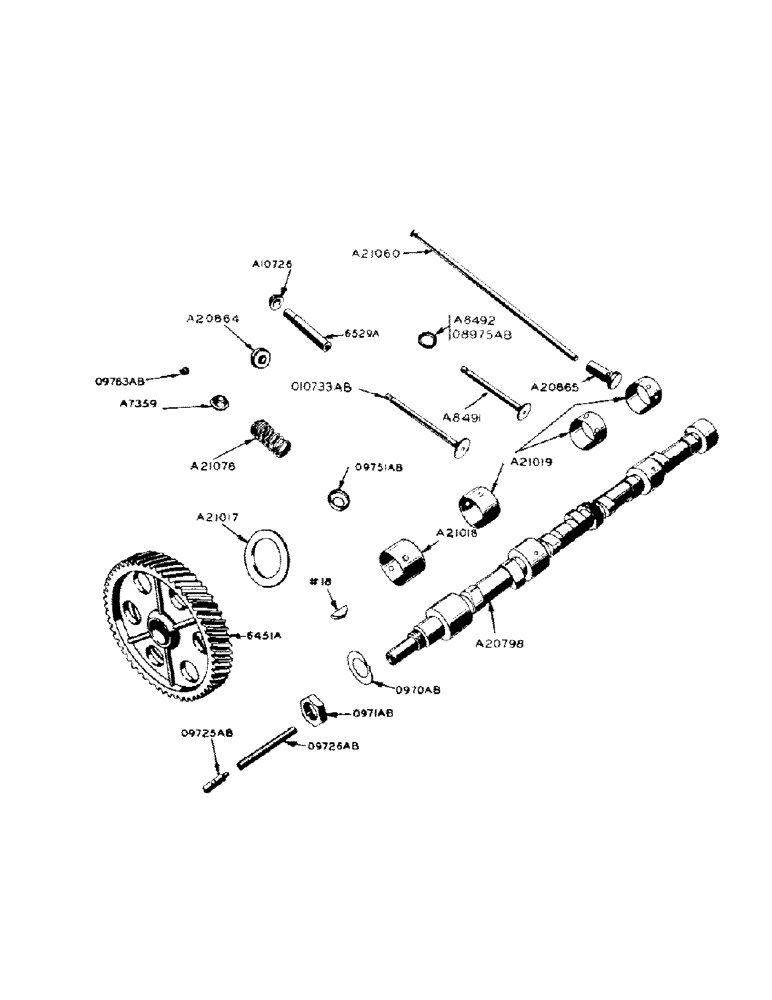

Запчасти Case IH 800 (195) - VALVES PUSH RODS AND CAMSHAFT (10) - ENGINE

A7359

RETAINER - inlet valve spring (use A21657)

1шт.

A8491

VALVE - exhaust, gasoline and LP-gas (use A21711)

1шт.

A8492

INSERT - exhaust valve seat (for A21511 cylinder head for LP-gas) (use A21680) (see 08975AB)

1шт.

A10726

SEAL

SHIELD - rubber oil, intake valve stem

4шт.

A20798

X

CAMSHAFT

1шт.

A20864

ROTOCAP - exhaust valve (use A21688)

1шт.

A20865

TAPPET

LIFTER - push rod (use A21653) (see A22463)

1шт.

A21017

WASHER

- camshaft thrust

1шт.

F21018

BUSHING - camshaft front (use A21661)

1шт.

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- camshaft, second, third and rear (use A21661)

1шт.

A21060

ROD

- push

8шт.

A21076

SPRING

- inlet and exhaust valve (use A21694)

1шт.

A21653

KIT

SET OF 4 - A20865 valve lifters (see A22463)

2шт.

A21656

RETAINER

SET OF 4 - 09763AB valve locks

4шт.

A21657

LOCK

SET OF 4 - 09763AB valve locks and 2 - A7359 retainers

2шт.

A21661

X

SET OF 4 CAMSHAFT BUSHINGS (1 - A21018, 3 - A21019)

1шт.

A21673

GUIDE

SET OF 2 - 6529A valve guides

4шт.

A21679

KIT

SET OF 2 - 08975AB exhaust valve seat inserts for gasoline

2шт.

A21680

KIT

SET OF 2 - A8492 exhaust valve seat inserts for LP-gas

2шт.

A21688

CAP

SET OF 4 - A20864 exhaust valve rotocaps

1шт.

A21694

SPRING

SET OF 4 - A21076 valve springs

2шт.

A21705

VALVE

SET OF 4 - 010733AB inlet valves

1шт.

A21711

KIT

SET OF 4 - A8491 exhaust valves

1шт.

A21857

TAPPET

LIFTER - push rod (.010" oversize) (use A22463)

1шт.

A22463

KIT

- valve push rod lifter (consists of 4 - A21857)

2шт.

6451A

X

GEAR CAMSHAFT

1шт.

#18 Woodruff key

1шт.

6529A

GUIDE - inlet & exhaust valve (use A21673)

1шт.

0970AB

LOCKWASHER - camshaft nut

1шт.

0971AB

NUT - camshaft (1-1/8" N.C. hex.)

1шт.

08975AB

INSERT - exhaust valve seat (for A21636 gasoline cylinder head) (use A21679) (see A8492)

1шт.

09725AB

PLUNGER - camshaft thrust

1шт.

09726AB

SPRING - camshaft thrust plunger

1шт.

09751AB

SEAT - inlet and exhaust valve spring

8шт.

09763AB

LOCK - valve spring retainer (use A21656 or A21657)

1шт.

010733AB

VALVE - intake, for gasoline & LP-Gas (use A21705)

1шт.
