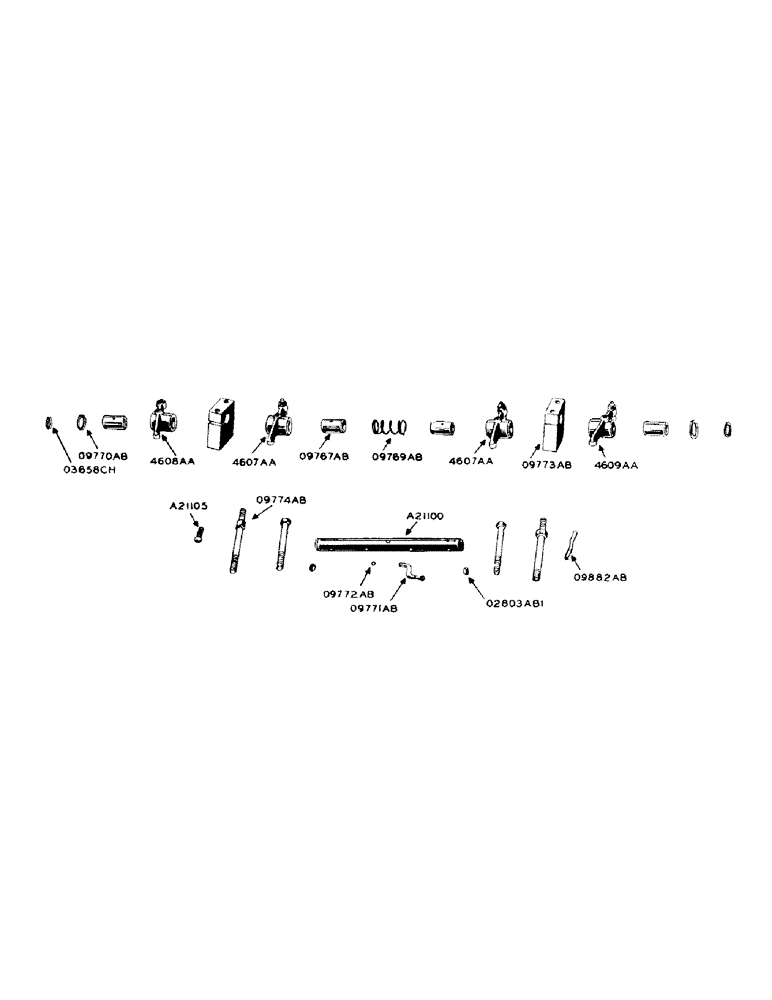

Запчасти Case IH 800 (194) - ROCKER ARMS (10) - ENGINE

A21100

SHAFT

- valve rocker arm, with plugs

2шт.

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - valve push rod adjusting

8шт.

3/8" N.F. hex. jam nut

8шт.

4607AA

X

ARM - inlet valve rocker, w/09767AB bushing

4шт.

4608AA

ARM - exhaust valve rocker w/09767AB bushing (for no. 1 & no. 3 cyls.)

2шт.

4609AA

ARM - exhaust valve rocker, w/09767AB bushing (for no. 2 & no. 4 cyls.)

2шт.

02803AB1

PLUG - valve rocker arm shaft

4шт.

09767AB

BUSHING - inlet and exhaust rocker arms

8шт.

09769AB

SPRING - valve rocker arm shaft

2шт.

09770AB

WASHER - valve rocker arm shaft

12шт.

09771AB

TUBE - oil, valve rocker arm shaft

2шт.

09772AB

"O" RING - rocker arm shaft oil tube

2шт.

09773AB

BRACKET - valve rocker arm shaft

4шт.

7/16" x 3-3/4" N.C. hex. bolt w/lockwasher

4шт.

09882AB

WICK - exhaust valve rocker arm

4шт.

010732AB

STUD - valve rocker arm shaft bracket

4шт.

7/16" N.F. hex. nut w/lockwasher

4шт.

03658CH

SNAP RING - valve rocker arm shaft

4шт.

A22298

KIT

GASKETS- valve grind

1шт.

GASKET KIT, valve grind, includes the following: (2) gasket - intake manifold A7363, (4) "o" ring - cylinder head gasket A7669, (2) gasket - cylinder head A21517, (1) gasket - carburetor to intake manifold 0889AB1, (2) "o" ring - cylinder head oil passage 08569AB, (1) gasket - carburetor elbow 08950AB, (2) "o" ring - rocker arm shaft tube 09772AB, (4) gasket - water manifold 09804AB1, (4) gasket - exhaust manifold 09815AB, (2) gasket - cylinder head cover 09959AB, (1) gasket - thermostat housing 010715AB,

1шт.
