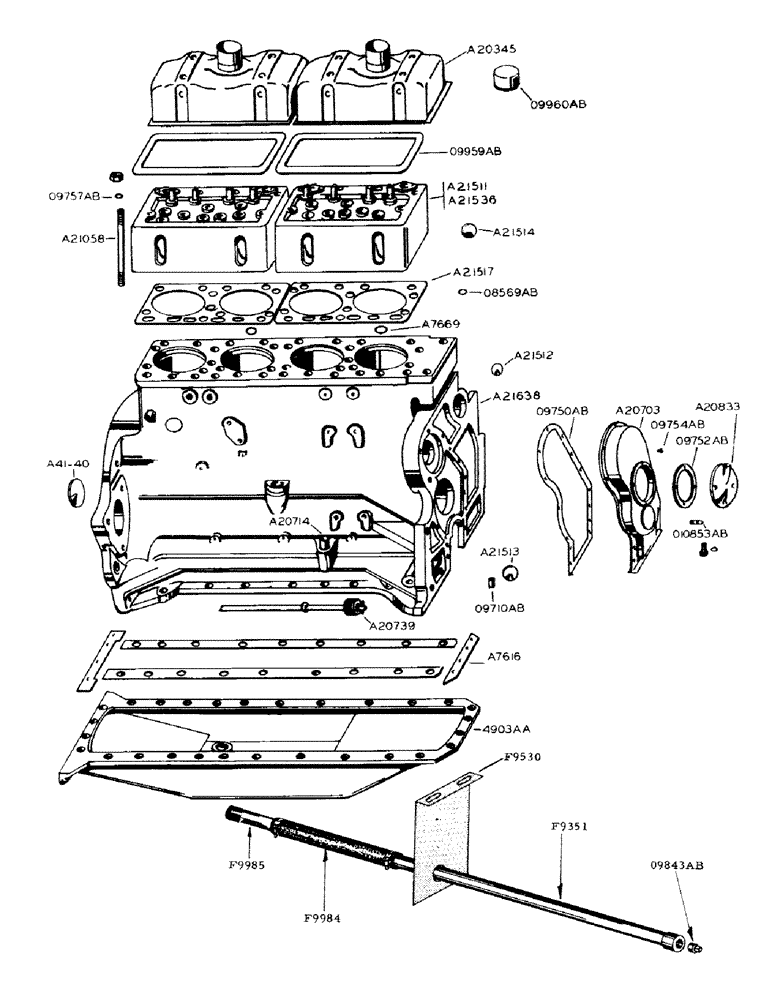

Запчасти Case IH 800 (190) - CYLINDER HEAD (10) - ENGINE

A7669

RING

- rubber, A21059 cylinder head gasket

4шт.

A20345

COVER - cylinder head

2шт.

A21058

BOLT

- cylinder head

18шт.

9/16" N.F. hex. nut

18шт.

A21356

HEAD - cylinder (use A21511)

1шт.

A21357

X

HEAD - cylinder (use A21636)

1шт.

A21511

HEAD

- cylinder, with valve guides and inserts (LP-Gas)

2шт.

A21514

X

PLUG - cup (1-5/8")

4шт.

A21517

CYLINDER HEAD GASKET

- cylinder head (see A22298 gasket kit)

2шт.

A21636

X

HEAD - cylinder, with valve guides and inserts (gasoline)

2шт.

1/4" sq. hd. pipe plug

4шт.

08569AB

"O" RING - cylinder head gasket

2шт.

09757AB

WASHER - cylinder head stud

18шт.

09959AB

GASKET - cylinder head cover (see A22298 gasket kit)

2шт.

09960AB

BREATHER - cylinder head cover

2шт.

A41-40

WELCH PLUG - 2-1/2" (for camshaft hole in block), cylinder

1шт.

A7625

COVER - magneto bracket opening, cylinder block

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher, cylinder block

3шт.

A20714

X

SOCKET - lube oil level gauge, cylinder block

1шт.

A20739

GAUGE

- oil level bayonet, cylinder block

1шт.

A21512

X

PLUG - cup (1-3/8") in cylinder block

1шт.

A21513

X

PLUG - cup (1-3/4") in cylinder block

1шт.

A21600

BLOCK - cylinder (use A21638)

1шт.

A21638

BLOCK - cylinder, with bearing caps, camshaft bushings & plugs (see A22169), block

1шт.

1/8" slotted hd. pipe plug, cylinder block

3шт.

3/8" hex. socket hd. pipe plug, cylinder block

4шт.

1" sq. socket hd. pipe plug, cylinder block

1шт.

A22169

BLOCK - stripped engine (consists of cylinder block, pistons, sleeves, rings, connecting rods, crankshaft & bearings. Does not include camshaft, valve lifters, cylinder heads, valve mechanism, etc.)

1шт.

08861AB

"O" RING - magneto opening cover, cylinder block

1шт.

A7616

GASKET KIT

GASKETS - set of oil pan

1шт.

F9351

PIPE - oil drain (1/2" - 8" long), pan

1шт.

1/2" NPT pipe coupling, oil pan

1шт.

F9530

BRACKET - oil drain support, pan

1шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut & lockwasher, oil pan

2шт.

F9984

HOSE - engine oil pan drain

1шт.

#11-1/2 Garret hose clamp, oil pan

2шт.

F9985

X

PIPE - drain, oil pan

1шт.

F76867

OIL PAN

1шт.

3/8" x 7/8" N.C. hex. bolt w/lockwasher, oil pan

26шт.

09843AB

PLUG - drain, oil pan, magnetic

1шт.

A20702

COVER - timing gear (use A20703)

1шт.

A20703

COVER - timing gear, with 09708AB oil seal, dowel pin and thrust button

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher, timing gear cover

2шт.

3/8" x 2-1/2" N.C. hex. bolt w/lockwasher, timing gear cover

8шт.

A20819

CAP - timing gear cover (use A20833)

1шт.

A20833

CAP - timing gear cover, with thrust button

1шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher, timing gear cover

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher, timing gear cover

3шт.

09710AB

PIN - dowel, timing gear cover

2шт.

09750AB

GASKET - timing gear cover

1шт.

09752AB

GASKET - timing gear cover cap

1шт.

09754AB

BUTTON - thrust, timing gear cover and cover cap

2шт.

010853AB

POINTER - timing gear cover

1шт.

1/4" x 1/2" N.C. hex. bolt, timing gear cover

2шт.

1/4" -#4014-20 shakeproof ext. - int. tooth lockwasher, timing gear cover

2шт.
