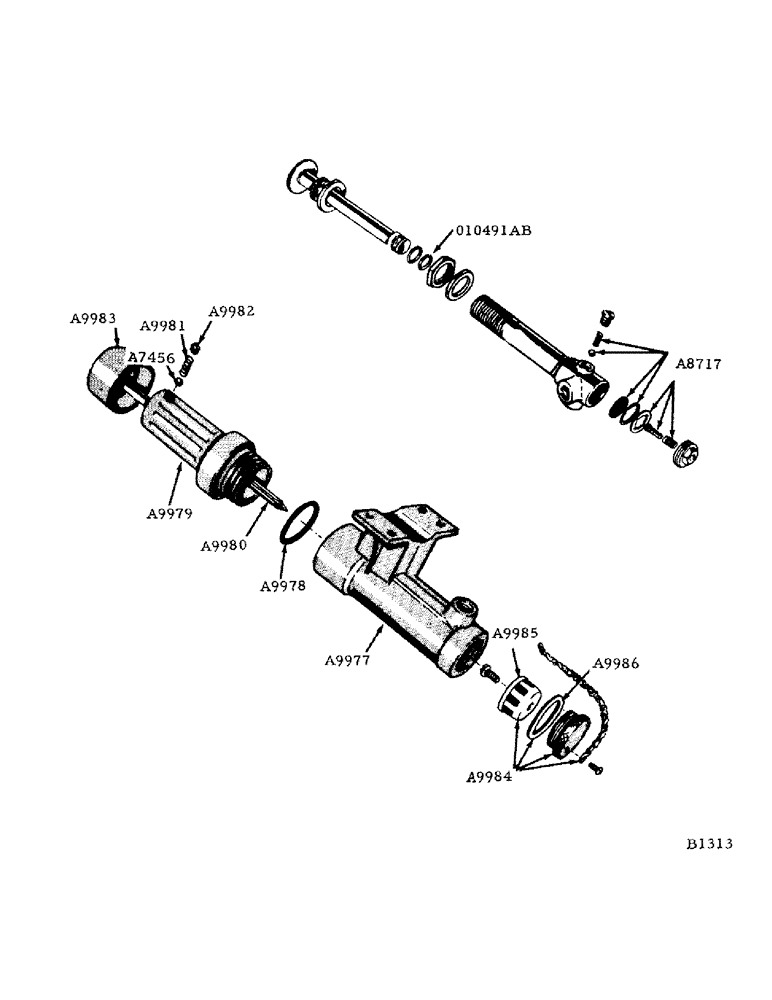

Запчасти Case IH 800 (182) - PARTS FOR 010060 AB STARTING FLUID DISPENSER (10) - ENGINE

A7456

X

BALL - (3/16" dia. steel) plunger lock

1шт.

A9977

BODY - lower

1шт.

A9978

GASKET - body

1шт.

A9979

CHAMBER - upper capsule, short

1шт.

A9980

PLUNGER ASSEMBLY, short

1шт.

A9981

SPRING - plunger lock

1шт.

A9982

PLUG - plunger lock

1шт.

A9983

KNOB - plunger

1шт.

A9984

PLUG - and strainer assembly, with chain

1шт.

A9985

STRAINER

1шт.

A9986

GASKET

- for A9984 plug

1шт.

A8717

KIT - service, for A7444 pump (consists of 2 springs, 1 ball, (1) guide pin, 2 washers, 2-010491AB "o" rings and 1 diaphragm, parts, starter fluid primer

1шт.

010491AB

"O" RING - for A7444 pump (in service kit), parts, starting fluid primer

2шт.
