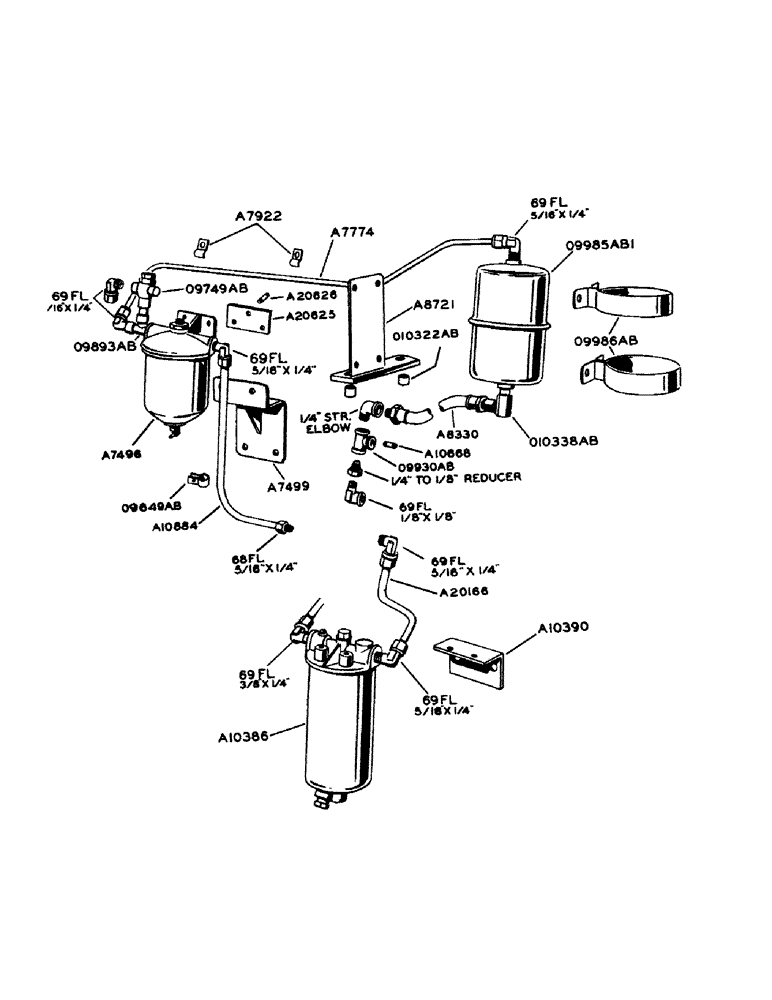

Запчасти Case IH 800 (178) - FIRST STAGE FUEL FILTER AND TUBES (10) - ENGINE

A10386

SPARE PART

FILTER - fuel, first stage

1шт.

1/4" x 3/4" N.C. hex. bolt w/lockwasher

2шт.

Imperial flex. elbow #69FL (5/16" tube x 1/4" P.T.) 60FL sleeves and 61FL nut

1шт.

Imperial flex. elbow #69FL (3/8" tube x 1/4" P.T.) 60FL sleeves and 61FL nut

1шт.

A10390

BRACKET

- filter

1шт.

3/8" x 7/8" N.C. hex. bolt w/lockwasher

2шт.

F20166

TUBE - filter to fuel pump

1шт.

Imperial flex. elbow #69FL (5/16" tube x 1/4" P.T.) 60FL sleeve and 61FL nut

1шт.

A7496

HEAD

FILTER - fuel, second stage, and tubes

1шт.

3/8" x 1" N.F. hex. bolt w/lockwasher, second stage fuel filter and tubes

2шт.

A7499

BRACKET - filter, second stage fuel filter and tubes

1шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher, second stage fuel filter and tubes

2шт.

A7774

TUBE - filter to final stage filter, second stage fuel, and tubes

1шт.

Imperial flex. elbow #69FL, #60FL nut (5/16" tube x 1/4" P.T.), second stage fuel filter and tubes

2шт.

A7922

CLIP

- for A7774 tube, second stage fuel filter

2шт.

A10884

TUBE - fuel pump to filter, second stage

1шт.

Imperial flex. elbow #69FL, #60FL sleeve and #61FL nut (5/16" tube x 1/4" P.T.), second stage fuel filter and tubes

1шт.

Imperial flex. connector #68FL, #60FL sleeve and #61FL nut (5/16" tube x 1/4" P.T.), second stage fuel filter and tubes

1шт.

A20625

SUPPORT - fuel filter bracket, second stage, and tubes

1шт.

A20626

STUD - filter bracket, second stage fuel, and tubes

1шт.

3/8" N.F. hex. nut and lockwasher, second stage fuel filter and tubes

1шт.

09649AB

CLIP - for A10884 tube, second stage fuel filter

1шт.

A20637

LOCK VALVE

VALVE - relief (American Bosch no. V7928A), second stage fuel filter and tubes

1шт.

Imperial flex. elbow #69FL (5/16" tube x 1/4" P.T.) (to fuel tank tube), second stage filter

1шт.

09893AB

TEE - filter (1/4"), second stage fuel, and tubes

1шт.

A8330

HOSE - filter to fuel pump, final stage, and tubes

1шт.

1/4" - 90deg. street elbow (hose to 09930AB tee), final stage fuel filter and tubes

1шт.

A8721

BRACKET - filter, final stage fuel, and tubes

1шт.

7/16" x 2" N.C. hex. bolt w/lockwasher, final stage fuel filter and tubes

2шт.

A10668

NIPPLE - pipe, 1/4" x 1" close brass (fuel pump to 09930AB tee), final stage filter and tubes

1шт.

09930AB

TEE - 1/4" brass female, final stage fuel filter and tubes

1шт.

1/4" x 1/8" brass reducing bushing, final stage fuel filter and tubes

1шт.

Imperial flex. elbow #69FL (1/8" tube x 1/8" P.T.), final stage fuel filter

1шт.

09985AB1

FILTER - fuel, final stage, and tubes

1шт.

09986AB

CLAMP - filter, final stage fuel, and tubes

2шт.

5/16" x 1/2" N.C. hex. bolt w/plain washer, final stage fuel filter and tubes

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut, final stage fuel filter and tubes

3шт.

5/16" No. 4018-24 Shakeproof ext-int. tooth lockwasher, final stage fuel filter and tubes

4шт.

1/4" x 1-1/2" N.C. rhd. mach. screw w/hex. nut, final stage fuel filter and tubes

2шт.

010322AB

SPACER - filter bracket, final stage fuel, and tubes

2шт.

010338AB

UNION - 90deg. adapter, final stage fuel filter and tubes

1шт.
