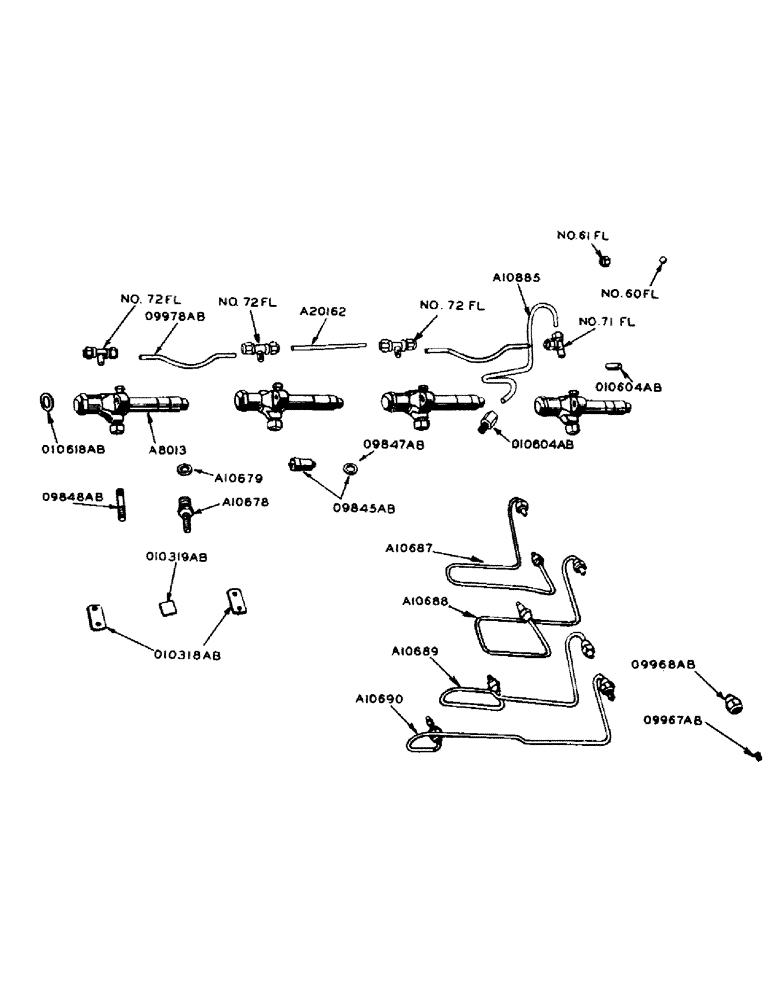

Запчасти Case IH 800 (177) - FUEL INJECTOR NOZZLE AND TUBES (10) - ENGINE

A8013

NOZZLE INJECTION

NOZZLE - injector, with holder and gasket

4шт.

A10678

STUD

- nozzle holder, large

4шт.

3/8" N.F. hex. nut

4шт.

A10679

GASKET

- injector nozzle holder stud

4шт.

A10687

TUBE - fuel injector, with sleeves and nuts, for no. 1 cylinder

1шт.

A10688

TUBE - fuel injector, with sleeves and nuts, for no. 2 cylinder

1шт.

A10689

TUBE - fuel injector, with sleeves and nuts, for no. 3 cylinder

1шт.

A10690

TUBE - fuel injector, with sleeves and nuts, for no. 4 cylinder

1шт.

A10885

TUBE - leak-off, fuel pump to injector nozzle

1шт.

A20162

TUBE

- injector leak-off, upper

1шт.

Imperial flex. tee #72FL (1/4" tube x 1/8" P.T.)

2шт.

09845AB

NOZZLE - injector, with 09847AB gasket

4шт.

09847AB

GASKET - injector nozzle holder

4шт.

09848AB

STUD - nozzle holder, small

4шт.

3/8" N.F. hex. nut

4шт.

09967AB

SLEEVE - injector tube coupling

8шт.

09968AB

NUT - injector tube

8шт.

09978AB

TUBE - injector leak-off, lower

2шт.

Imperial flex. tee #71FL (1/4" tube x 1/8" P.T.) at front nozzle

1шт.

Imperial flex. tee #72FL (1/4" tube x 1/8" P.T.) at rear nozzle

1шт.

010318AB

CLAMP - injector tube (clamps 4 tubes)

2шт.

010319AB

CUSHION - between 010318AB clamp and injector tubes

2шт.

010604AB

CONNECTION - fuel pump leak-off check valve

1шт.

010618AB

GASKET - for injector pressure adjusting screw protective cap

4шт.

Imperial brass no. 60FL sleeve for 1/4" tubing, for A11912, A20162, 09977AB and 09978AB tubes, and nuts for fuel

1шт.

Imperial brass no. 61FL nut for 1/4" tubing, for A11912, A20162, 09977AB and 09978AB tubes, and sleeves for fuel

1шт.
