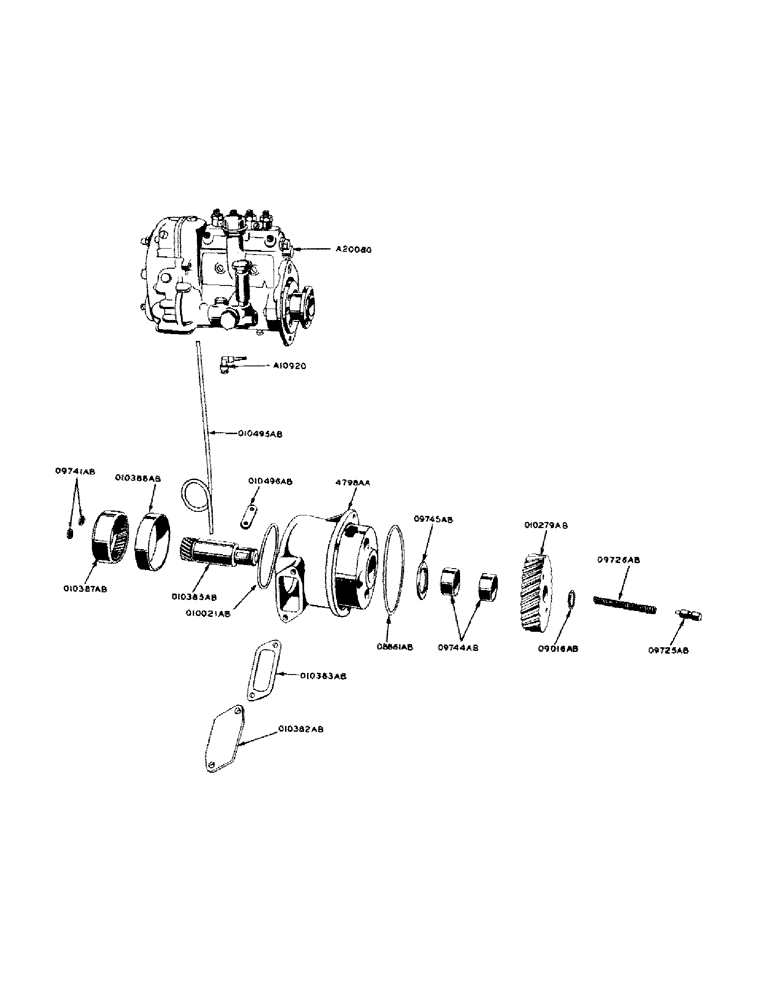

Запчасти Case IH 800 (176) - FUEL PUMP (10) - ENGINE

A10668

NIPPLE, pipe, 1/4" x 1" close brass

1шт.

A10920

FITTING - lube oil overflow

1шт.

A20080

PUMP - fuel (Robert Bosch no. PES-4A-80B-410RS352) 2000 RPM

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher

2шт.

3/8" x 1-1/2" N.C. hex. bolt w/lockwasher

1шт.

F9946

TUBE - leak-off, lube oil

1шт.

6395A

HOUSING (use 4798AA)

1шт.

4798AA

HOUSING - fuel pump drive shaft, w/bushings

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher

3шт.

08861AB

"O" RING - fuel pump drive shaft housing

1шт.

09016AB

SNAP RING - fuel pump drive shaft

1шт.

09725AB

PLUNGER - fuel pump drive shaft thrust

1шт.

09726AB

SPRING -fuel pump drive shaft thrust plunger

1шт.

09741AB

WASHER - serrated, fuel pump coupling

2шт.

5/16" x 3/4" N.F. hex. bolt w/lockwasher

2шт.

09744AB

BUSHING - fuel pump drive shaft

2шт.

09745AB

WASHER - thrust, fuel pump drive shaft

1шт.

010021AB

"O" RING - fuel pump

1шт.

010279AB

GEAR - fuel pump drive

1шт.

No. 141 Woodruff key

1шт.

010382AB

PLATE - fuel pump drive shaft housing

1шт.

5/16" x 3/4" N.C. hex. bolt w/lockwasher

2шт.

010383AB

GASKET - housing plate

1шт.

010385AB

SHAFT - fuel pump drive pinion

1шт.

010387AB

GEAR - internal reduction

1шт.

010388AB

BUSHING - internal reduction gear

1шт.
