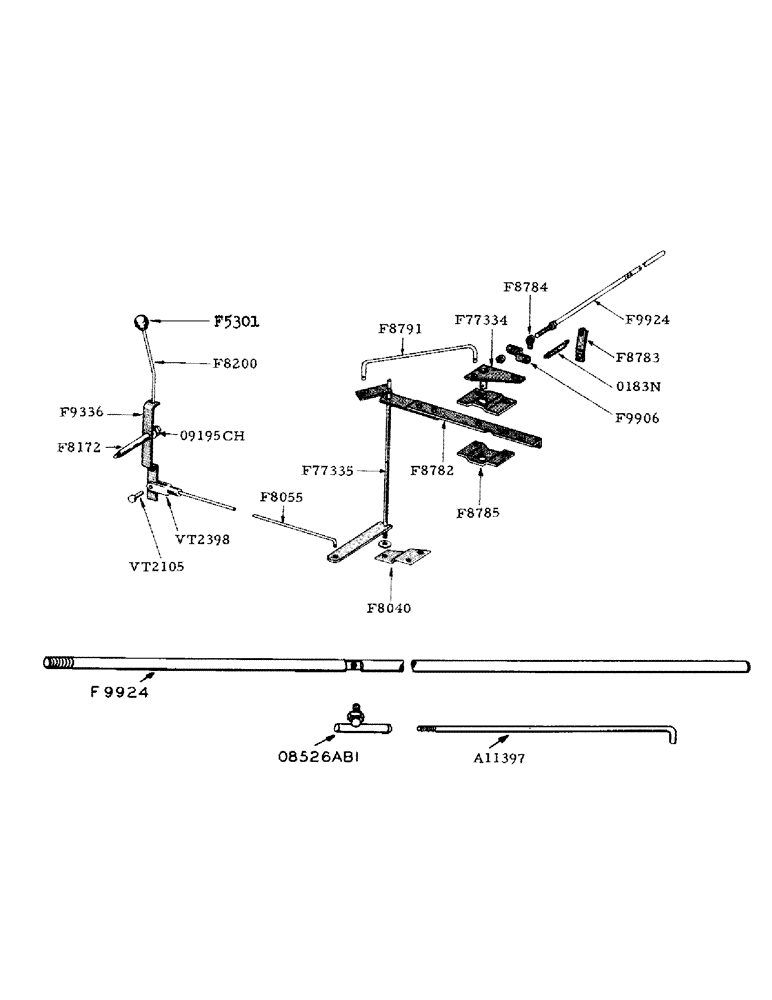

Запчасти Case IH 800 (175) - THROTTLE CONTROL (10) - ENGINE

A11397

LINK - throttle, fuel pump

1шт.

#10 std. lockwasher

1шт.

1/16" x 1/2" cotter pin

1шт.

F5301

KNOB - throttle control

1шт.

F8040

SUPPORT - lower, throttle pivot

1шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F8055

ROD - throttle

1шт.

1/4" N.F. hex. nut

1шт.

3/32" x 5/8" cotter pin

1шт.

F8172

SHAFT - pivot, throttle control and shift lever

1шт.

F8200

LEVER - throttle control

1шт.

F8782

ANGLE - throttle support

1шт.

F8783

CLIP - throttle return spring

1шт.

F8784

STUD - throttle rod extension

1шт.

F8785

BRACKET - support, throttle bell crank

2шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F8791

LINK - pivot shaft to bell crank

1шт.

3/32" x 1/2" cotter pin

2шт.

F9336

ARM - throttle control

1шт.

F9906

CLIP - spring, throttle return

1шт.

3/8" N.F. hex. nut

2шт.

F77334

BELL CRANK - throttle

1шт.

1/8" x 1" cotter pin

1шт.

F77335

SHAFT - pivot, throttle

1шт.

08526AB1

JOINT - ball, throttle link

1шт.

VT2105

X

PIN - clevis, for VT2398

1шт.

VT2398

X

CLEVIS - for F8055 rod

1шт.

09195CH

NUT (3/8" -16 N.C. elastic stop ESNA #29E-066) for F8172 shaft

1шт.

0183N

SPRING - throttle return

1шт.
