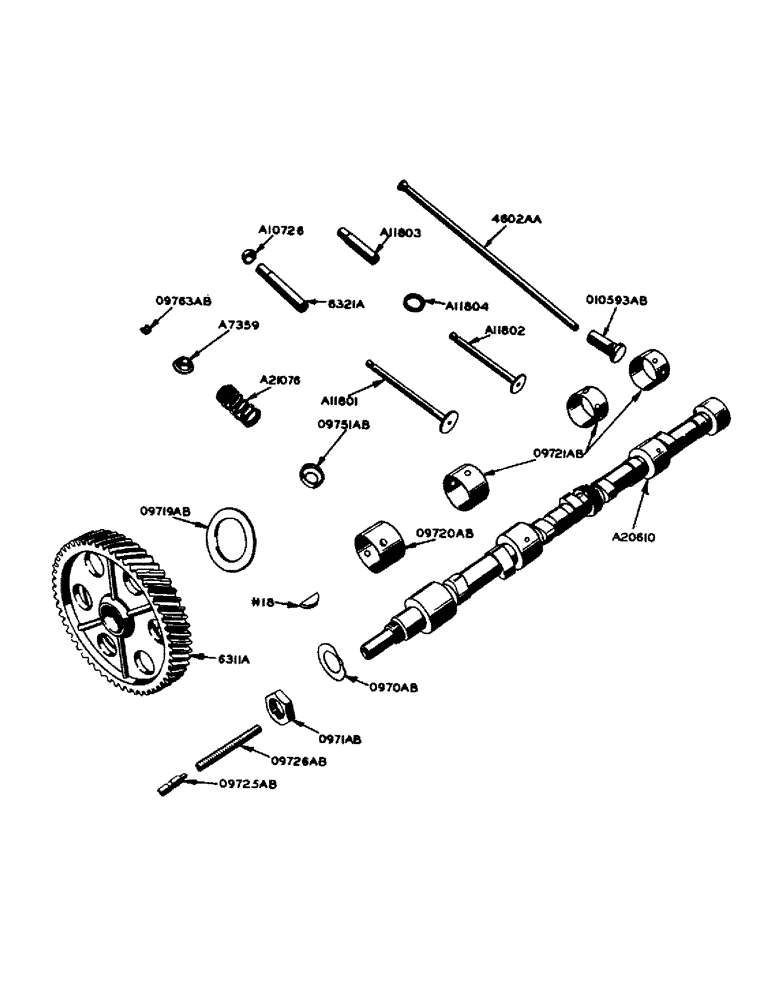

Запчасти Case IH 800 (170) - VALVES, PUSH RODS AND CAMSHAFT (10) - ENGINE

A7359

RETAINER - valve spring

8шт.

A10726

SEAL

SHIELD - rubber, intake valve stem oil

4шт.

A11801

VALVE

- inlet

4шт.

A11802

VALVE - exhaust

4шт.

A11803

GUIDE

- exhaust valve

4шт.

A11804

INSERT - exhaust valve seat

4шт.

A20610

CAMSHAFT

1шт.

A20865

TAPPET

LIFTER - push rod, use w/A21060 and A21105 (see 010593AB)

8шт.

A21060

ROD

- push (round end) use w/A21105 & A20865 (see 4602AA)

8шт.

A21076

SPRING

- inlet and exhaust valve

8шт.

6311A

X

GEAR - camshaft

1шт.

#18 Woodruff key

1шт.

6321A

GUIDE - inlet valve

4шт.

4602AA

ROD

- push (taper end) see A21060

8шт.

0970AB

LOCKWASHER - camshaft nut

1шт.

0971AB

NUT - camshaft (1-1/8" N.C. hex)

1шт.

09719AB

WASHER - camshaft thrust

1шт.

09720AB

BUSHING - camshaft, front

1шт.

09721AB

BUSHING - camshaft, second, third and rear

3шт.

09725AB

PLUNGER - camshaft thrust

1шт.

09726AB

SPRING - camshaft thrust plunger

1шт.

09751AB

SEAT - inlet and exhaust valve spring

8шт.

09763AB

LOCK - valve spring retainer (2 required per valve)

16шт.

010593AB

LIFTER - push rod use with taper end push rod (see A20865)

8шт.
