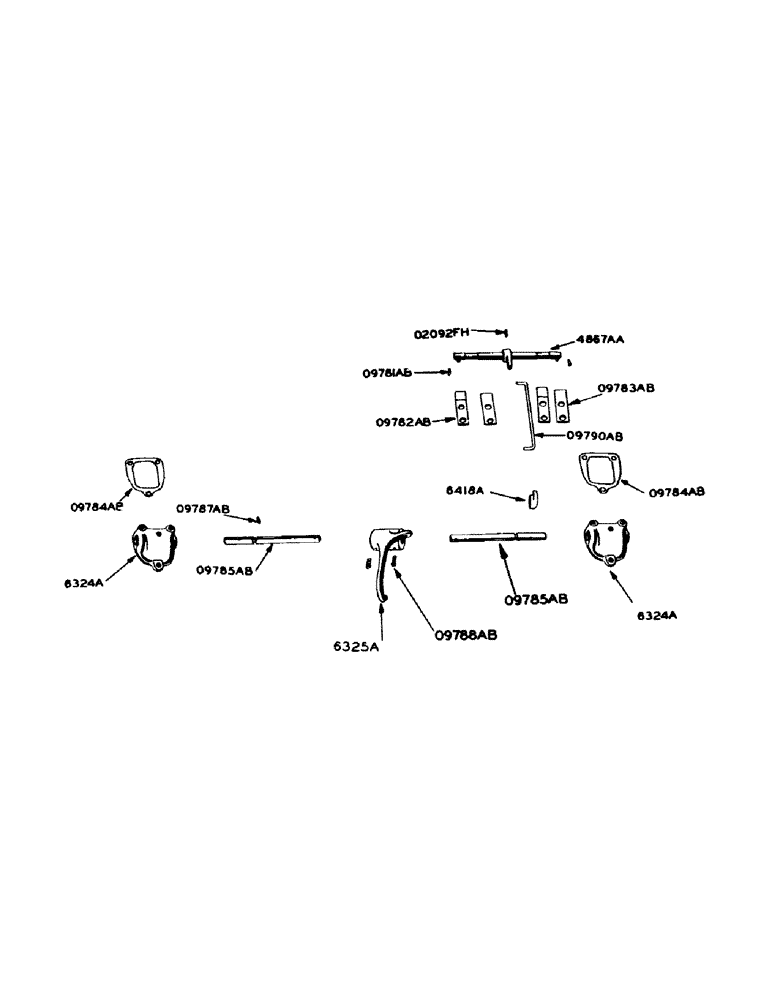

Запчасти Case IH 800 (168) - DECOMPRESSOR (10) - ENGINE

6324A

HOUSING - decompressor intermediate control lever

2шт.

3/4" Welch plug

2шт.

1/8" slotted hd. pipe plug

2шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

2шт.

5/16" x 1-3/4" N.C. hex. bolt w/lockwasher

4шт.

6325A

LEVER - hand, decompressor

1шт.

1/4" x 1" N.C. sq. hd. oval point set screw w/hex. nut

1шт.

6418A

LEVER - decompressor control

4шт.

4867AA

SHAFT - decompressor, with lever and trip pin

2шт.

09781AB

PIN - decompressor trip

4шт.

09782AB

BRACKET - decompressor shaft, top

4шт.

7/16" x 4" N.C. hex. bolt w/lockwasher

4шт.

09783AB

BRACKET - decompressor shaft, bottom

4шт.

09784AB

GASKET - decompressor control lever housing (see A20151 gasket kit)

2шт.

09785AB

SHAFT - decompressor intermediate control, short

2шт.

09787AB

"O" RING - decompressor intermediate control shaft

2шт.

09788AB

SET SCREW - decompressor control shaft

2шт.

09790AB

LINK - decompressor control, upper

2шт.

1/16" x 5/8" cotter pin

4шт.

B138-96

ROLL PIN (3/16" x 1") - for 6418A lever

4шт.
