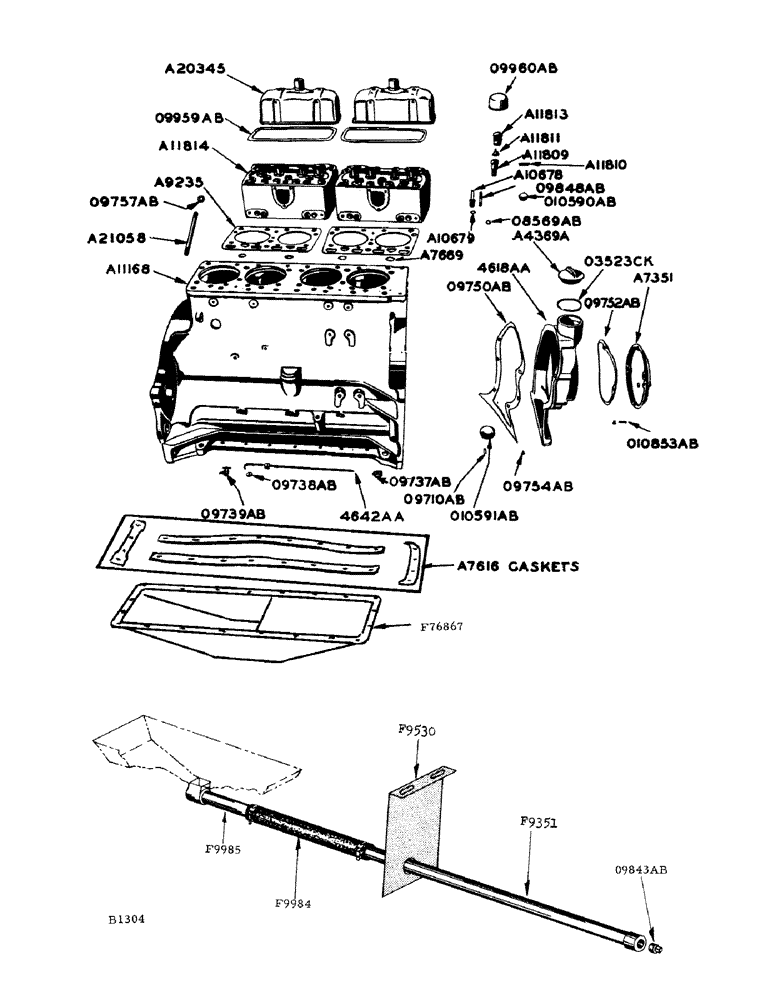

Запчасти Case IH 800 (164) - CYLINDER HEAD (10) - ENGINE

A7669

RING

- rubber, for A9235 cylinder head gasket (see A20151 gasket kit)

4шт.

A9235

CYLINDER HEAD GASKET

- cylinder head (see A20151 gasket kit)

2шт.

A10678

STUD

- nozzle holder, large

4шт.

3/8" N.F. hex. nut

4шт.

A10679

GASKET

- nozzle holder stud

4шт.

A11800

HEAD - cylinder (use A11814)

1шт.

A11814

NO LONGER SERVICED

HEAD - cylinder, with valve guides and inserts

2шт.

A20345

COVER - cylinder head

2шт.

A21058

BOLT

- cylinder head

18шт.

9/16" N.F. hex. nut

18шт.

08569AB

"O" RING - in cylinder head gasket for oil passage

2шт.

09757AB

WASHER - cylinder head stud

18шт.

09848AB

STUD - nozzle holder, small

4шт.

3/8" N.F. hex. nut

4шт.

09959AB

GASKET - cylinder head cover (see A20151 gasket kit)

2шт.

09960AB

BREATHER - cylinder head cover

2шт.

010590AB

WELCH PLUG - for cylinder head (stainless steel) (1-5/8" dia.)

4шт.

A11809

X

BODY - powrcel

4шт.

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel body

4шт.

A11811

CAP - powrcel

4шт.

A11812

CLAMP

- powrcel

4шт.

A11813

PLUG

SCREW - powrcel clamp

4шт.

A7509

PLUG

WELCH PLUG - for cylinder block (stainless steel) (1-3/8" dia.)

1шт.

A11112

BLOCK - cylinder (use A11168)

1шт.

A11168

BLOCK - cylinder, with bearing caps, camshaft bushings and plugs

1шт.

3/8" ctsk. headless pipe plug, cylinder block

1шт.

1" ctsk. headless pipe plug, cylinder block

1шт.

1-1/2" Welch plug, stainless steel, cylinder block

1шт.

2-3/8" Welch plug, stainless steel, cylinder block

1шт.

4642AA

X

GAUGE - lube oil level, with felt washer, cylinder block

1шт.

09737AB

SOCKET - lube oil level gauge, cylinder block

1шт.

09738AB

FELT WASHER - lube oil level gauge, cylinder block

1шт.

010591AB

WELCH PLUG - for cylinder block (stainless steel) (1-13/16" dia.)

1шт.

A7616

GASKET KIT

GASKETS - set of oil pan

1шт.

F9351

PIPE - oil drain (1/2" -8" long), pan

1шт.

1/2" NPT pipe coupling, oil pan

1шт.

F9530

BRACKET - oil drain support, pan

1шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher, oil pan

2шт.

F9984

HOSE - engine oil pan drain

1шт.

#11-1/2 Garret hose clamp, oil pan

2шт.

F9985

X

PIPE - drain, oil pan

1шт.

F76867

OIL PAN

1шт.

3/8" x 7/8" N.C. hex. bolt w/lockwasher, oil pan

26шт.

09843AB

PLUG - drain, oil pan, magnetic

1шт.

A7351

CAP - timing gear cover, with thrust button

1шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher, timing gear cover

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher, timing gear cover

3шт.

A4369A

CAP - oil filler, timing gear cover

1шт.

6316A

COVER - timing gear (use 4618AA)

1шт.

6469A

CAP - timing gear (use A7351), cover

1шт.

4618AA

COVER - timing gear, with 09708AB oil seal, dowel pin and thrust button

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher, timing gear cover

2шт.

3/8" x 2-1/2" N.C. hex. bolt w/lockwasher, timing gear cover

8шт.

09710AB

PIN - dowel, timing gear cover

2шт.

09750AB

GASKET - timing gear cover

1шт.

09752AB

GASKET - timing gear cover cap

1шт.

09754AB

BUTTON - thrust, timing gear cover and cap

2шт.

010853AB

POINTER - timing gear cover

1шт.

1/4" x 1/2" N.C. hex. bolt, timing gear cover

2шт.

1/4" Shakeproof ext.-int. tooth lockwasher #4014-20, timing gear cover

2шт.

03523CK

"O" RING - for A4369A oil filler cap, timing gear cover

1шт.
