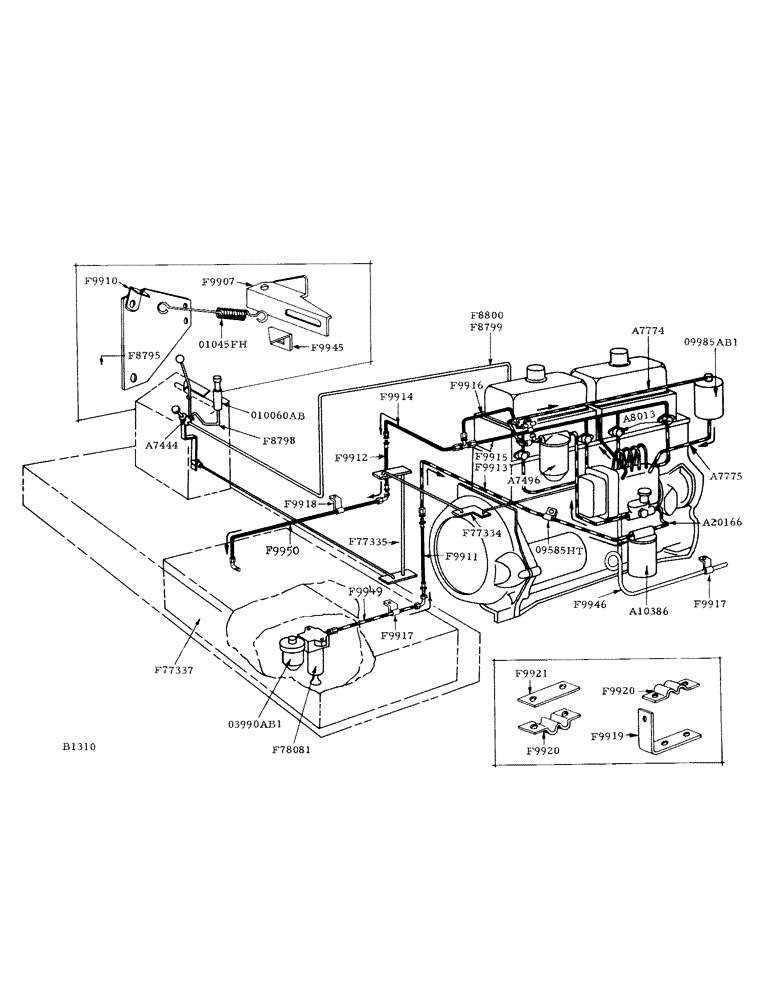

Запчасти Case IH 800 (162) - DIESEL FUEL SYSTEM (10) - ENGINE

A7444

PUMP - starting fluid primer

1шт.

F8795

BRACKET - mounting, for 010060AB dispenser

1шт.

F8798

TUBE - from 010060AB dispenser to A7444 pump

1шт.

F8799

TUBE - from A7444, Serial Range: pump-manifold

1шт.

F8800

LOOM - for F8799 and F8802 lines

2шт.

F9907

LEVER - throttle shut off

1шт.

1/4" x 7/8" N.C. rd. hd. mach. screw w/dbl. hex. nut and plain washer

1шт.

F9910

CLIP - spring, throttle shut off (mounts on instrument panel)

1шт.

1/4" x 5/8" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

F9911

LINE - flexible fuel (includes 2-1/4" #2037 fittings) joins F9949 and F9913

1шт.

3/8" tube x 1/4" pipe thread (Imperial elbow #70FL)

1шт.

F9912

LINE - return, flexible fuel (includes 2-1/8" #4165 fittings) joins, Serial Range: F9914-F9950

1шт.

5/16" tube size x 1/8" pipe thread (Imperial elbow #70FL)

1шт.

F9913

LINE - fuel, flexible connection to first stage filter

1шт.

3/8" tube x 1/4" pipe thread (Imperial connector #68FL)

1шт.

F9914

LINE - return, tee to flexible connection

1шт.

5/16" tube x 1/8" pipe thread (Imperial) connector #68FL)

1шт.

F9915

LINE - return, Serial Range: nozzle-tee

1шт.

5/16" x 5/8" x 1/8" N.P.T. Imperial brass tee (#71FL)

1шт.

F9916

LINE - relief, second stage filter

1шт.

1/4" x 1/8" pipe thread (Imperial female coupling #66FL)

1шт.

F9917

CLIP - fuel, for F9949 and F9946

2шт.

3/8" x 3/4" N.F. hex. bolt w/lockwasher

2шт.

F9918

CLIP - fuel return line F9950

1шт.

5/16" x 1/2" N.F. hex. bolt w/lockwasher

1шт.

F9919

HANGER - fuel line clip F9920

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F9920

CLIP - double, fuel line F9913 and F9914

2шт.

3/8" x 1/2" N.C. hex. bolt w/lockwasher

2шт.

F9921

BACK PLATE - fuel line clip F9920

1шт.

F9945

STOP - throttle idle

1шт.

1/4" x 1/2" N.C. rd. hd. short sq. neck bolt w/hex. nut and lockwasher

1шт.

F9946

LINE - fuel drip

1шт.

F9949

TUBE - tank to flexible connection

1шт.

3/8" tube x 1/4" pipe thread (Imperial connector #68FL)

1шт.

F9950

TUBE - return flexible, Serial Range: connection-tank

1шт.

5/16" tube x 1/4" pipe thread (Imperial elbow #69FL)

1шт.

F77337

FUEL TANK

1шт.

F78081

PUMP - hand fuel primer

1шт.

1/8" pipe thread x 1/4" pipe thread (Imperial reducing nipple #123B)

1шт.

010060AB

DISPENSER - starting fluid

1шт.

010061AB

PUMP - primer, starting fluid

1шт.

01045FH

SPRING - throttle shut off

1шт.

09585HT

CLIP - for F9913 fuel line (fastens to cylinder block)

1шт.
