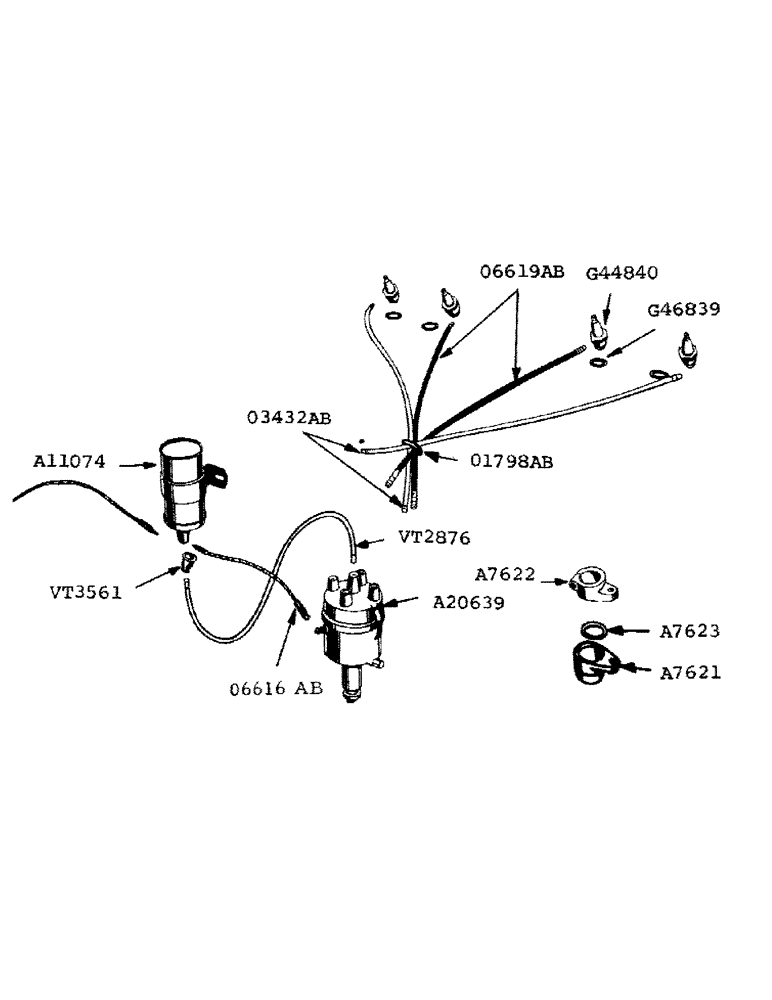

Запчасти Case IH 800 (160) - DISTRIBUTOR IGNITION (10) - ENGINE

A7621

INSERT - distributor support

1шт.

A7622

CLAMP - distributor

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

1шт.

5/16" x 1-1/4" N.C. hex. bolt w/lockwasher

1шт.

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor

1шт.

A11074

COIL

- ignition (12 volt)

1шт.

5/16" x 5/8" N.C. rhd. mach. screw

2шт.

5/16" #4018-24 Shakeproof ext.-int. lockwasher

2шт.

A20639

DISTRIBUTOR (WICO #X30169)

1шт.

01798AB

RING - ignition cable

1шт.

03432AB

WIRE - spark plug, to no. 1 and no. 3 cylinders

2шт.

06616AB

WIRE - coil to distributor (11" long)

1шт.

06619AB

WIRE - spark plug, to no. 2 and no. 4 cylinder

2шт.

VT2876

X

WIRE - ignition, distributor to coil (12" long)

1шт.

VT3561

X

NIPPLE - distributor, coil and spark plug wires

6шт.

G44840

SPARK PLUG

PLUG - spark, 18MM (Champion #8 commercial) (includes 07769AB gasket)

4шт.

G46839

GASKET

- spark plug

4шт.

A20779

BRUSH AND SPRING (WICO #X30073), parts for A20639 distributor

1шт.

This part does not have to be obtained from a Wico service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from a Wico service station.

1шт.

A20780

CONTACT

SET (WICO #X30072), parts for A20639 distributor

1шт.

This part does not have to be obtained from a Wico service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from a Wico service station.

1шт.

A20781

CONDENSER

(WICO #X30188), parts for A20639 distributor

1шт.

This part does not have to be obtained from a Wico service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from a Wico service station.

1шт.

A20782

CAM WIPER FELT (WICO #6318), parts for A20639 distributor

1шт.

This part does not have to be obtained from a Wico service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from a Wico service station.

1шт.

A20783

SEAL

DUST SEAL (WICO #X30036), parts for A20639 distributor

1шт.

This part does not have to be obtained from a Wico service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from a Wico service station.

1шт.

A20784

ROTOR

(WICO #X30039), parts for A20639 distributor

1шт.

This part does not have to be obtained from a Wico service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from a Wico service station.

1шт.

A20785

CAP

(WICO #30042), parts for A20639 distributor

1шт.

This part does not have to be obtained from a Wico service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from a Wico service station.

1шт.

1423

BOLT,Hex, 1" - 8 x 6", Gr 5

OILER, parts for A20639 distributor

1шт.

5900

SCREW - contact set clamp, parts for A20639 distributor

1шт.

9636

DECAL

CLAMP - condenser, parts for A20639 distributor

1шт.

9828

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

PIN - coupling, parts for A20639 distributor

1шт.

9851

TOOL KIT

SCREW - breaker clamp and condenser clamp, parts for A20639 distributor

3шт.

30005

CABLE

PLATE - breaker, parts for A20639 distributor

1шт.

30023

O-RING

CLIP - spring, parts for A20639 distributor

2шт.

30025

CAM - breaker, parts for A20639 distributor

1шт.

X30027

BATTERY CONNECTION SET, parts for A20639 distributor

1шт.

30068

RING - breaker cam retaining, parts for A20639 distributor

1шт.

X30096

WEIGHT - advance and stop (set of 2), parts for A20639 distributor

1шт.

X30103

HOUSING, parts for A20639 distributor

1шт.

30104

COUPLING, parts for A20639 distributor

1шт.

X30182

SHAFT - drive, parts for A20639 distributor

1шт.

NLS

NO LONGER SERVICED

BRACKET - wiper felt, parts for A20639 distributor

1шт.

X30193

SPRING - advance (set of 2), parts for A20639 distributor

1шт.
