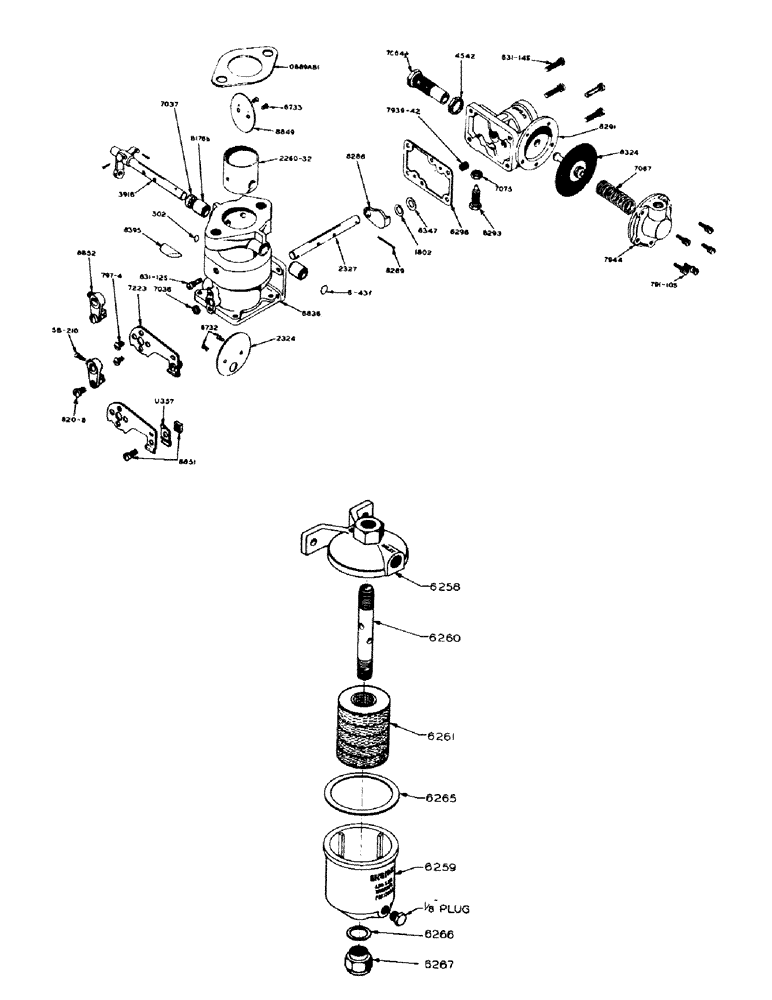

Запчасти Case IH 800 (158) - A10616 ENSIGN CARBURETOR PARTS, MODEL 1-1/4INCH XG, NUMBER 3896 FOR L.P. FUEL (10) - ENGINE

2-70

KEY

SCREW - throttle stop adjusting

2шт.

5B210

SCREW - "B" set, choke lever

1шт.

6-43F

WELCH PLUG - 1/2" (brass)

1шт.

7C64G

SCREW - fuel adjusting

1шт.

B176B

BUSHING - throttle bearing

2шт.

302

WELCH PLUG - 3/16"

1шт.

U357

CLAMP - choke tube

1шт.

791-10S

SCREW - economizer cover and lockwasher

5шт.

797-4

SCREW - choke tube support

2шт.

820-8

SCREW - swivel, choke lever

1шт.

831-12S

SCREW - set, and lockwasher, for Venturi

1шт.

831-14S

SCREW - gas inlet and lockwasher

4шт.

1802

TOY

WASHER - spring

1шт.

2260-32

VENTURI

1шт.

2324

LAMP

DISC - choke

1шт.

2327

ELBOW

SHAFT - choke

1шт.

3916

BUSHING

SHAFT - throttle and stop lever assembly

1шт.

4542

LOCKNUT - fuel adjusting screw

1шт.

6347

THREADED TIE-ROD

WASHER - valve lever

1шт.

6395

LOCK NUT,5/8"-11, GB

NOZZLE - balance tube

1шт.

6732

SCREW - choke shaft disc

2шт.

6733

SCREW - throttle shaft disc

2шт.

7036

BOLT,Hex, 1 1/4" - 12 x 3 1/2", Gr 8

WASHER - dust, choke lever

1шт.

7037

TESTER

WASHER - dust, throttle shaft

1шт.

7067

CYLINDER END CAP

SPRING - economizer

1шт.

7070

DIAPHRAGM (see 8324)

1шт.

7075

LOCTITE

LOCKNUT - starting adjusting screw

1шт.

7223

FLAP

SUPPORT - choke tube assmy

1шт.

7939-42

SCREW - bleeder

1шт.

7944

HYDRAULIC HOSE,0.50" ID x 100.00", SAE J517,SAE J516,SAE 100R17

COVER - economizer

1шт.

8288

BUSHING

LEVER - valve

1шт.

8289

WASHER

PIN - valve lever

1шт.

8291

SPINDLE

INLET - gas and economizer

1шт.

8293

CAP

SCREW - starting adjusting

1шт.

8296

DECAL

GASKET - gas inlet and economizer

1шт.

8324

TUBE

DIAPHRAGM - economizer, assmy

1шт.

8836

BEARING CUP

BODY (partial assmy.)

1шт.

8849

X

DISC - throttle

1шт.

8851

SCREW - choke tube clamp, with nut

1шт.

8852

LEVER - choke, assmy

1шт.

0889AB1

GASKET - carburetor to manifold (see A20152 gasket kit)

1шт.

08950AB

GASKET - carburetor adapter

1шт.

#12-24 x 5/8" rhd. mach. screw w/lockwasher

4шт.

6258

BOLT

TOP - filter, 08837AB liquid, parts for L.P. fuel system

1шт.

6259

PLOW BOLT

BOTTOM - filter, 08837AB liquid, parts for L.P. fuel system

1шт.

1/8" pipe plug, 08837AB liquid filter parts, for L.P. fuel system

1шт.

6260

SHAFT

STUD - filter, 08837AB liquid, parts for L.P. fuel system

1шт.

6261

SHAFT

FILTER FELT - screen and washer assembly, 08837AB liquid, parts for L.P. fuel system

1шт.

6265

GASKET - filter top to bottom, 08837AB liquid, parts for L.P. fuel system

1шт.

6266

GASKET - filter bowl, 08837AB liquid, parts for L.P. fuel system

1шт.

6267

NUT - filter stud, 08837AB liquid, parts for L.P. fuel system

1шт.
