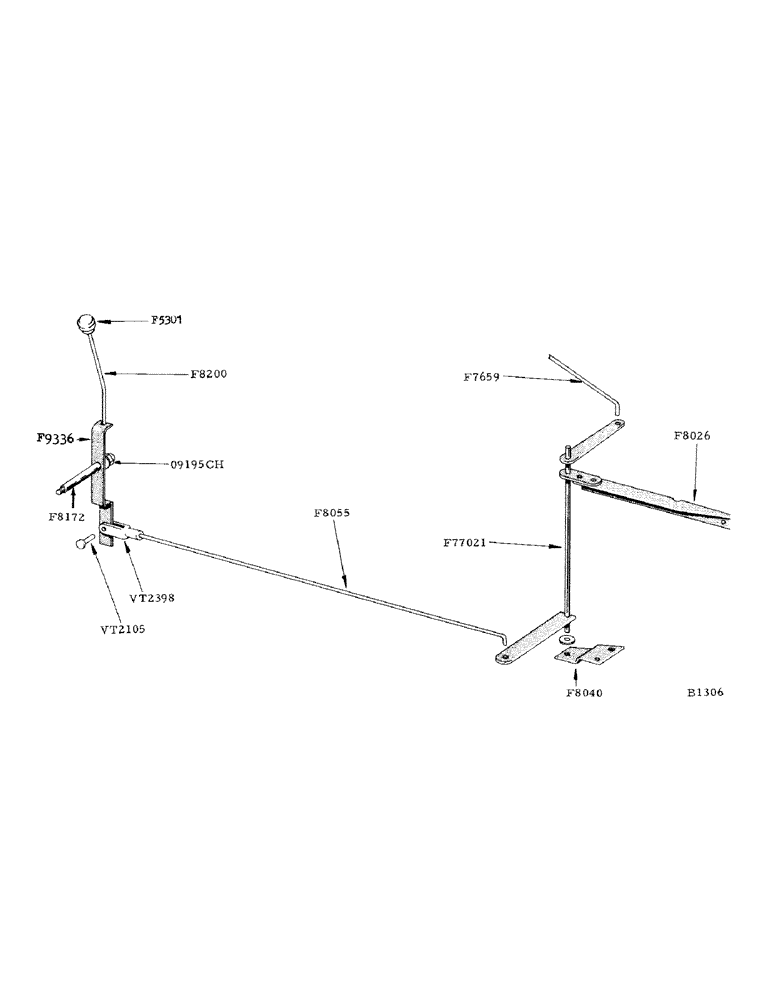

Запчасти Case IH 800 (147) - THROTTLE CONTROL (10) - ENGINE

F5301

KNOB - throttle control

1шт.

F8026

SUPPORT - upper, throttle pivot

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F8040

SUPPORT - lower, throttle pivot

1шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F8055

ROD - throttle

1шт.

1/4" N.F. hex. nut

1шт.

3/32" x 5/8" cotter pin

1шт.

F8172

SHAFT - pivot, throttle control

1шт.

F8200

LEVER - throttle control (reference-(see gear shift illustration)

1шт.

F9336

ARM - throttle control (see gear shift illustration)

1шт.

F77021

SHAFT - pivot, throttle control

1шт.

1/8" x 1-1/4" cotter pin

1шт.

1/4" x 3/4" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

2шт.

VT2105

X

PIN - clevis VT2398

1шт.

1/16" x 1/2" cotter pin

1шт.

VT2398

X

CLEVIS - for F8055 rod

1шт.

VT2852

SPRING - throttle control (see gear shift illustration)

1шт.

09195CH

NUT (3/8" - 16 N.C. ESNA #29E-066) throttle lever

1шт.
