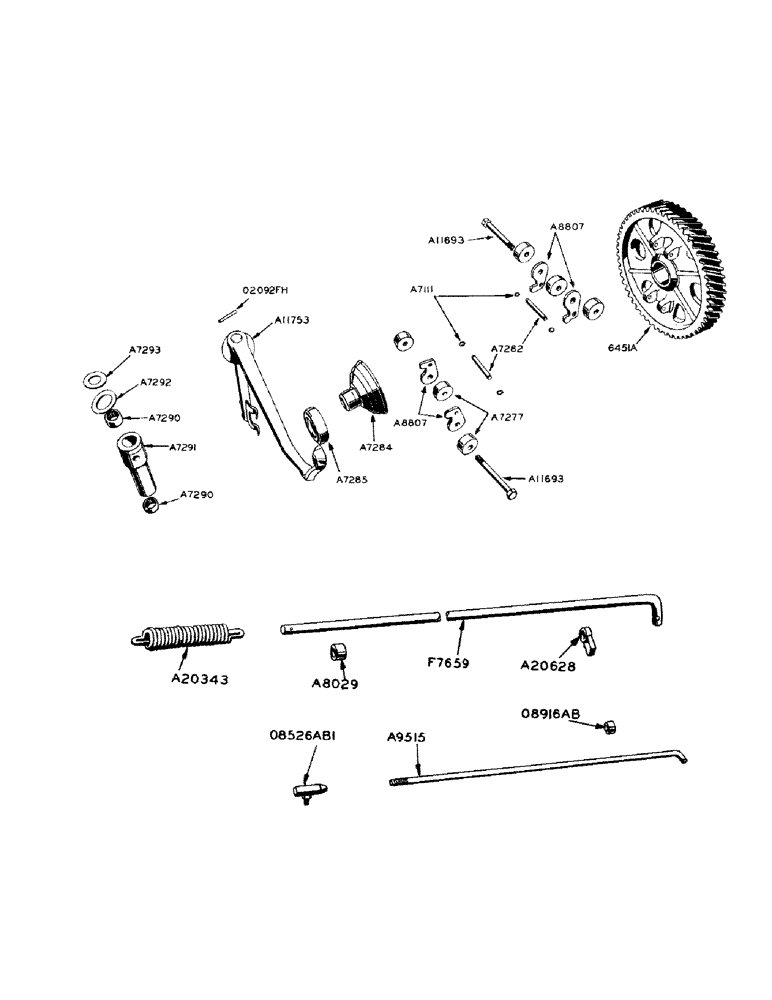

Запчасти Case IH 800 (146) - GOVERNOR (10) - ENGINE

A7111

SNAP RING,#25, Ext

Ring, Snap, , governor weight pin #25, Ext

4шт.

A7277

WEIGHT

- governor

6шт.

A7282

PIN,6.31mm OD x 47.63mm L

- governor weight, less snap rings

2шт.

A7284

SLEEVE - governor

1шт.

A7285

THRUST BEARING,1.0675" ID x 40574" OD x 5"

BEARING - thrust, governor (Aetna #10 or Nice #7043)

1шт.

A7290

NEEDLE BEARING,Needle, 14.29mm ID x 19.05mm OD x 12.7mm W

BEARING - needle, governor lever shaft (Torrington no. B-98)

2шт.

A7291

SLEEVE - governor, lever shaft bearing

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

A7292

SEAL

- governor lever hub

1шт.

A7293

WASHER

- governor lever bearing

1шт.

A8807

FINGERS - set of (4) for governor weight

1шт.

A11693

BOLT - governor weight

2шт.

5/16" N.F. hex. castellated nut

2шт.

1/16" x 1/2" cotter pin

2шт.

A11753

SHAFT - governor, with lever and finger

1шт.

3/32" x 3/4" cotter pin

1шт.

6451A

X

GEAR - camshaft

1шт.

No. 18 Woodruff key

1шт.

B138-96

ROLL PIN (3/16" x 1") for A11753 shaft

1шт.

A9515

ROD - governor lever to carburetor, throttle control hookup

1шт.

1/16" x 1/2" cotter pin, throttle control hookup

2шт.

No. 10 N.F. hex. machine screw, throttle control hookup

2шт.

A8029

COLLAR - throttle front rod stop, control hookup

1шт.

1/4" x 3/8" N.C. sq. hd. cup pt. set screw, throttle control hookup

1шт.

A20343

SPRING - governor, throttle control hookup

1шт.

A20628

LEVER - carburetor shutoff, throttle control hookup

1шт.

1/4" - 20 N.C. socket hd. cup pt. set screw, throttle control hookup

1шт.

F7659

ROD - throttle, front, control hookup

1шт.

08526AB1

JOINT - ball, governor lever, throttle control hookup

1шт.

No. 10 std. lockwasher, throttle control hookup

1шт.

08916AB

COLLAR - on A9515 rod, throttle control hookup

1шт.

1/4" - 20 N.C. socket hd. cup pt. set screw, throttle control hookup

1шт.
