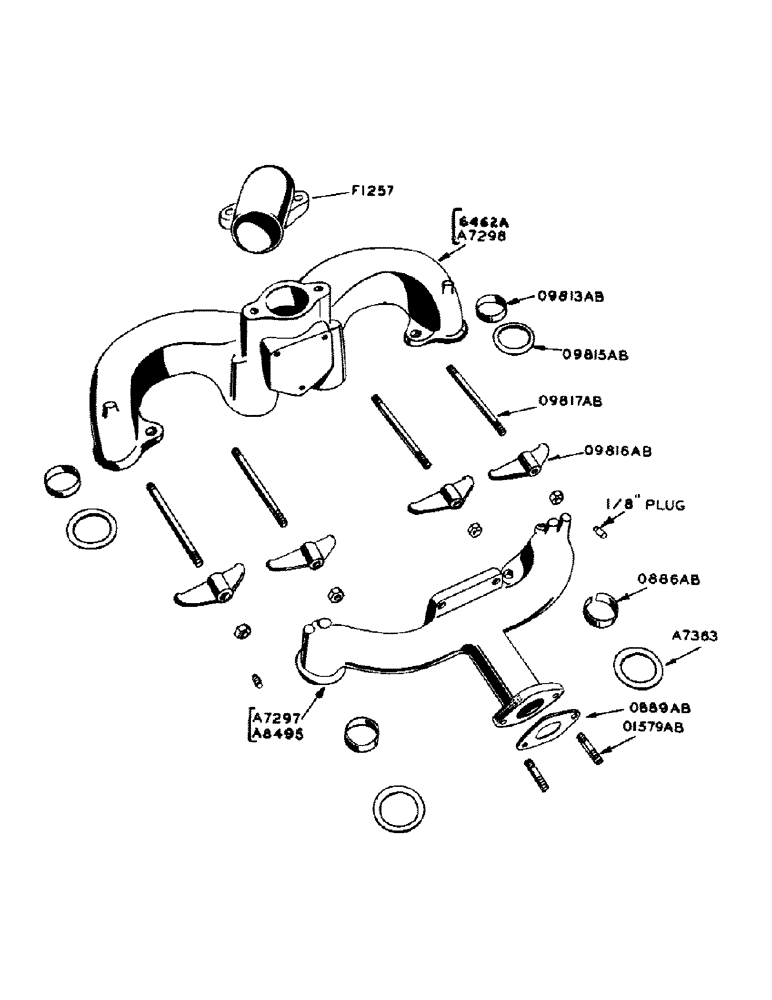

Запчасти Case IH 800 (144) - INTAKE AND EXHAUST MANIFOLD (10) - ENGINE

A7297

MANIFOLD - intake, gasoline (see A8495)

1шт.

3/8" x 1" N.C. hex. hd. bolt

3шт.

1/8" sq. hd. pipe plug

2шт.

A7298

MANIFOLD - exhaust, gasoline (see 6462A)

1шт.

A7363

MANIFOLD GASKET

- intake manifold (see A20152 gasket kit)

2шт.

A8495

MANIFOLD - intake, LP-gas (see A7297)

1шт.

3/8" x 1-3/4" N.F. hex. bolt w/nut and lockwasher

2шт.

1/8" sq. hd. pipe plug

2шт.

F1257

ELBOW - exhaust

1шт.

1/2" x 1" N.C. hex. bolt w/lockwasher

2шт.

6462A

MANIFOLD - exhaust, LP-gas (see A7298)

1шт.

0886AB

FERRULE - intake manifold

2шт.

0889AB1

GASKET - intake manifold to carburetor (see A20152 gasket kit)

1шт.

01579AB

STUD - carburetor to manifold (gasoline only)

2шт.

3/8" N.F. hex. nut w/lockwasher

2шт.

09813AB

FERRULE - exhaust manifold

4шт.

09815AB

GASKET - exhaust manifold (see A20152 gasket kit)

4шт.

09816AB

CLAMP - intake and exhaust manifold

4шт.

09817AB

STUD - intake and exhaust manifold

4шт.

7/16" N.F. hex. nut

4шт.

7/16" plain washer

2шт.
