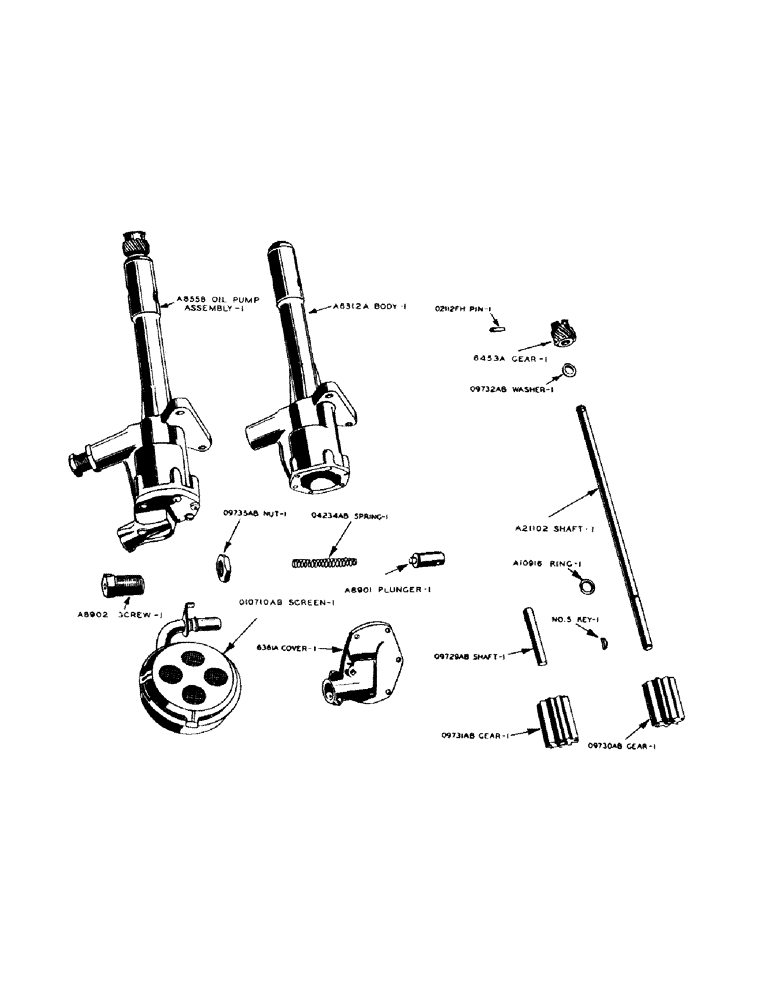

Запчасти Case IH 800 (142) - OIL PUMP (10) - ENGINE

A8558

PUMP, ENGINE OIL

PUMP - oil, assembly, less screen

1шт.

A8901

X

PLUNGER - oil pump relief

1шт.

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, oil pump relief

1шт.

A10916

RING, SNAP

SNAP RING - oil pump drive shaft

1шт.

A21102

SHAFT

- drive, oil pump

1шт.

A6312A

BODY - oil pump

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher

2шт.

6361A

COVER - oil pump body

1шт.

1/4" x 3/4" N.C. rhd. mach. screw w/lockwasher

5шт.

1/4" x 1-1/2" N.C. rhd. mach. screw w/lockwasher

1шт.

6453A

X

GEAR - oil pump drive, also drives distributor

1шт.

04234AB

SPRING - oil pump relief plunger

1шт.

09729AB

SHAFT - stub, oil pump

1шт.

09730AB

GEAR - oil pump with keyway

1шт.

No. 5 Woodruff key

1шт.

09731AB

GEAR - oil pump, without keyway

1шт.

09732AB

WASHER - thrust, oil pump drive gear

1шт.

09735AB

NUT - oil pump relief adjusting screw

1шт.

010710AB

SCREEN - oil pump, float-o-type

1шт.

3/32" x 1-1/2" cotter pin

1шт.

B138-94

ROLL PIN - oil pump drive gear (3/16" x 7/8")

1шт.
